GZT4-GRAY plug socket for R4 relay 856050

local index:
APG039RELP
Catalog No:
856050
Manufacturer: RELPOL
Depth [mm]: 42.5
Number of pins: 14
Installation: On the TH-35 rail
Price:
4,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 137 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

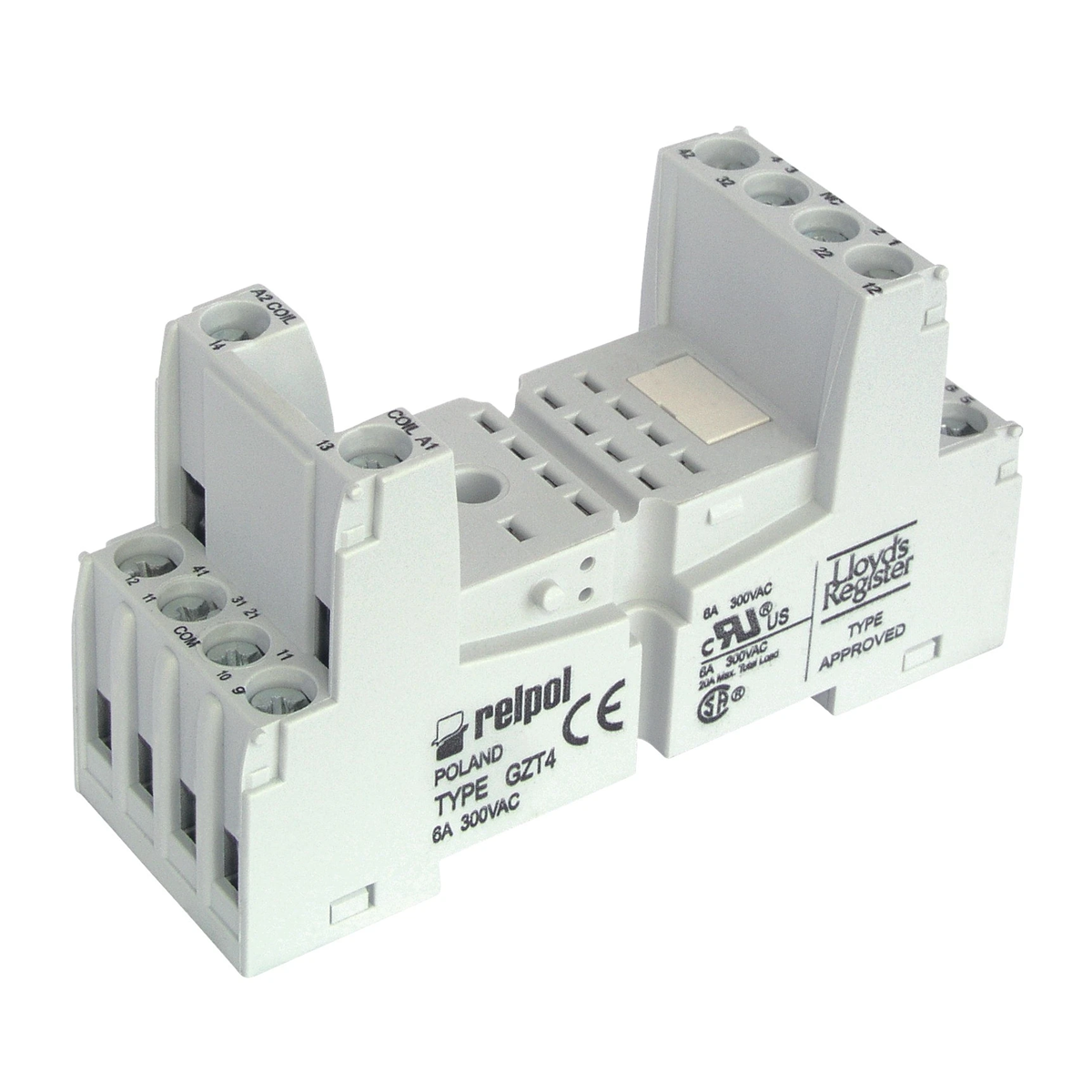

Plug-in socket, for R4 relay - width 27 mm. No circuit separation. Input / coil - terminals: (+)A1(13) - (-)A2(14). Output / contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8). Track load capacity: 6 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Dimensions of the GZT4 + R4 + GZT4-0040 set: 76.3 x 27 x 80 mm; set GZT4 + R4N + G4 1052: 76.3 x 27 x 66.6 mm. Note: a clamp type GZT4-0040, the so-called ejector, made of plastic, or a G4 1052 spring clamp. M... type signaling / surge protection modules can be installed in the socket; Set - IP 20.

Technical data

  • Depth [mm]
    42.5
  • Installation
    On the TH-35 rail
  • Current carrying capacity [A]
    6
  • Height [mm]
    76.3
  • PKWIU
    27.12.40.0
  • Number of pins
    14
  • Rated voltage [V]
    300
  • Width [mm]
    27
  • Connection type
    screw connection

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Height
    302 mm
  • Depth
    175 mm
  • Material plate thickness door/cover
    3 mm
  • RAL-number
    7035
  • Housing material
    Plastic
  • With mounting plate
    No
  • Degree of protection (IP)
    IP67
  • Impact strength
    IK10
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Width
    302 mm
  • Material plate thickness cabinet
    3.5 mm
  • Colour
    Grey
  • Extension possible
    Yes
  • Surface protection
    Untreated
  • Suitable for outdoor use
    Yes
  • Degree of protection (NEMA)
    12
  • Circuit integrity
    None
