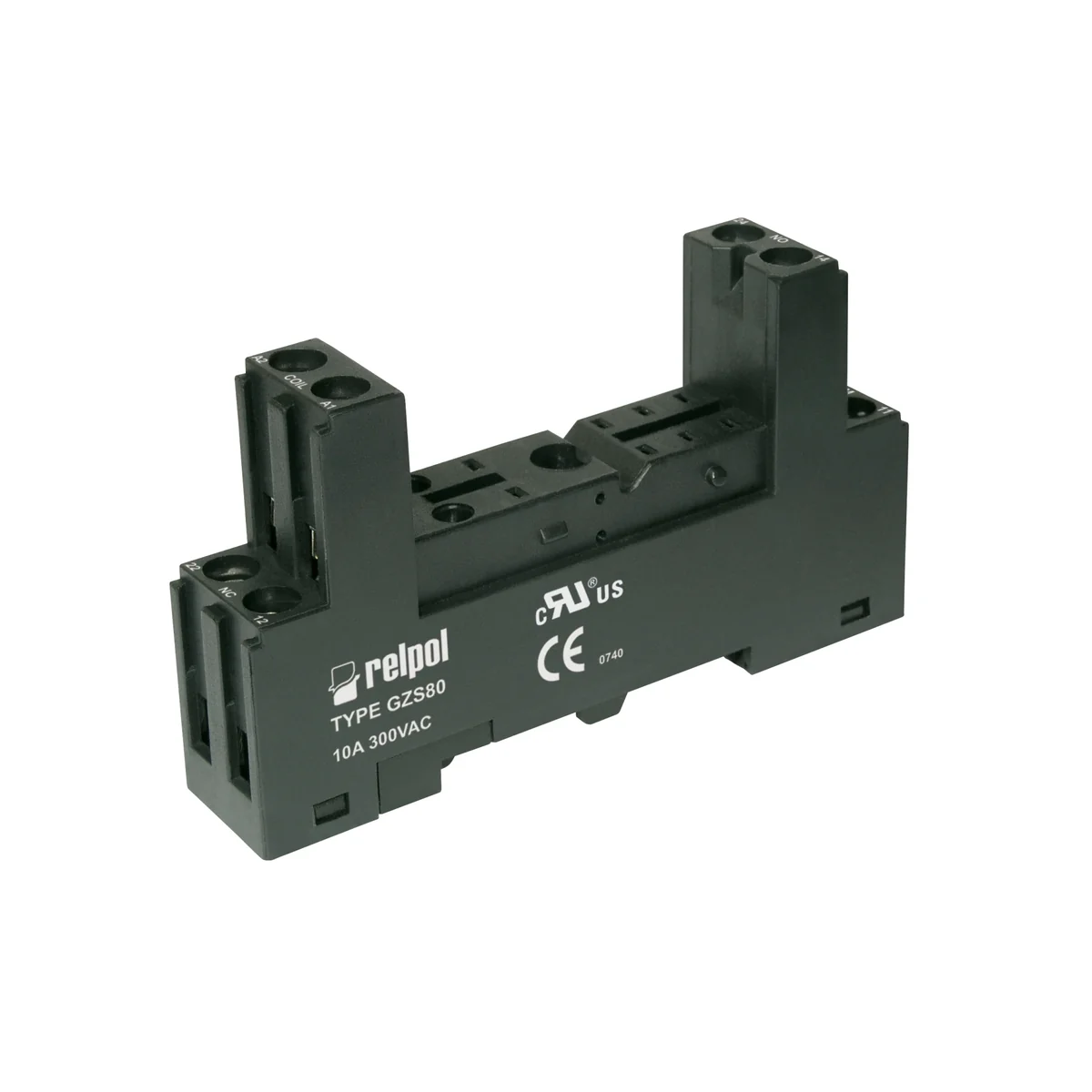

GZS80 plug socket grey 2613849

local index:
APG029RELP
Catalog No:
2613849
Manufacturer: RELPOL
Depth [mm]: 76.8
Color: Gray
Installation: On the TH-35 rail
Price:
5,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 265 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Plug-in socket GZS80 for relays: RM84, RM85, RM87L, RM87P.

  • Without circuit separation.
  • Input / coil - terminals: A1, A2.
  • Outputs / contacts - terminals: 11-12-14; 21-22-24; (Note: RM85 - the relay creates a galvanic connection between the socket terminals: 11 with 21, 12 with 22, 14 with 24. RM85 - contact loads above 10 A require bridging of the screw terminals: 11 with 21, 12 with 22, 14 with 24. Load capacity of the track without a bridge: 10 A / 300 V AC).
  • Mounting on a 35 mm rail or on a mounting plate with an M3 screw.
  • Note: a clamp with a clamp must be ordered separately for the socket plastic ejector type: GZS-0040 - relay 15.7mm high; GZS-0025 - relay 26 mm high. Signaling / surge protection modules type M... .

Technical data

  • Depth [mm]
    76.8
  • Installation
    On the TH-35 rail
  • Width [mm]
    15.8
  • Color
    Gray
  • How to connect
    With screw terminals
  • Height [mm]
    42.5
