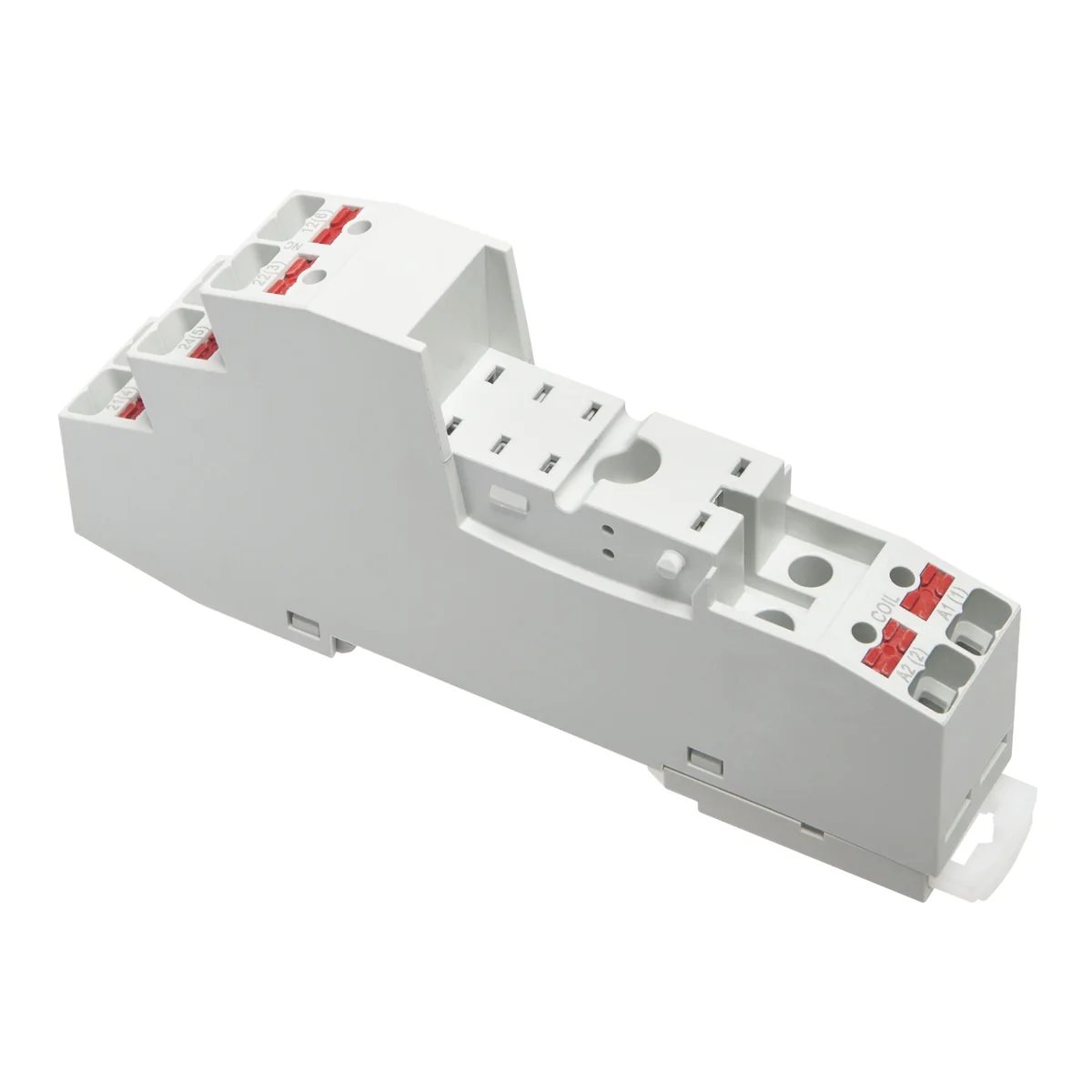

GZP80 socket with Push-in terminals for RM84 RM85 RM87L RMP84 RMP85 864325

local index:
APG042RELP
Catalog No:
864325
Price:
94,57 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push-in sockets for RM84, RM85, RM85 inrush, RM85 105 °C sensitive, RM87L, RM87L sensitive, RM87P, RM87P sensitive, RMP84, RMP85, mounting on a 35 mm rail (according to EN 60715) or on a panel ( 1 M3 screw), one current path 12 A / 300 V AC, two current paths 8 A / 300 V AC, pitch 5 mm, max. conductor cross-section: without insulated sleeve 2 x 1.5 mm2 / with insulated sleeve 2 x 1 mm2, wire stripping length 8...10 mm, dimensions 97 x 15.9 x 45.9(75.8) mm, weight 46 g
