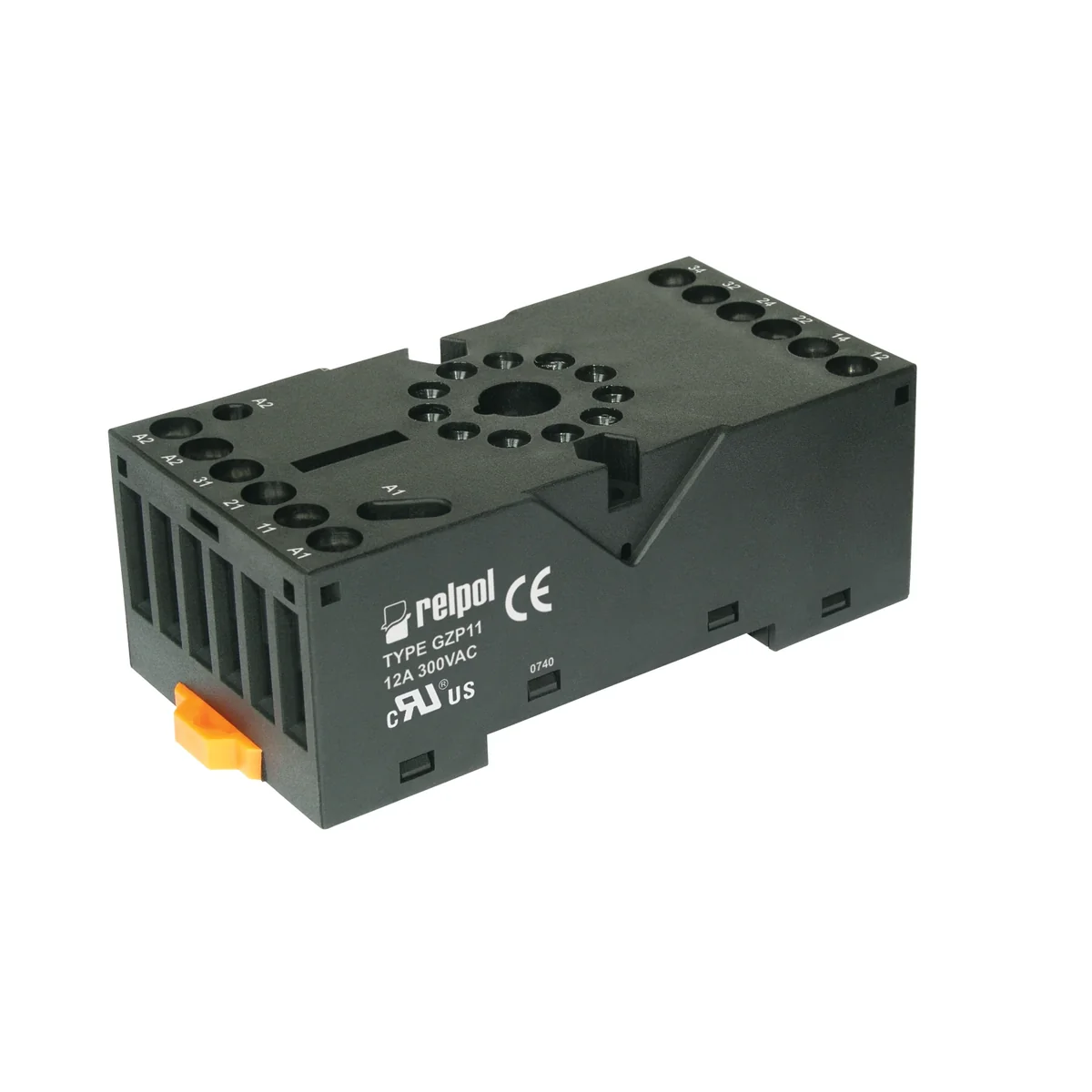

GZP11 plug-in socket for R15 3P relays (socket version) 2613506

GZP11 plug-in socket for R15 3P relays (socket version) - black, width 38.2 mm. No circuit separation. Input / coil - terminals: (+)A1(2), (?)A2(10) - duplicated. Outputs / contacts - terminals: 11(1) - 12(4) - 14(3); 21(6) - 22(5) - 24(7); 31(11) - 32(8) - 34(9). Track load capacity - 12 A / 300 V AC. Dimensions: 73 x 38.2 x 27.2mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Set dimensions: GZP11 socket + R15 3P relay + GZP-0054 clamp: 73 x 38.2 x 85.6 mm. Note: a spring clamp type GZP-0054 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). A COM3 timer module can be installed in the socket. For IP20 set.
