GZ8 plug socket for R15 2P relay 592012

local index:
APG038RELP
Catalog No:
592012
Manufacturer: RELPOL
Color: Gray
Rated voltage [V]: 300
Current carrying capacity [A]: 10
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
1,86 €
gross / pcs.
(including VAT 23%)
Last lowest price: 1,85 € gross
Base price: 7,55 € gross -75%
Delivery in 3h
Accessible 10 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

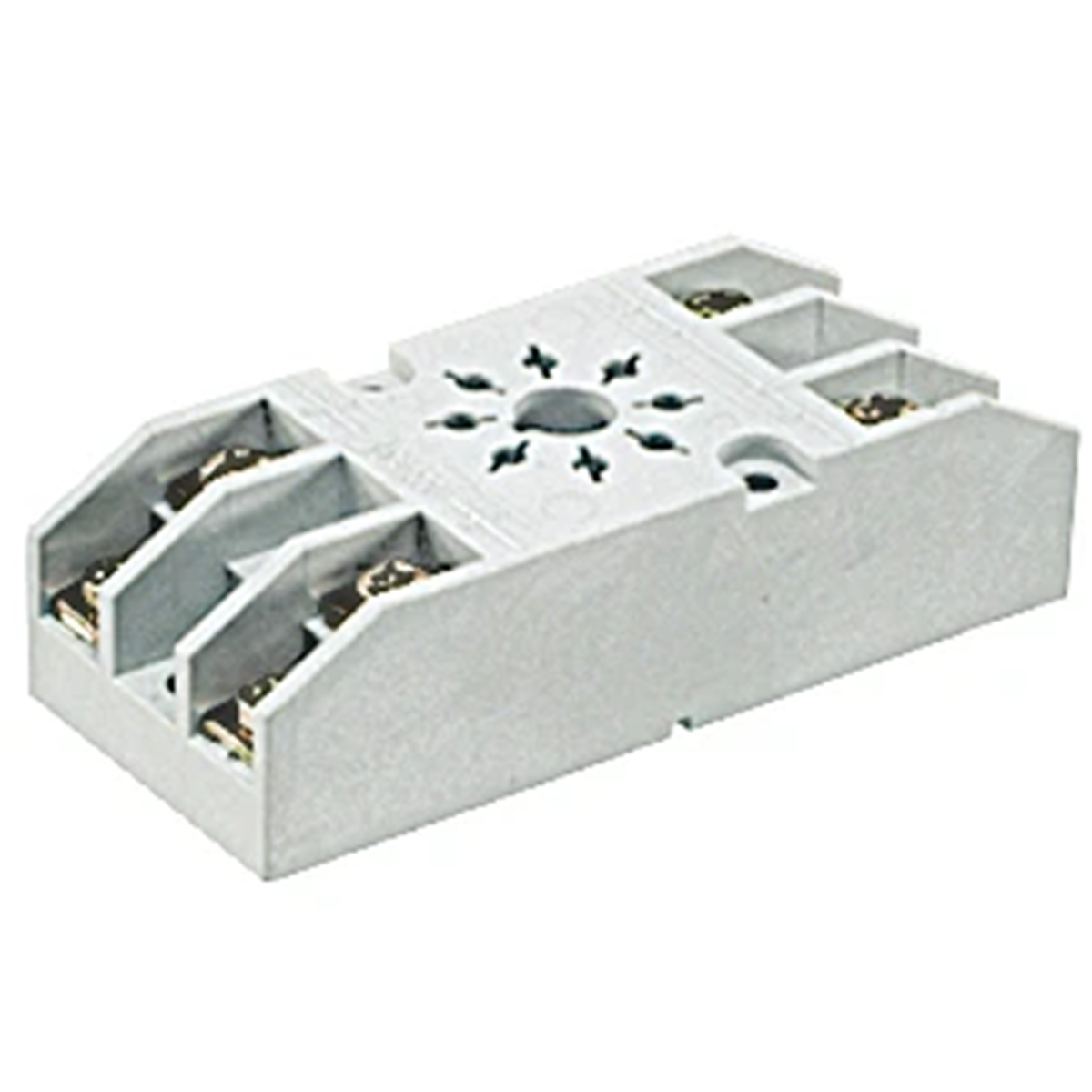

Plug-in socket, for R15 2P relay (socket version) - gray color, width 35, 5 mm.

Without circuit separation.

Input / coil - terminals: (+)A1(2) - (-)A2(7).

Output / contacts - terminals: 11(1)-12(4)-14(3) ); 21(8)-22(5)-24(6).

Track load: 10 A / 300 V AC.

Dimensions: 82, 8 x 35, 5 x 22.5 mm.

Mounting on a mounting plate with two M3 screws.

Dimensions of the set: GZ8 socket + R15 2P relay + GZ 1050 clamp: 82, 8 x 35, 5 x 80, 9 mm.

Note: a GZ 1050 type spring clamp must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Color
    Gray
  • Current carrying capacity [A]
    10
  • Width [mm]
    35.5
  • PKWIU
    22.29.29.0
  • Rated voltage [V]
    300
  • Level of security
    IP20
  • Accurate color
    Gray
