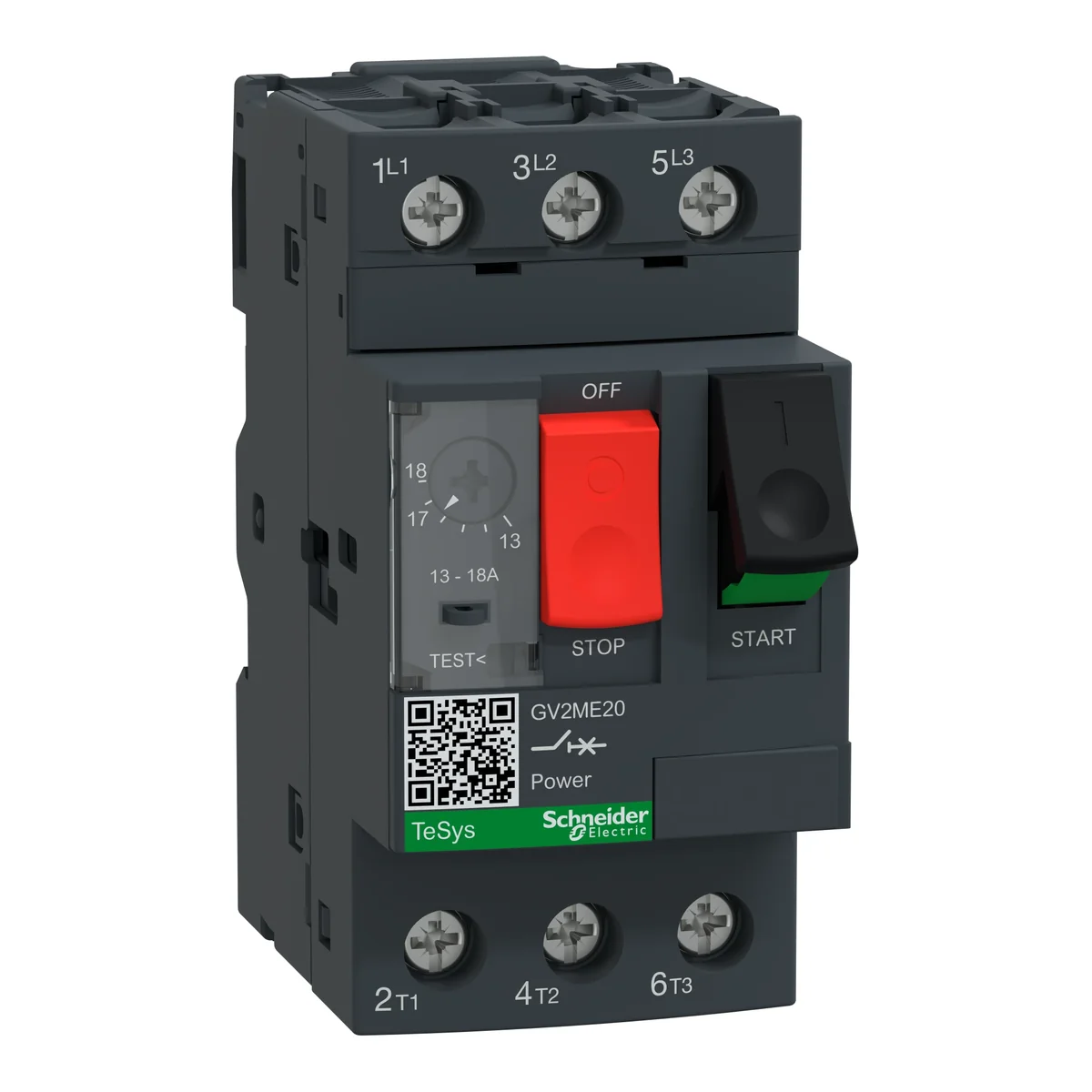

GV2ME motor circuit breaker with push-button drive I=13-18A PL box terminals GV2ME20AP

local index:
ALI046SCHN
Catalog No:
GV2ME20AP
EAN code:
3606489607708
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP20
Price:
57,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

GV2ME motor circuit breaker with push-button drive I=13-18A PL box terminals

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    13 ... 18 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    18 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    223 ... 223 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Rated operation power at AC-3, 230 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    15 kA
  • Height
    89 mm
  • Depth
    78.2 mm
