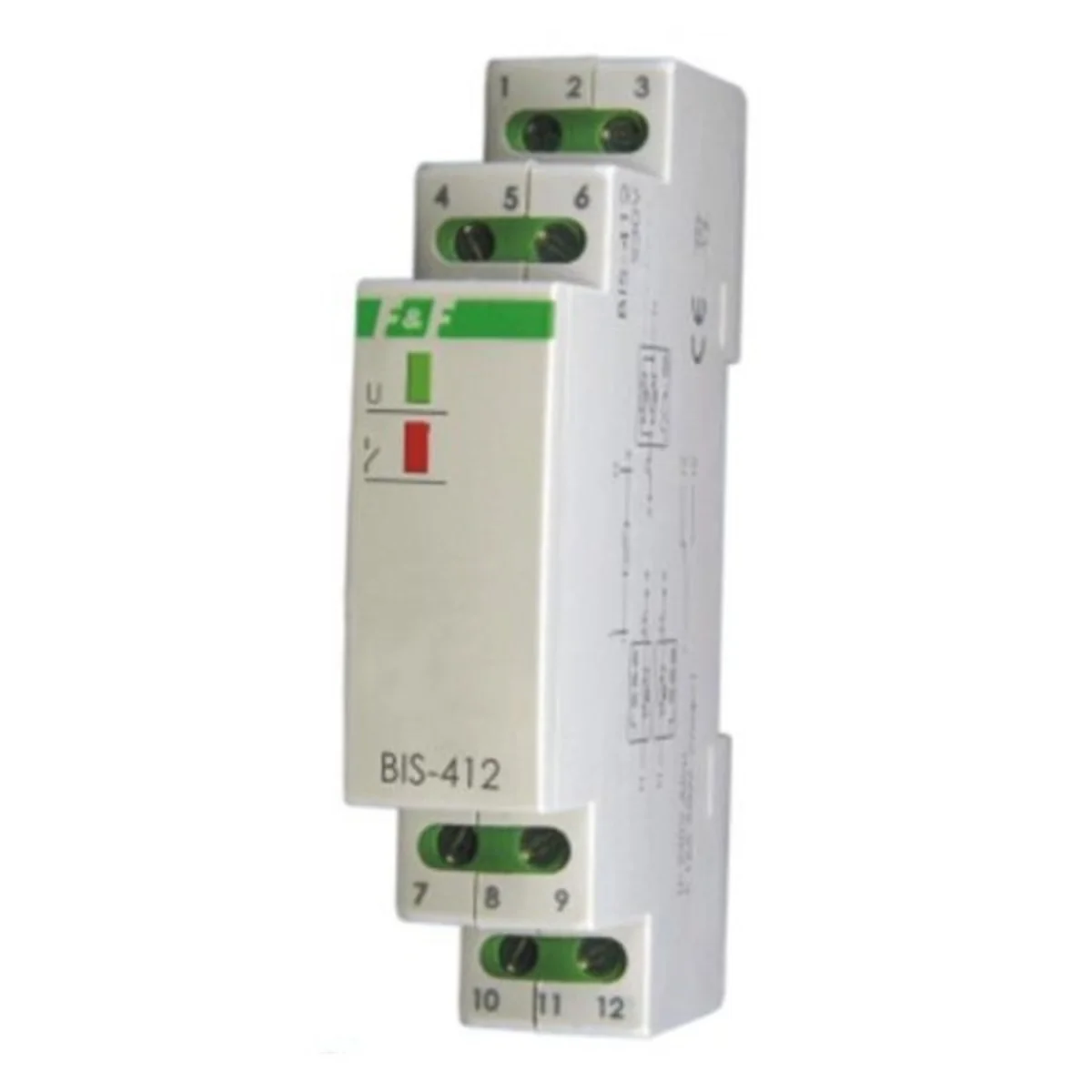

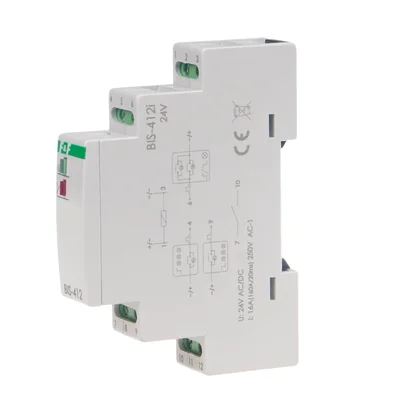

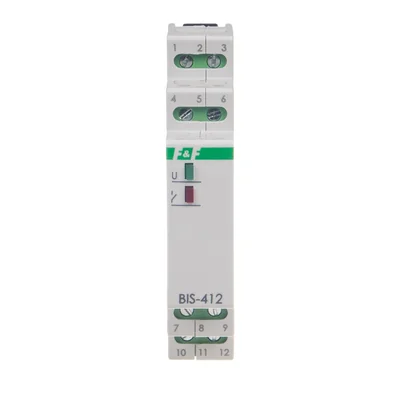

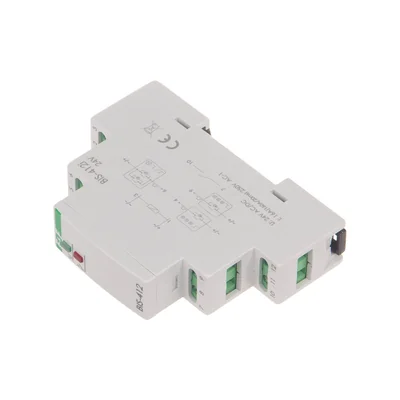

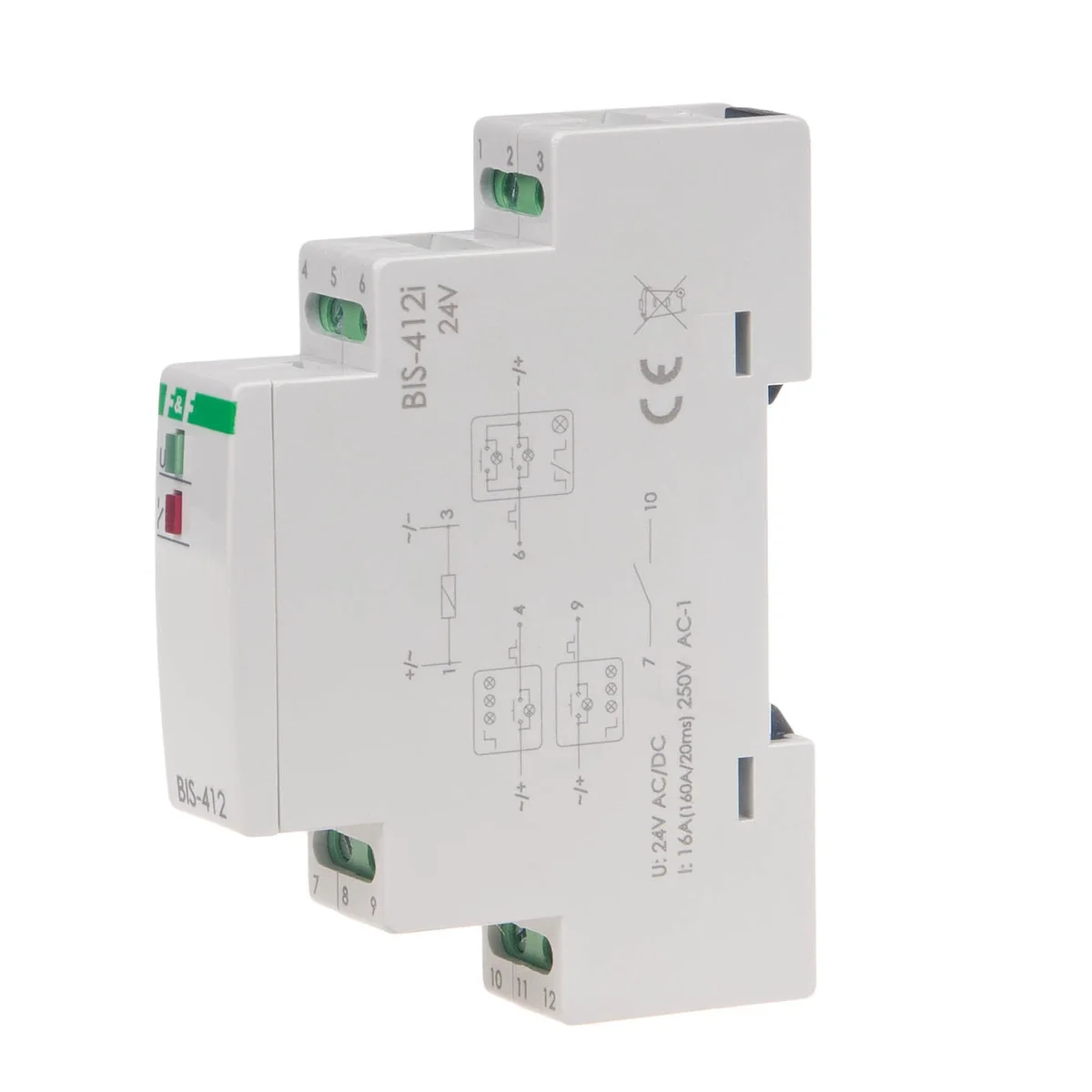

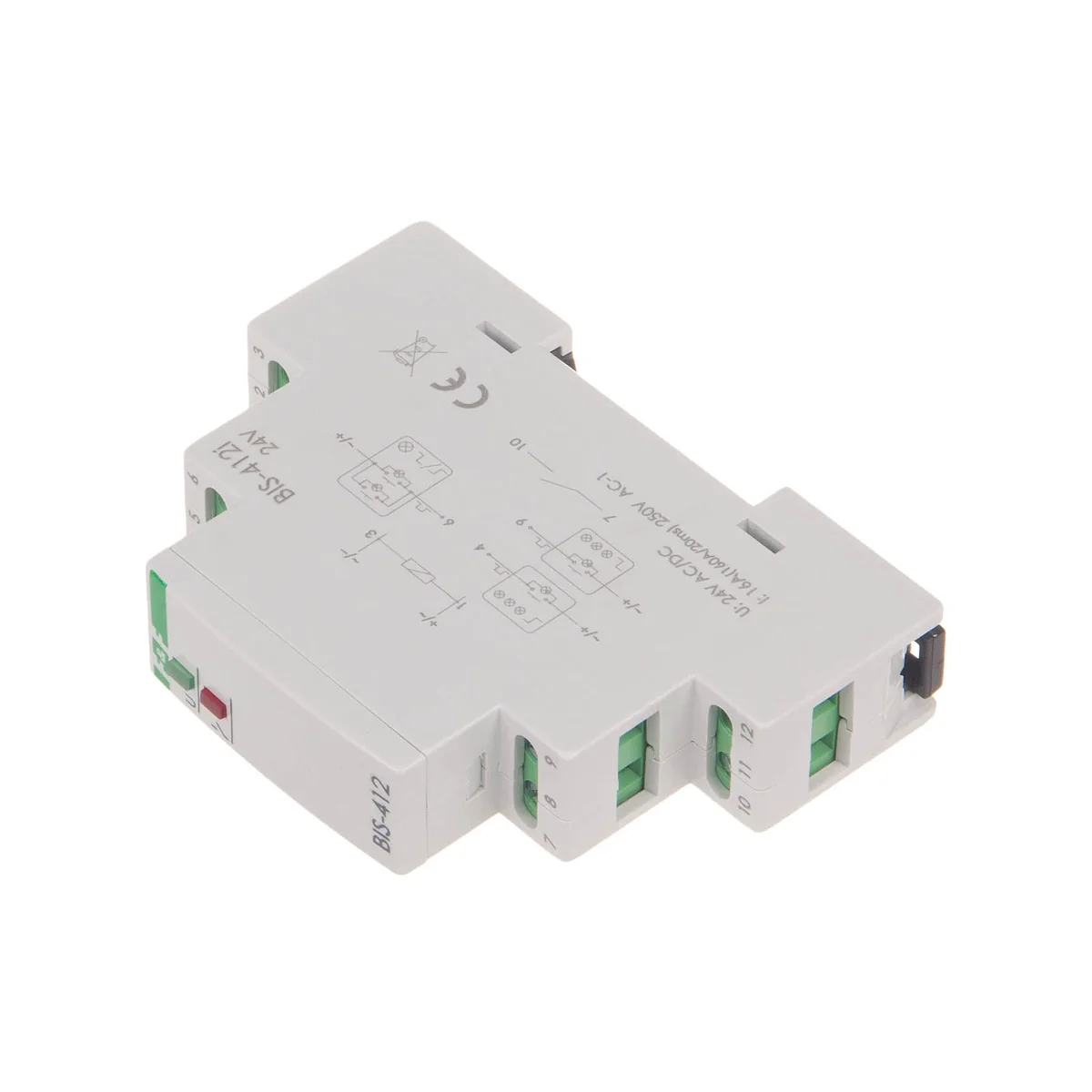

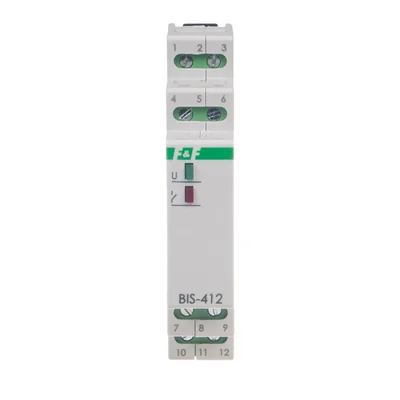

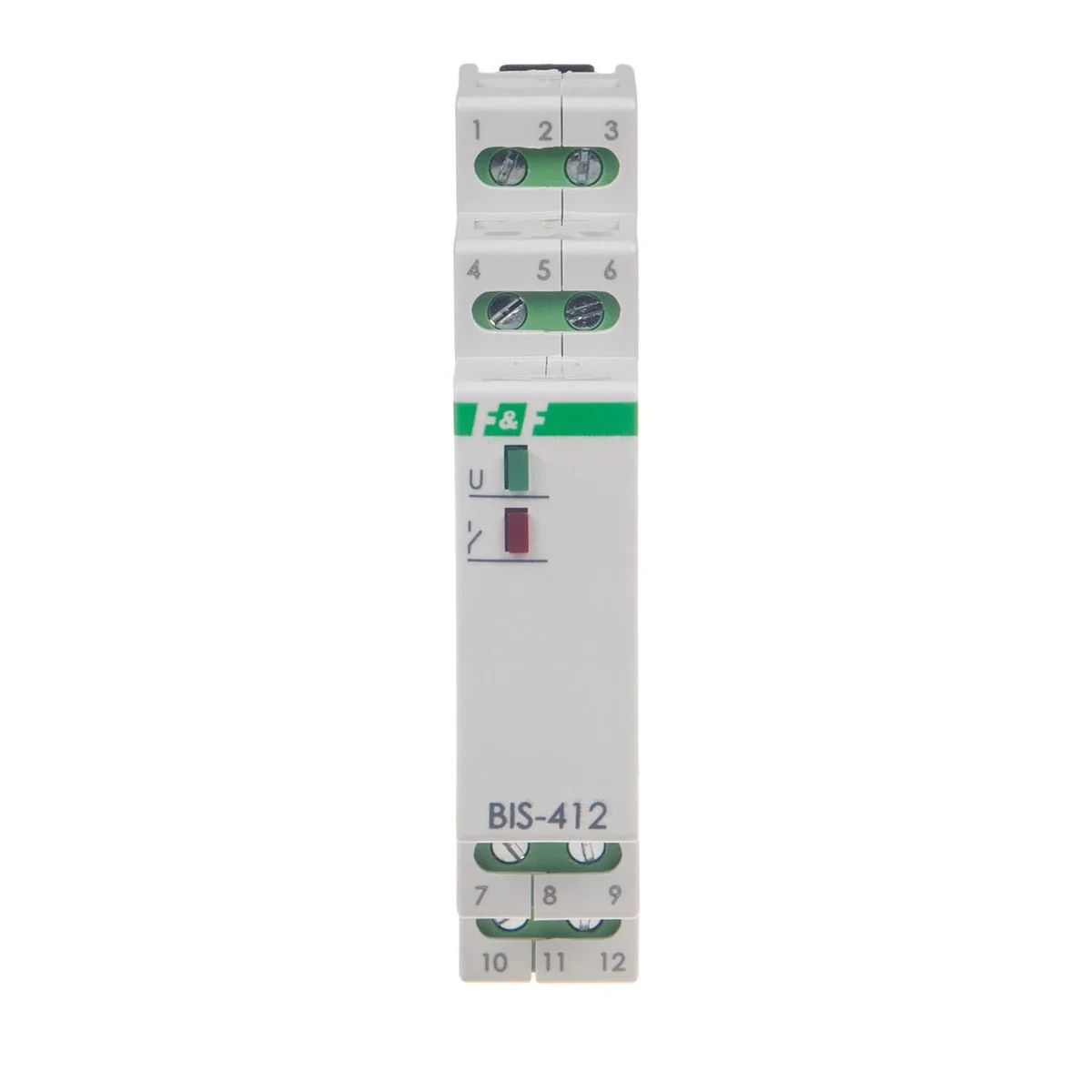

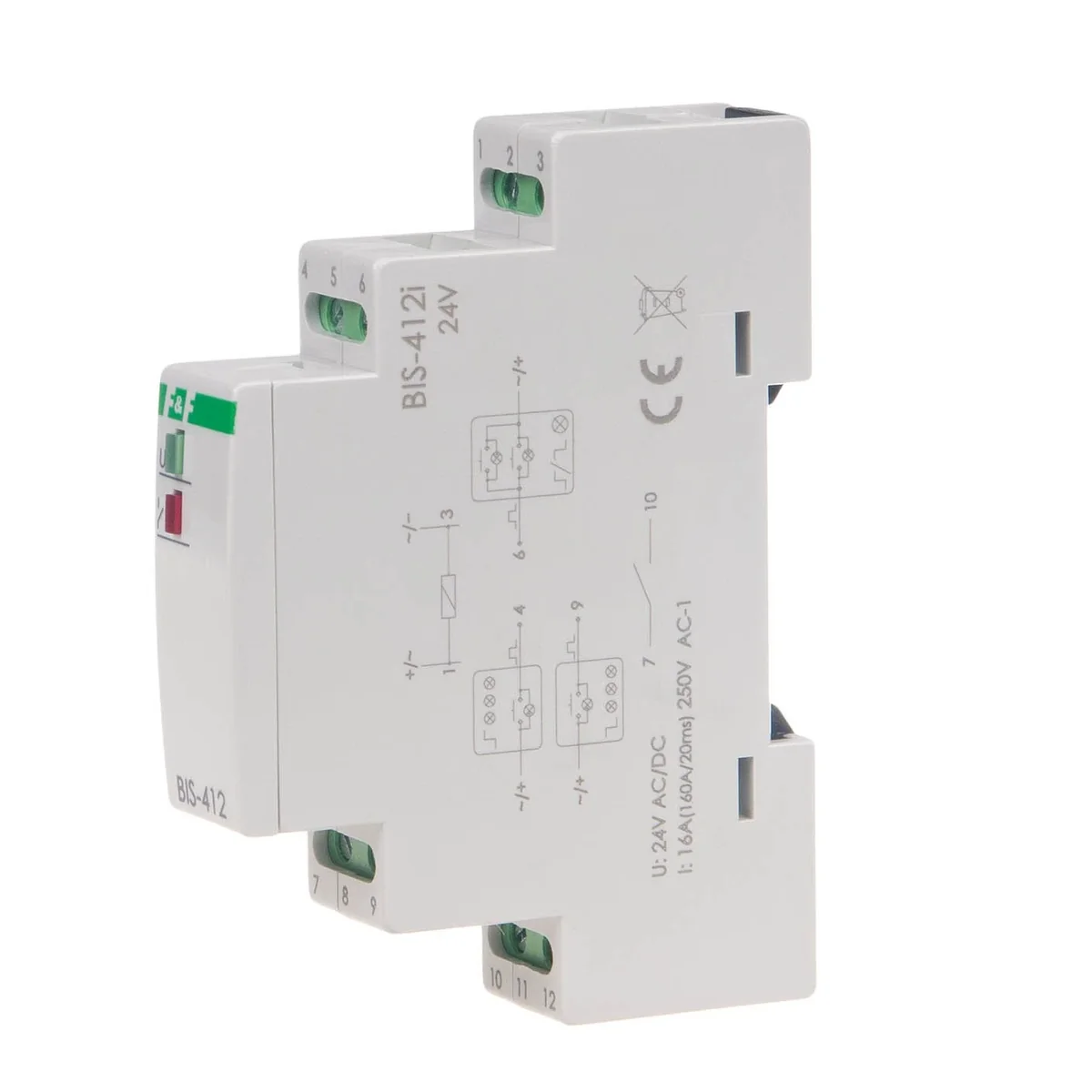

Group bistable relay On TH-35 DIN rail with inrush relay 160A/20ms 24V BIS-412-LED-24V
local index:
APC023FIFQ
Catalog No:
BIS-412-LED-24V
EAN code:
5908312598664
Manufacturer:
F&F
Installation: On the TH-35 rail
Level of security: IP20
Working temperature [°C]: -25÷50
Price:
27,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The electronic bistable impulse relay is designed to work in a group system. A single relay allows for switching on and off the controlled receiver after each current impulse caused by pressing the momentary (bell) button of the local control. The group system allows you to turn off or turn on all receivers connected to individual relays using the central control buttons
Technical data
-
InstallationOn the TH-35 rail
-
Working temperature [°C]-25÷50
-
Level of securityIP20
-
PKWIU27.12.23.0
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings1
-
Control voltage 19 ... 30 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage9 ... 30 V
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth0 mm
-
Type of control voltage 1AC/DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC/DC
-
Suitable for manual operationNo
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,073 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
