el12 Automation Circuit breakers, disconnectors Switches up to 160A GA125A switch disconnector, with gray and black handle, 125A, AC21A
GA125A switch disconnector, with gray and black handle, 125A, AC21A

Click on the photo to enlarge

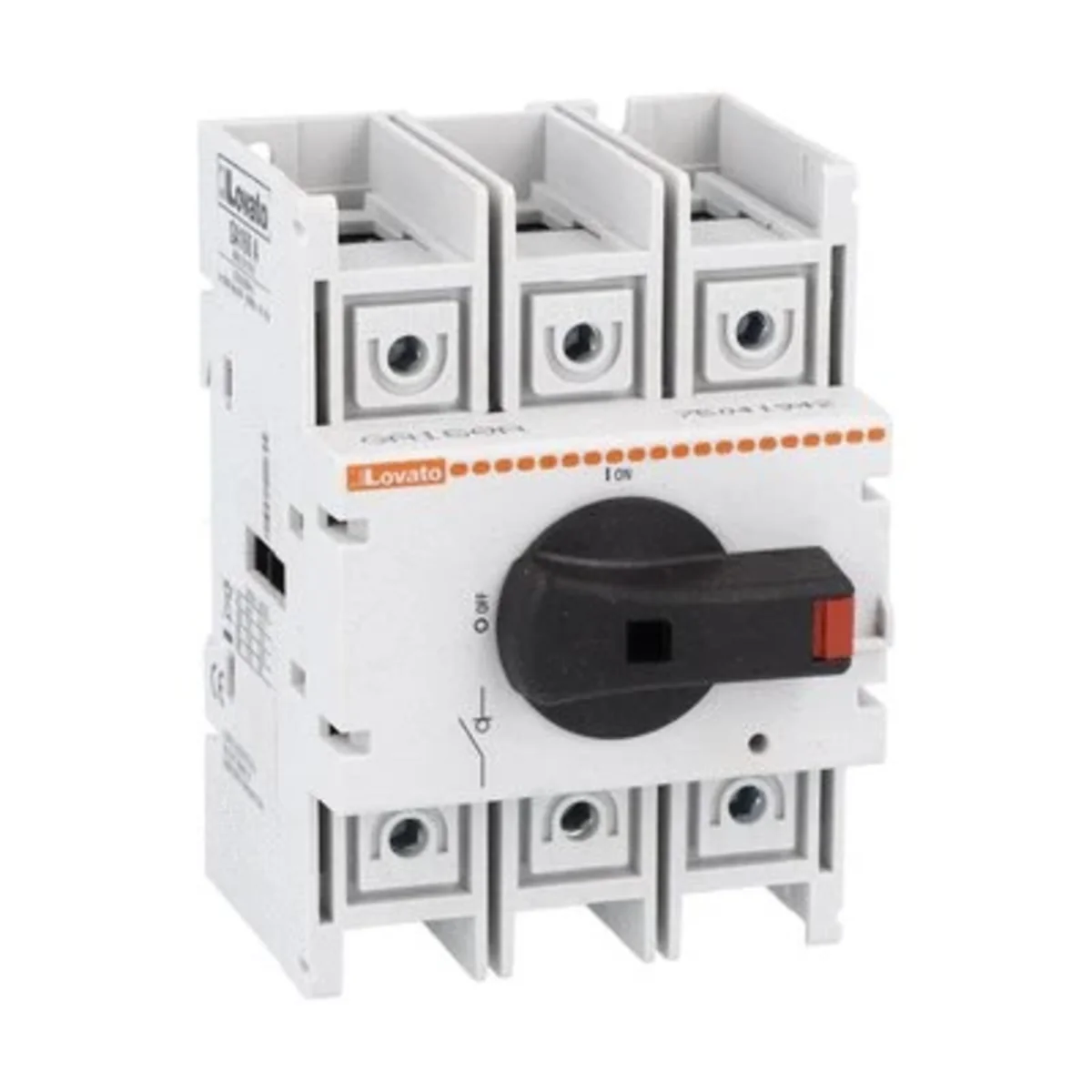

GA125A switch disconnector, with gray and black handle, 125A, AC21A
LOVATO

GA125A switch disconnector, with gray and black handle, 125A, AC21A GA125A

local index:
ALI010LOVA
Catalog No:
GA125A
EAN code:
8013975177648
Price:
63,66 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

GA125A switch disconnector, with gray and black handle, 125A, AC21A
Print the product sheet Report an error

Technical data

  • Thermal current [A]
    125
  • Rated operational current [A]
    125

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    yes
  • Version as reversing switch
    no
  • Rated operating voltage
    400 ... 690 V
  • Rated permanent current at AC-23, 400 V
    125 A
  • Rated operation power at AC-3, 400 V
    55 kW
  • Rated operation power at AC-23, 400 V
    55 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    yes
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Frame clamp
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    125 A
  • Rated permanent current at AC-21, 400 V
    125 A
  • Rated short-time withstand current lcw
    2.5 kA
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Black
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP20
