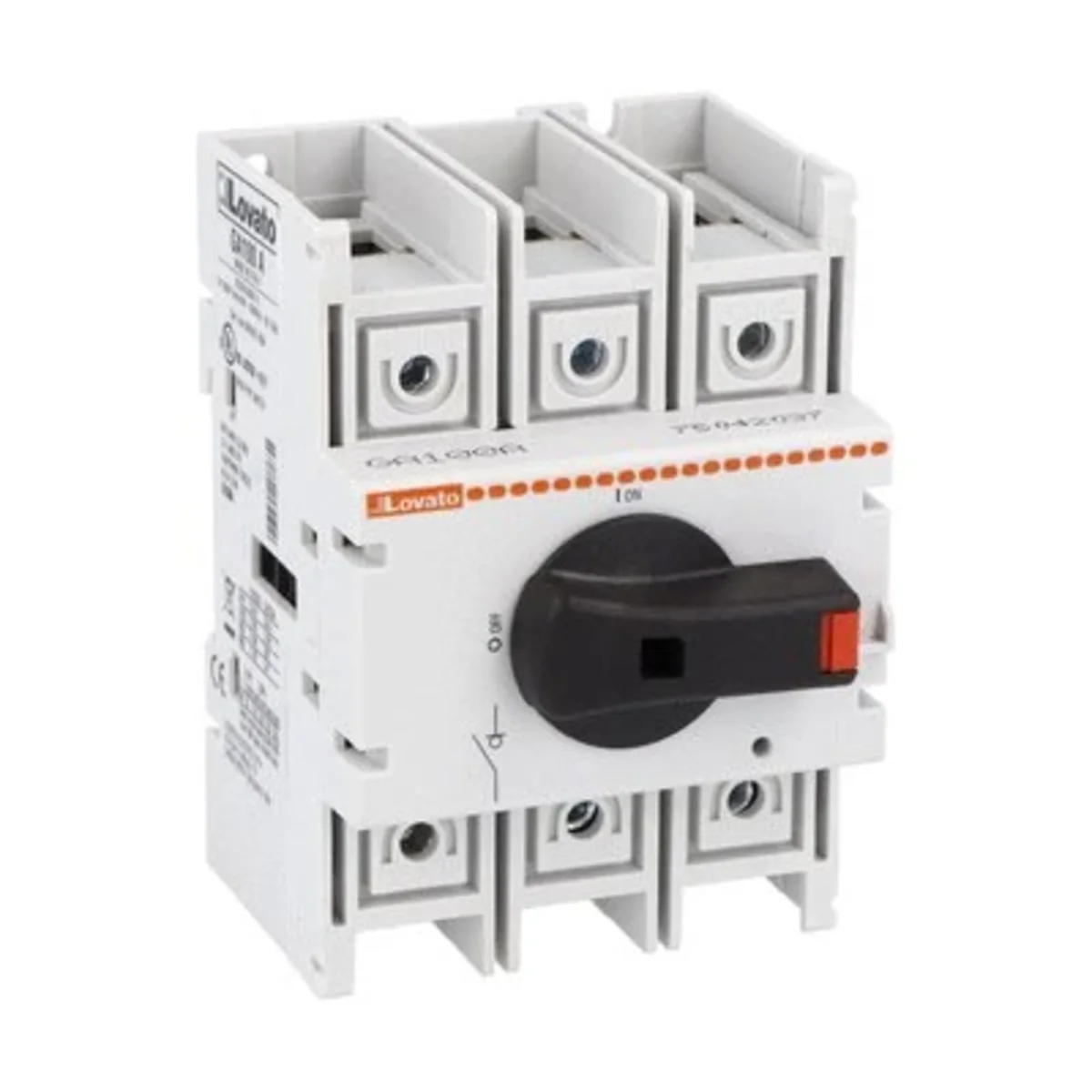

GA100A switch disconnector, with gray and black handle, 100A, AC21A GA100A

local index:
ALI016LOVA
Catalog No:
GA100A
EAN code:
8013975177631
Manufacturer: LOVATO
Thermal current [A]: 100
Rated operational current [A]: 100
Price:
66,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

GA100A switch disconnector, with gray and black handle, 100A, AC21A

Technical data

  • Thermal current [A]
    100
  • PKWIU
    27.33.11.0
  • Rated operational current [A]
    100

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    yes
  • Version as reversing switch
    no
  • Rated operating voltage
    400 ... 690 V
  • Rated permanent current at AC-23, 400 V
    100 A
  • Rated operation power at AC-3, 400 V
    55 kW
  • Rated operation power at AC-23, 400 V
    55 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    yes
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Turn button
  • Type of electrical connection of main circuit
    Frame clamp
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    100 A
  • Rated permanent current at AC-21, 400 V
    100 A
  • Rated short-time withstand current lcw
    2.5 kA
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Black
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,388
Width (m) 0,079
Length (m) 0,103
Depth (m) 0,080
