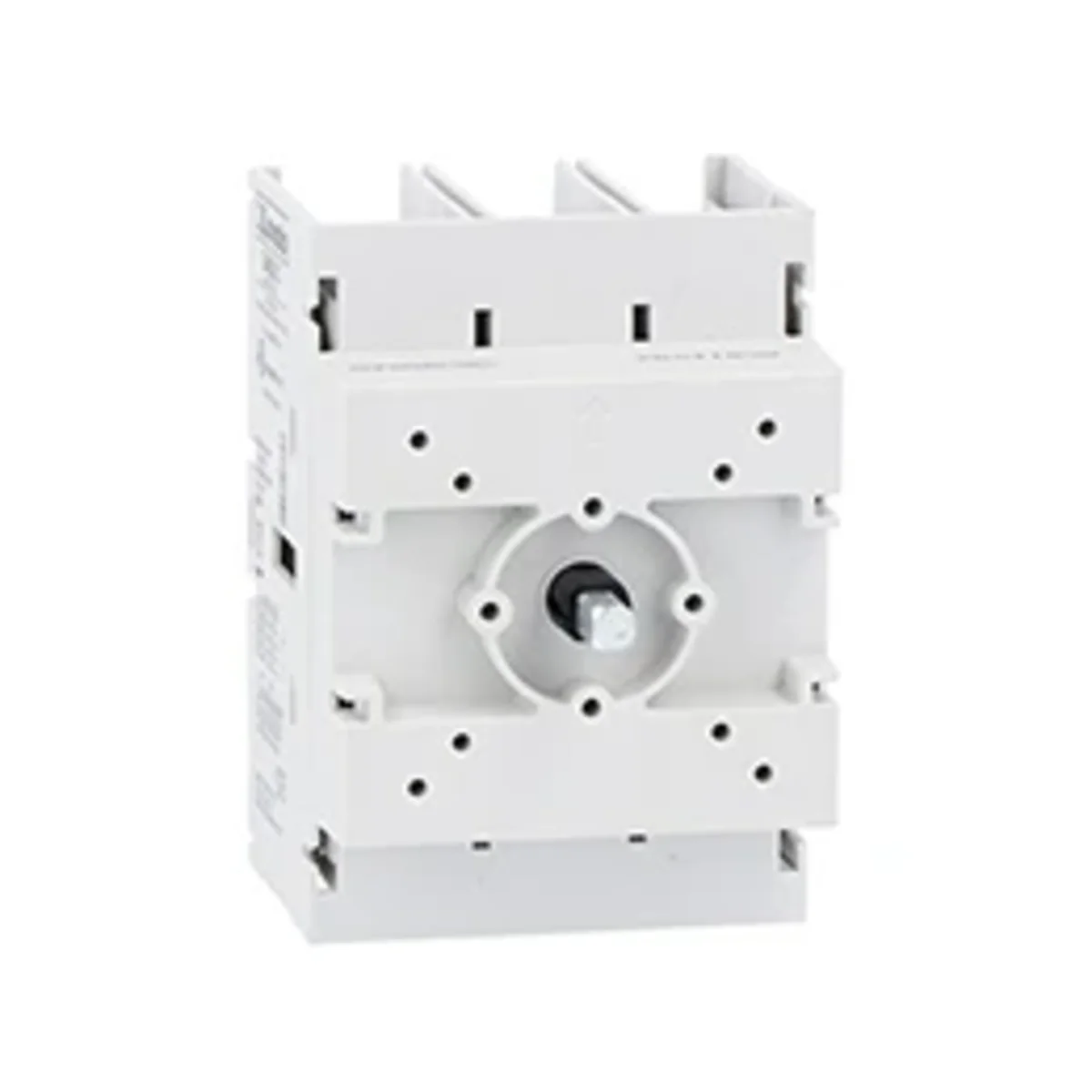

GA080C GA080C switch disconnector, without knob, 80A, AC21A GA080C
Lokaler Index:
ALA045LOVA
Katalognummer:
GA080C
EAN-Code:
8013975177709
Hersteller:
LOVATO
Preis:
260,81 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
-
PKWIU27.33.11.0
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Rated operating voltage400 ... 690 V
-
Rated permanent current at AC-23, 400 V80 A
-
Rated operation power at AC-3, 400 V45 kW
-
Rated operation power at AC-23, 400 V45 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu80 A
-
Rated permanent current at AC-21, 400 V80 A
-
Rated short-time withstand current lcw2.5 kA
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitFrame clamp
Hersteller-Details
-
HerstellerLOVATO ELECTRIC S.P.A.
-
Adresse24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,406 |
| Breite (m) | 0,079 |
| Länge (m) | 0,103 |
| Tiefe (m) | 0,080 |
