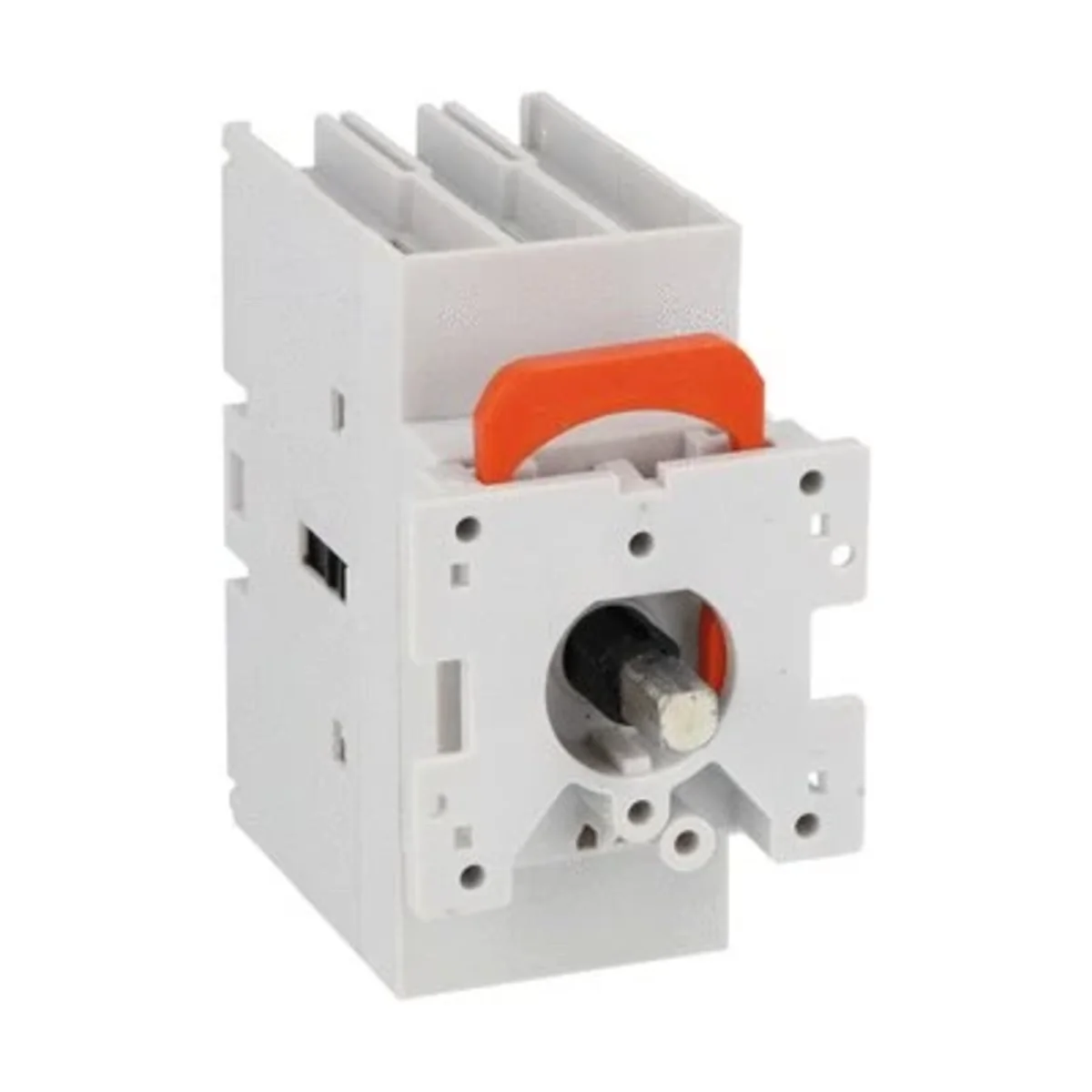

GA040C GA040C switch disconnector, without knob, 40A, AC21A GA040C
Índice local:
ALA043LOVA
Número de catálogo:
GA040C
Código EAN:
8013975177686
Fabricante:
LOVATO
Precio:
154,24 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Datos técnicos
-
PKWIU27.33.11.0
Otros datos técnicos
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Rated operating voltage400 ... 690 V
-
Rated permanent current at AC-23, 400 V40 A
-
Rated operation power at AC-3, 400 V18.5 kW
-
Rated operation power at AC-23, 400 V18.5 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu40 A
-
Rated permanent current at AC-21, 400 V40 A
-
Rated short-time withstand current lcw0.8 kA
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitFrame clamp
Detalles del fabricante
-
FabricanteLOVATO ELECTRIC S.P.A.
-
Dirección24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
-
Email
Empaquetado a granel
| una especie de paquete | Sztuka |
| Cantidad | 1 uds. |
| Peso (kg) | 0,170 |
| Ancho (m) | 0,047 |
| Longitud (m) | 0,080 |
| Profundidad (m) | 0,098 |
