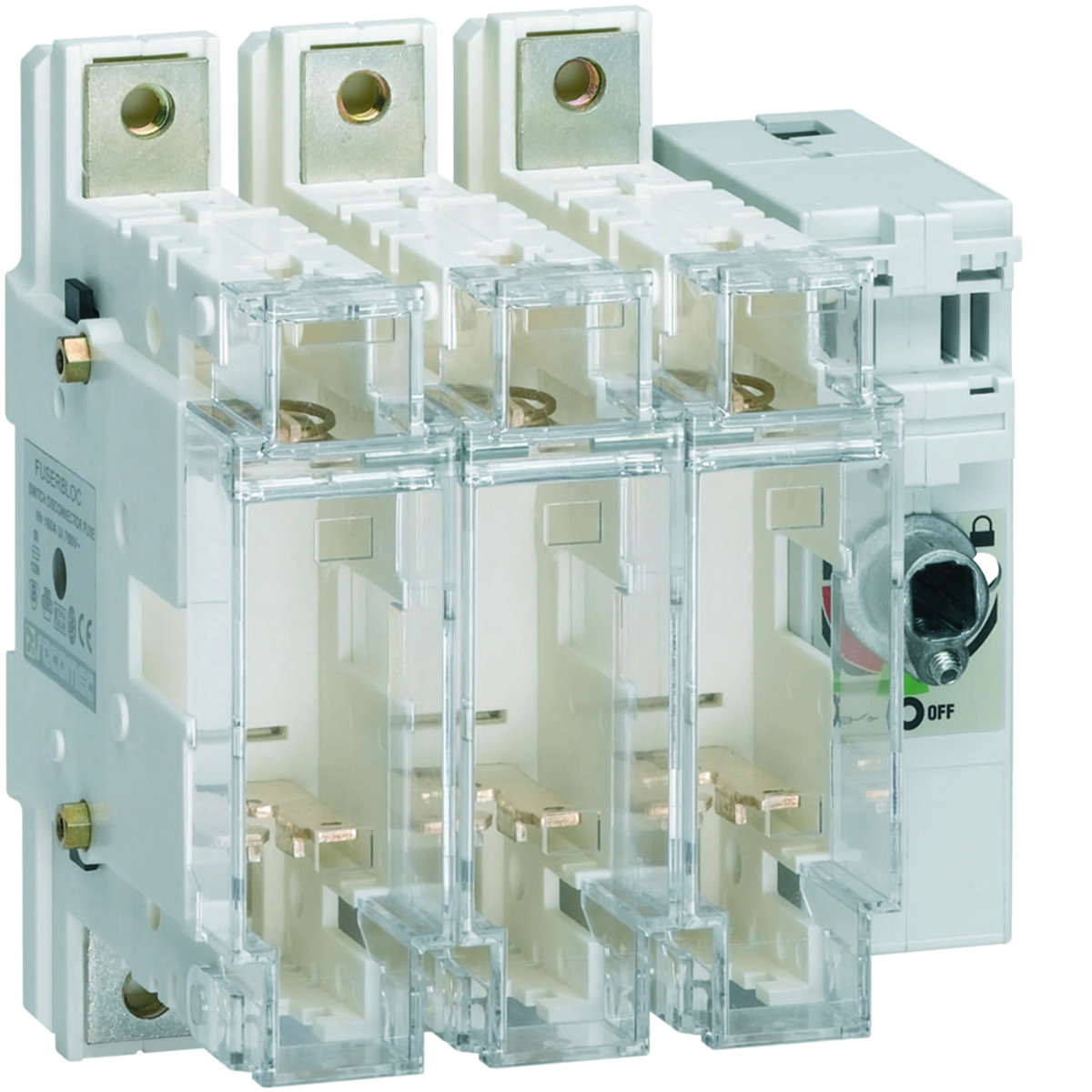

Fuse switch with voltage Fig. 3P 160A NH00 HFD316

local index:
ALB034HAGE
Catalog No:
HFD316
EAN code:
3250613130343
Manufacturer: HAGER
Number of poles: 3
Width [mm]: 148
Height [mm]: 162
Price:
301,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse switch with voltage Fig. 3P 160A NH00

Technical data

  • Number of poles
    3
  • Height [mm]
    162
  • Width [mm]
    148
  • PKWIU
    27.12.23.0

Other technical data

  • Version as main switch
    Yes
  • Max. rated operation voltage Ue AC
    415 V
  • Rated operation power at AC-23, 400 V
    72 kW
  • Suitable for fuses
    NH00
  • With error protection
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for busbar mounting
    Yes
  • Position control element
    Front side
  • Motor drive integrated
    Yes
  • Degree of protection (IP), front side
    IP55
  • Version as safety switch
    Yes
  • Rated permanent current Iu
    160 A
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of poles
    3
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for front mounting
    Yes
  • Type of control element
    Door coupling rotary drive
  • Motor drive optional
    Yes
  • Version as emergency stop installation
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 2 pcs. 48 pcs.
Weight (kg) 1,839 1,840 4,060 122,440
Width (m) 0,148 0,170 0,315 0,800
Length (m) 0,116 0,155 0,215 1,010
Depth (m) 0,268 0,215 0,360 1,200
