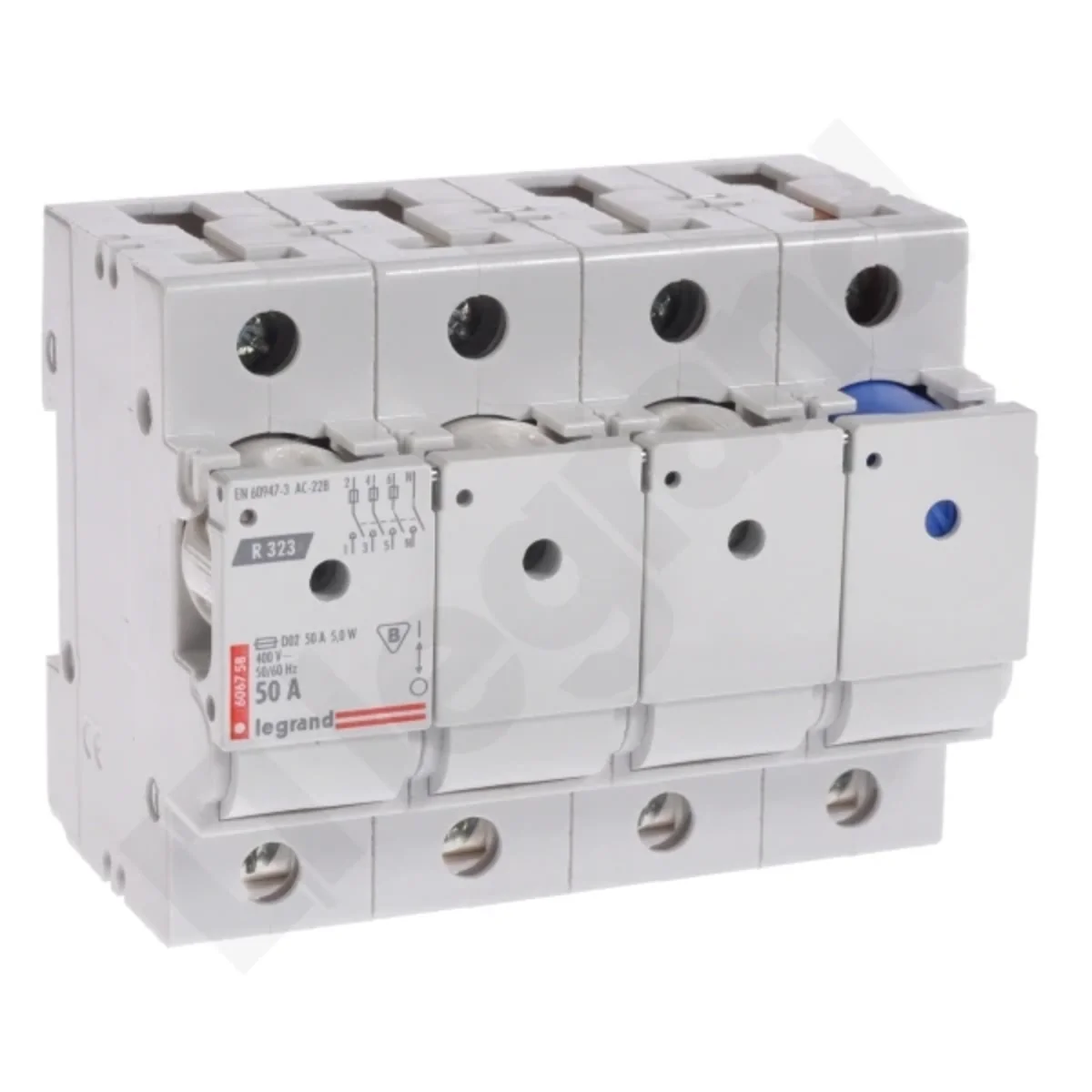

Fuse switch R 323 50 A 3P+N Switch 606758

Indice locale:

ALI260LEGR

Numero di catalogo:

606758

Clicca sulla foto per ingrandire

Produttore: LEGRAND

Rated current [A]: 50

Vedi la descrizione completa

Prezzo:

1 054,34 zł

gross / pezzi

(inclusa IVA 23%)

fino a 2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore

Descrizione del prodotto

Equipped with fuse-links type D 02 (20 - 63 A)
Characteristics of fuse-links gG, gL

Three-pole with disconnectable neutral N 400 V~
Rated current : 50 A
Width in 17.5 mm modules: 6
Type of insert: D 02

Dati tecnici

Rated current [A]

50

PKWIU

27.12.23.0

Altri dati tecnici

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Rated operating voltage

12 ... 400 V
Rated permanent current at AC-21, 400 V

50 A
Switching power at 400 V

20 kW
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

Yes
Type of control element

Toggle
Type of electrical connection of main circuit

Screw connection

Version as maintenance-/service switch

No
Version as emergency stop installation

No
Max. rated operation voltage Ue AC

400 V
Rated permanent current Iu

50 A
Rated short-time withstand current lcw

50 kA
Conditioned rated short-circuit current Iq

50 kA
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Grey
Interlockable

Yes
Degree of protection (IP), front side

IP40
