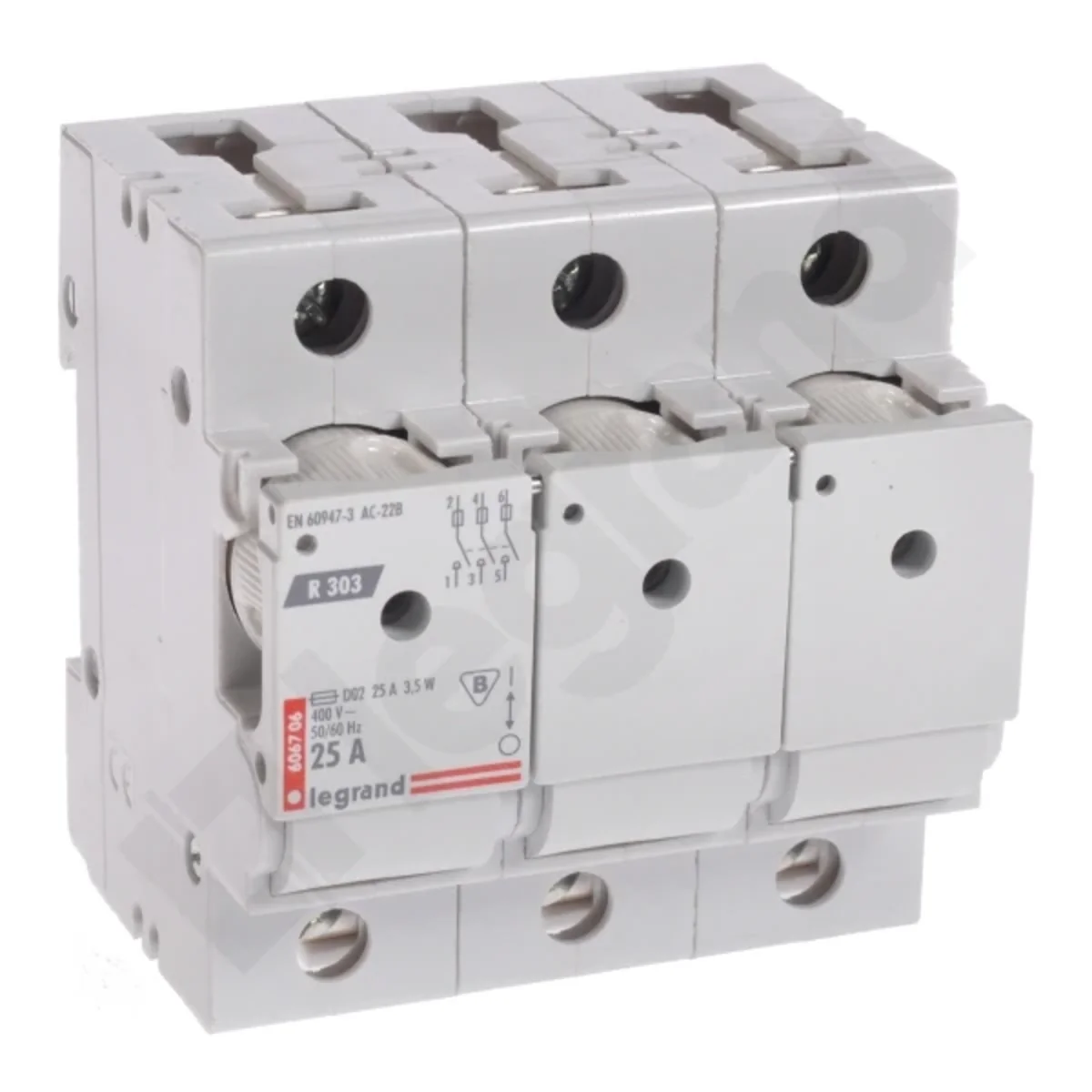

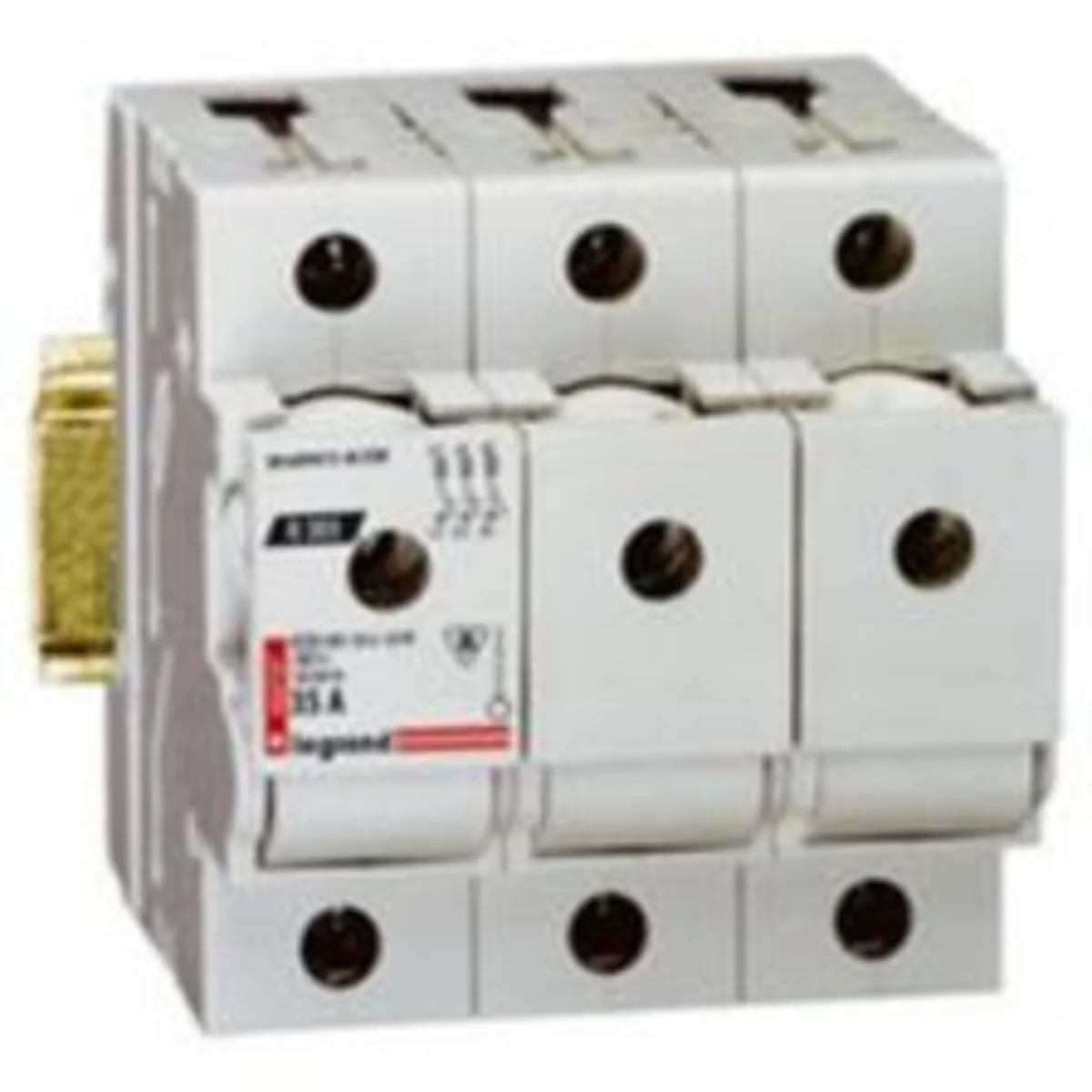

Fuse switch, R 303 25 A 3P 606706

local index:
ALB307LEGR
Catalog No:
606706
Manufacturer: LEGRAND
Number of poles: 3
Price:
94,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

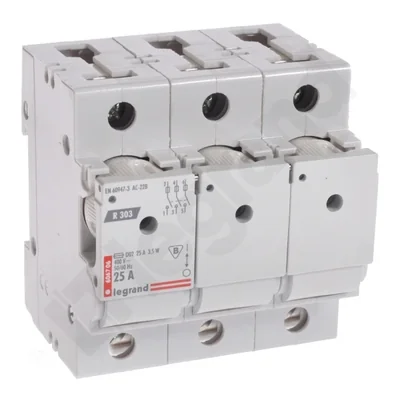

Fuse switch, R 303 25 A 3P

Technical data

  • Number of poles
    3
  • PKWIU
    27.12.23.0

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Rated operating voltage
    12 ... 400 V
  • Rated permanent current at AC-21, 400 V
    25 A
  • Switching power at 400 V
    10 kW
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection
  • Version as maintenance-/service switch
    no
  • Version as emergency stop installation
    no
  • Max. rated operation voltage Ue AC
    400 V
  • Rated permanent current Iu
    25 A
  • Rated short-time withstand current lcw
    50 kA
  • Conditioned rated short-circuit current Iq
    50 kA
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Grey
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP40
