Fuse switch R 301 63 A 1P 606609
local index:
ALB111LEGR
Catalog number:
606609
Price:
268,20 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

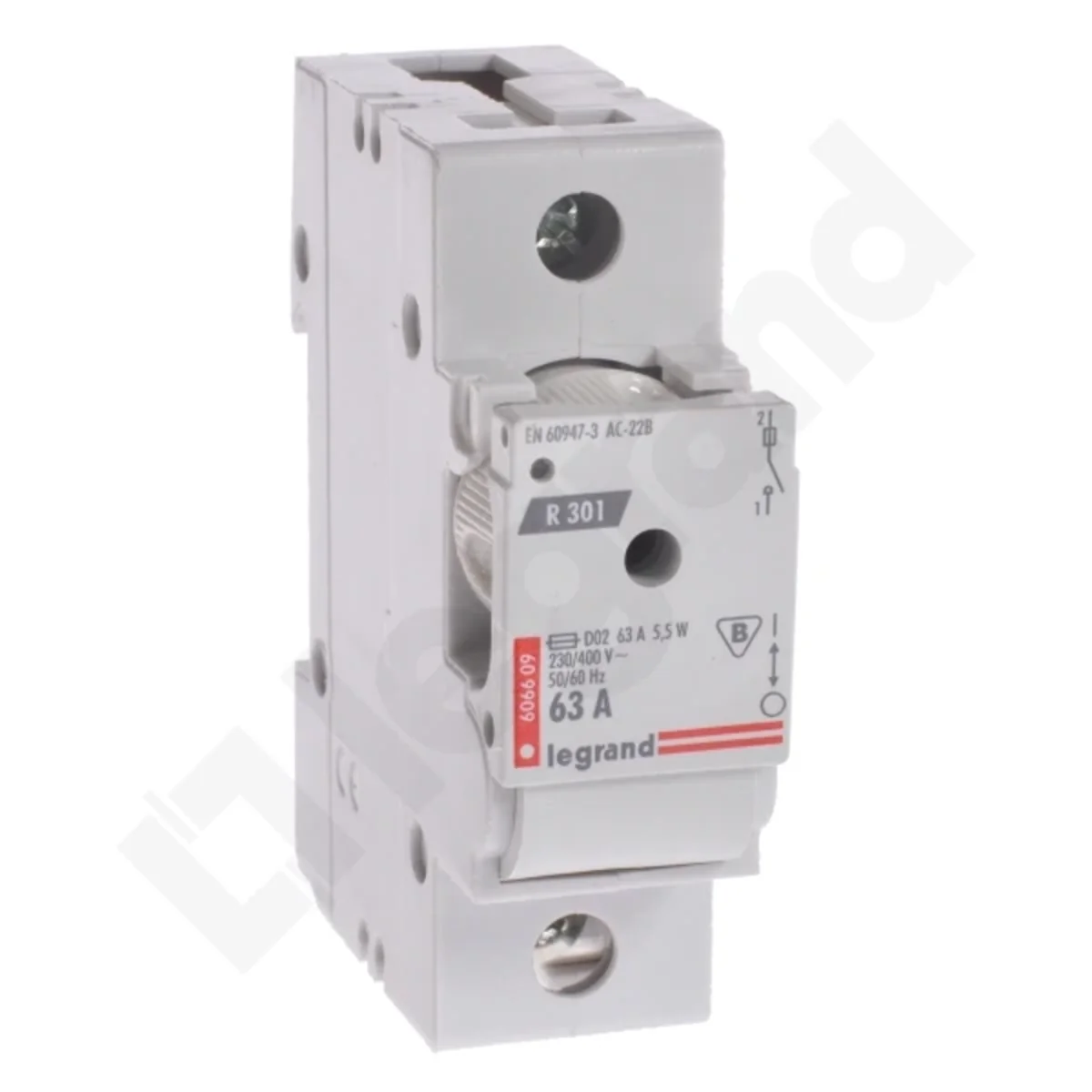

Fuse switch R 301 63 A 1P
Technical data
-
Number of modules1.5
-
Rated current [A]63
-
Number of modules1.5
-
Rated voltage [V]230
-
Cartridge typeD 02
-
PKWIU27.12.23.0
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage12 ... 400 V
-
Rated permanent current at AC-21, 400 V63 A
-
Switching power at 400 V25.2 kW
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementToggle
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu63 A
-
Rated short-time withstand current lcw50 kA
-
Conditioned rated short-circuit current Iq50 kA
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
