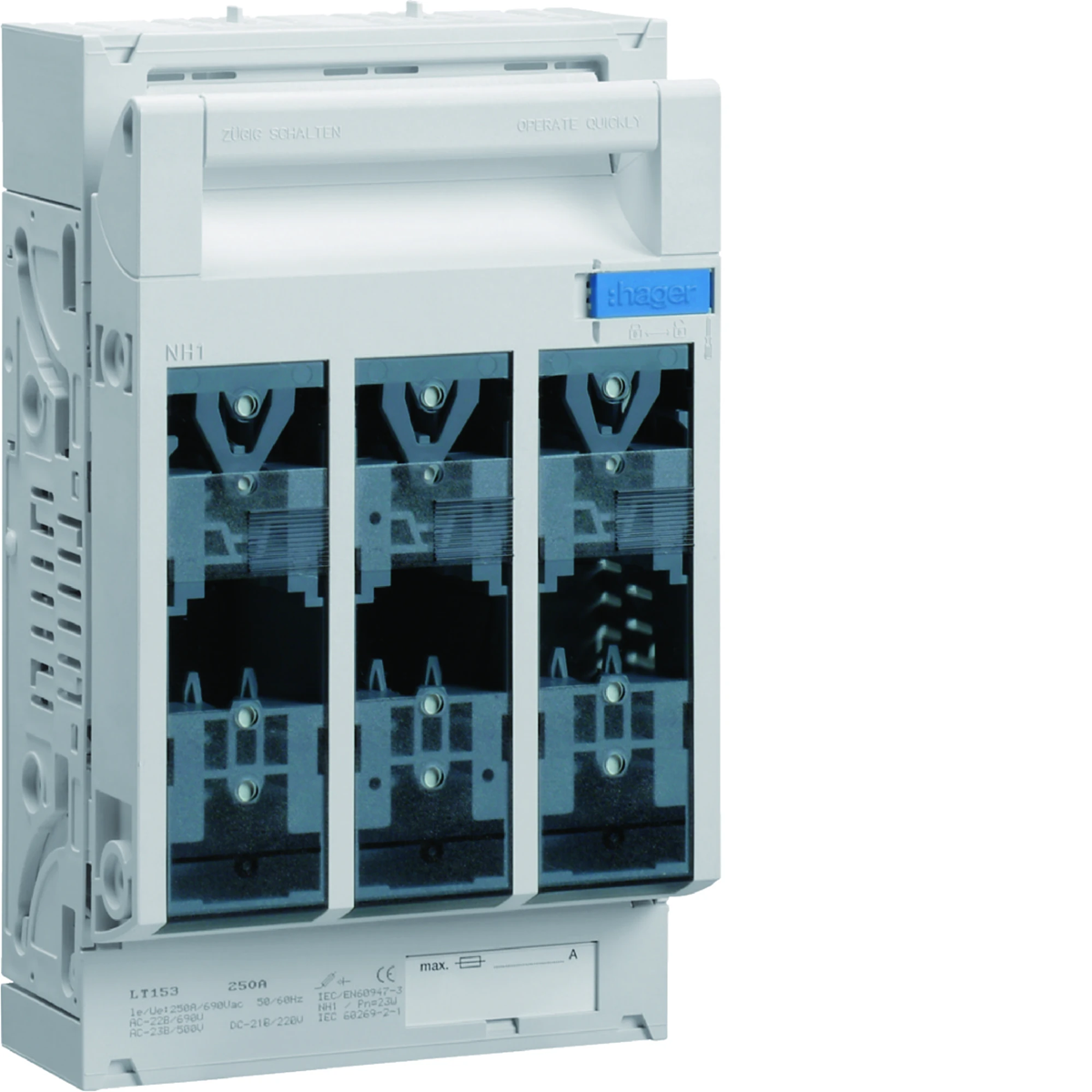

Fuse switch, NH1.3x250A LT153

local index:
ALB042HAGE
Catalog No:
LT153
EAN code:
3250614201530
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 110
Number of poles: 3
Price:
294,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass, cylindrical, system D and knife fuses. Luminaires and sockets as well as fuse bases and switch disconnectors. A comprehensive offer of protections fully adapted to the needs of professional power engineering and various industries. In order to meet the expectations of the customer, Hager has introduced two trip signaling solutions for NH fuses. Fuses with an upper trip indicator are mainly intended for fuse bases, where the visibility of this indicator is good due to the lack of covers. Fuses with a double combined indicator are designed for fuse switch disconnectors. The indicator, which is located on the front plate of the porcelain body, is perfectly visible in the inspection windows that have fuse switches. Using such a solution significantly shortens the time of locating a damaged fuse.

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    3
  • Connection
    Vice
  • Rated current [A]
    250
  • power loss [W]
    20
  • Size
    NH1
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    690
  • Depth [mm]
    110
  • Rated insulation voltage [V]
    1000
  • Surge voltage [V]
    8000
  • Short-circuit current [kA]
    50
  • Width [mm]
    184
  • Height [mm]
    306
  • Mechanical durability (number of cycles)
    1400
  • PKWIU
    27.33.11.0

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    250 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    No
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH1
  • Height of housing
    306 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 2,270 2,300 190,600
Width (m) 0,184 0,200 0,800
Length (m) 0,306 0,145 1,020
Depth (m) 0,131 0,335 1,200
