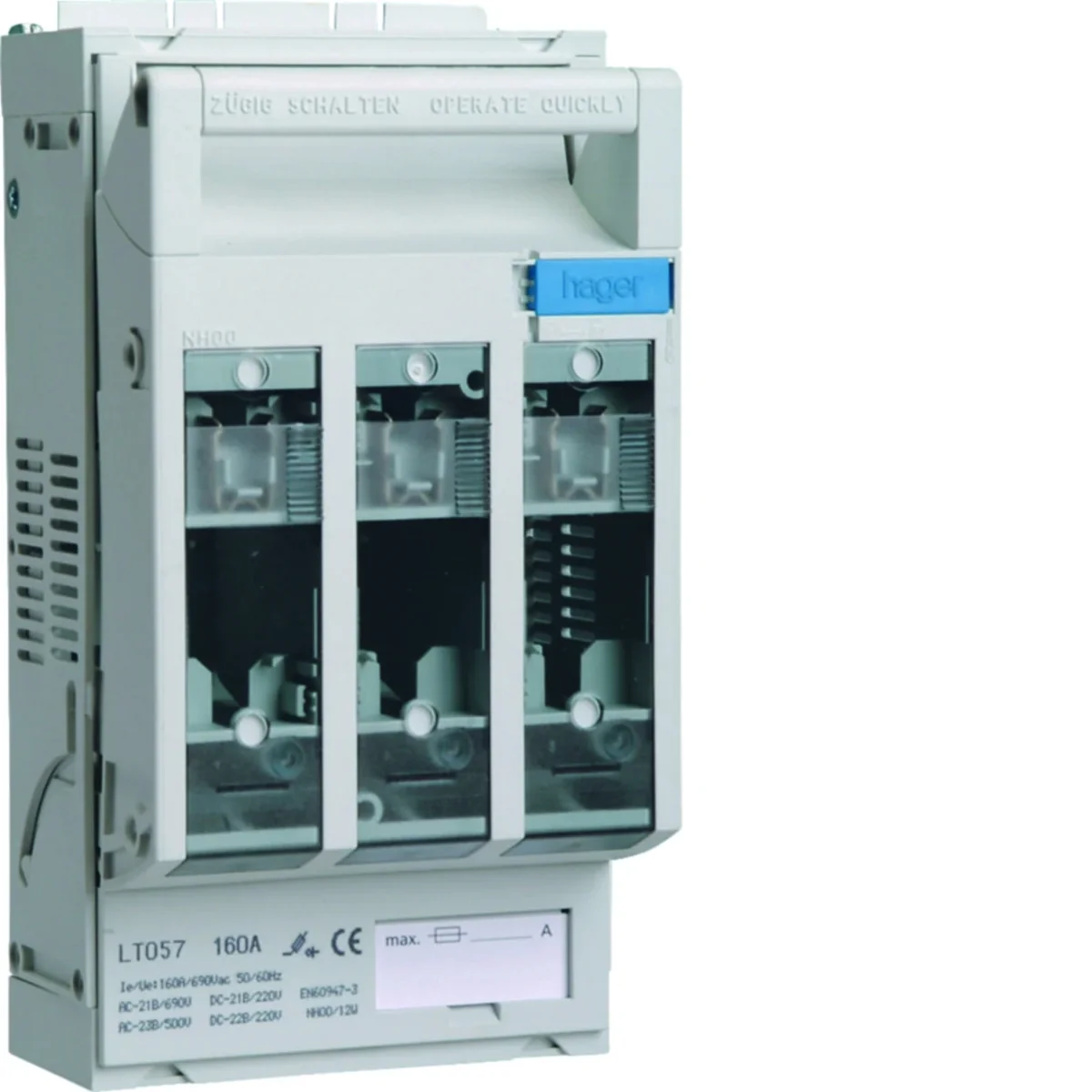

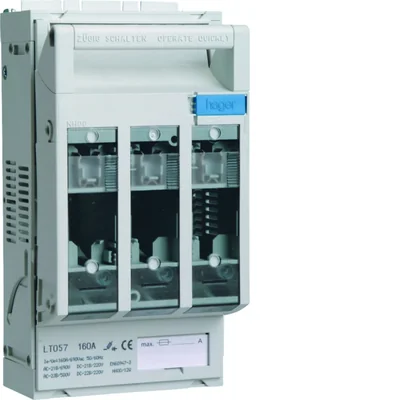

Fuse switch, NH00, 3x160A LT057

local index:
ALB046HAGE
Catalog No:
LT057
EAN code:
3250614200571
Manufacturer: HAGER
Number of poles: 3
Rated current [A]: 160
power loss [W]: 14
Price:
107,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Box fuse switch, number of wires - stranded: 6/95mm², number of wires - solid: 6/95mm².

Technical data

  • Number of poles
    3
  • power loss [W]
    14
  • Electrical endurance (number of cycles)
    200
  • Rated impulse voltage [kV]
    8
  • Rated current [A]
    160
  • Fuse link size
    NH00
  • Mechanical durability (number of cycles)
    1400
  • PKWIU
    27.33.11.0

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    160 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    Yes
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH00
  • Height of housing
    206 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 150 pcs.
Weight (kg) 0,800 1,213 206,950
Width (m) 0,106 0,109 0,800
Length (m) 0,206 0,136 0,870
Depth (m) 0,125 0,209 1,200
