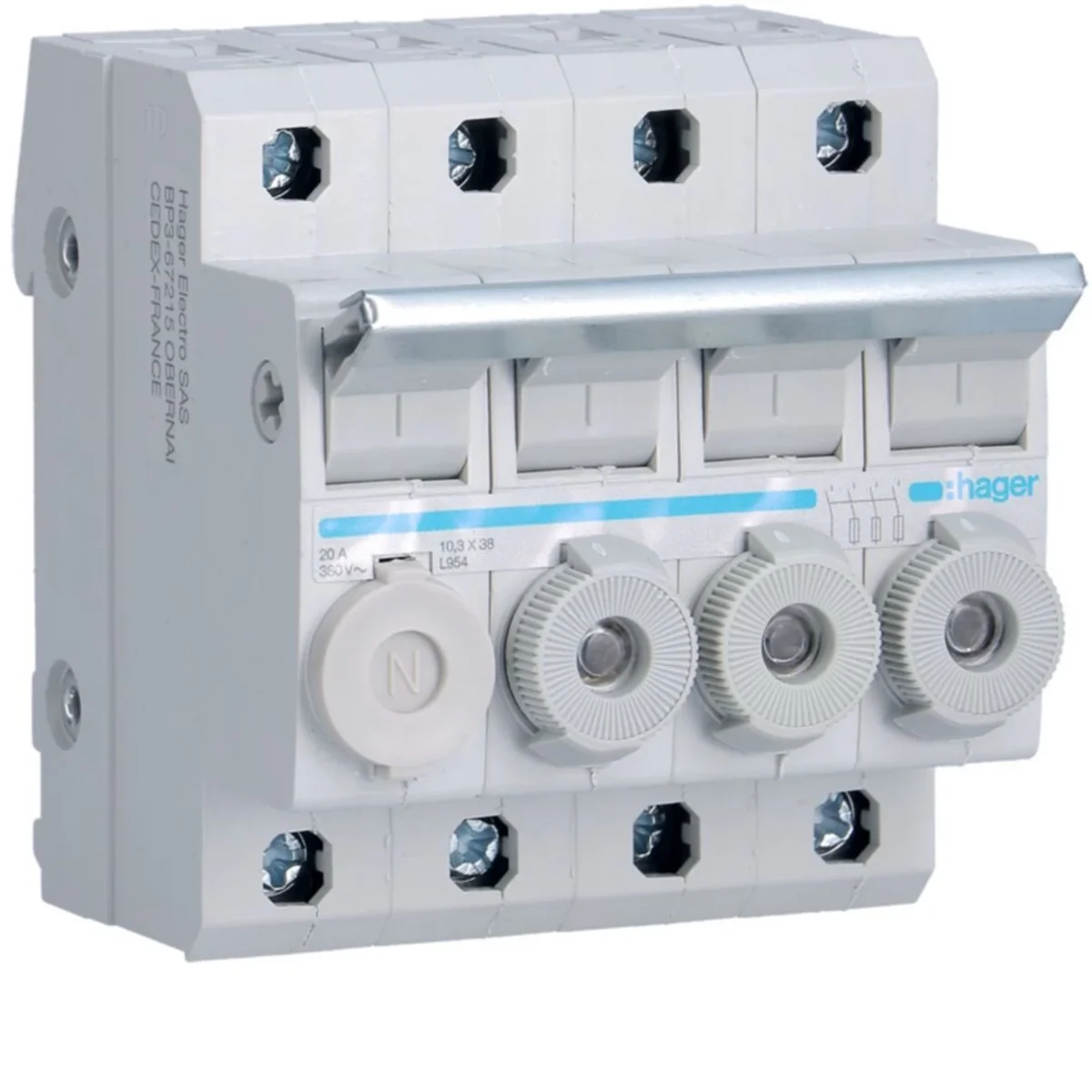

Fuse switch disconnector 3P+N 20A 10x38 L95400

Indice locale:
ALB176HAGE
Numero di catalogo:
L95400
Codice EAN:
3250610100387
Produttore: HAGER
Rated frequency [Hz]: 50
Number of poles: 4
Tightening torque [Nm]: 2.4
Prezzo:
218,04 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

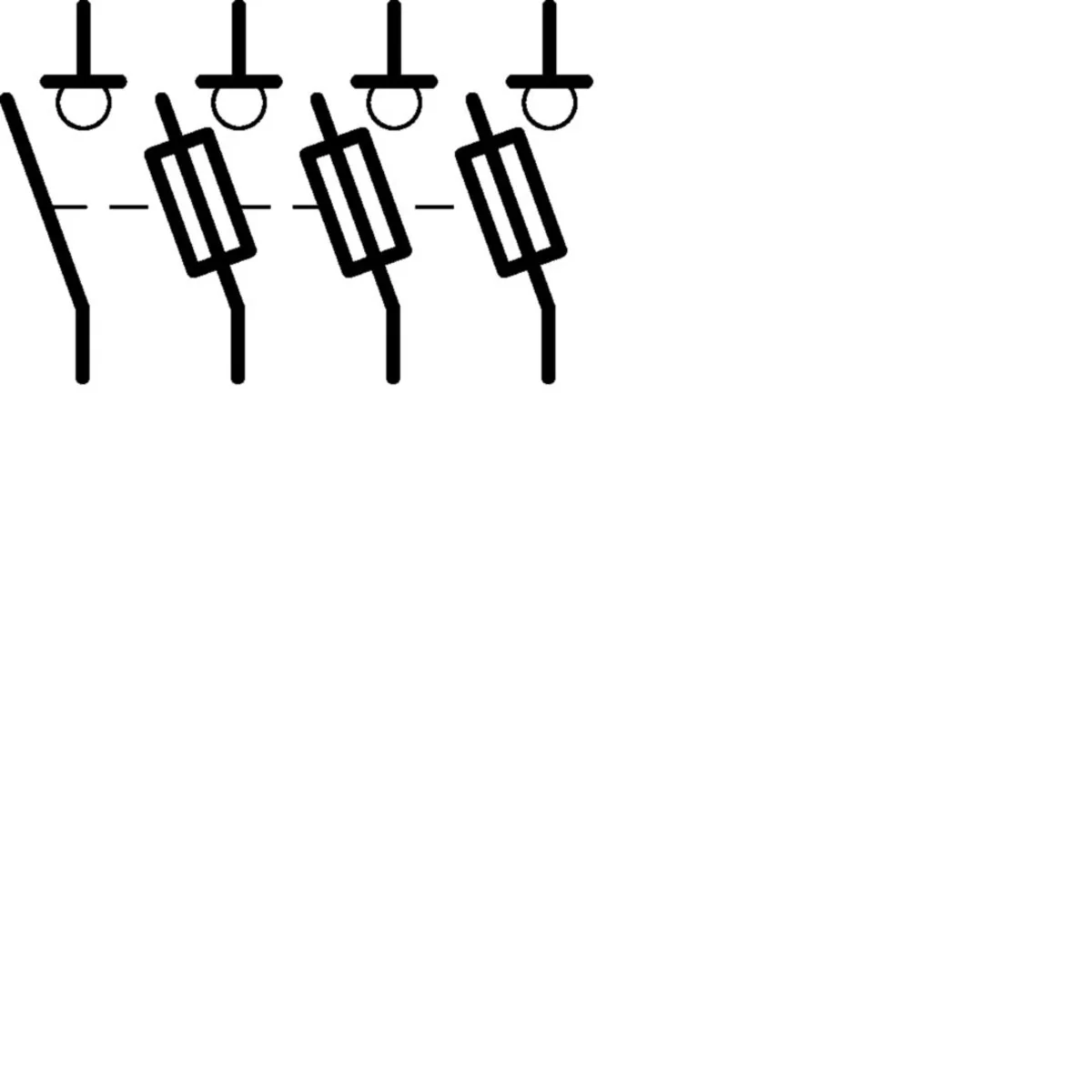

Fuse switch disconnector 3P+N 20A 10x38

Dati tecnici

  • Rated frequency [Hz]
    50
  • Tightening torque [Nm]
    2.4
  • Level of security
    IP20
  • Fuse link size
    10.3x38
  • Mechanical durability (number of cycles)
    5000
  • Rated switching voltage [V]
    380
  • Fuse link rated current [A]
    0.5/1/2/4/6/8/10/12/16/20
  • storage temperature [°C]
    from -25 to 80
  • Conductor cross-section (wire) [mm²]
    16
  • Number of poles
    4
  • Rated current [A]
    20
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    2000
  • Operating temperature range [°C]
    from -5 to 40
  • Number of modules
    4
  • Beacon
    NO
  • Wire cross-section (cord) [mm²]
    10
  • PKWIU
    27.12.21.0

Altri dati tecnici

  • Version as main switch
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Suitable for fuses
    10x38 mm
  • With error protection
    No
  • Suitable for busbar mounting
    No
  • Position control element
    Front side
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • Rated permanent current Iu
    20 A
  • Number of poles
    4
  • Type of electrical connection of main circuit
    Screw connection
  • Type of control element
    Other
  • Motor drive optional
    No
  • Degree of protection (IP), front side
    IP20

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 3 pezzi 36 pezzi 864 pezzi
Peso (kg) 0,989 12,338 321,112
Larghezza (m) 0,090 0,310 0,800
Lunghezza (m) 0,080 0,230 1,100
Profondità (m) 0,220 0,360 1,200
