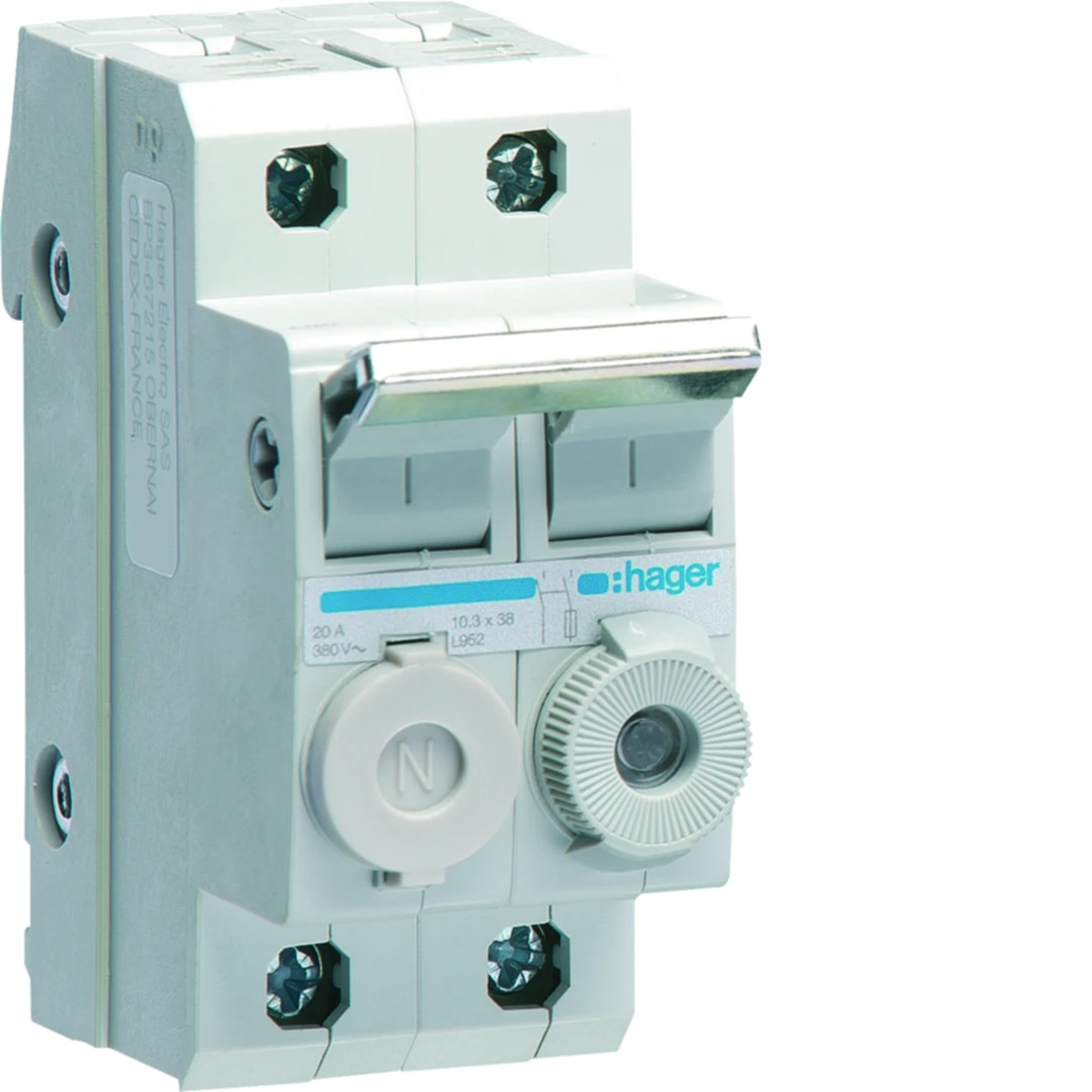

Fuse switch disconnector 1P+N 20A 10x38 L95200
local index:
ALB175HAGE
Catalog No:
L95200
EAN code:
3250610100363
Price:
22,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

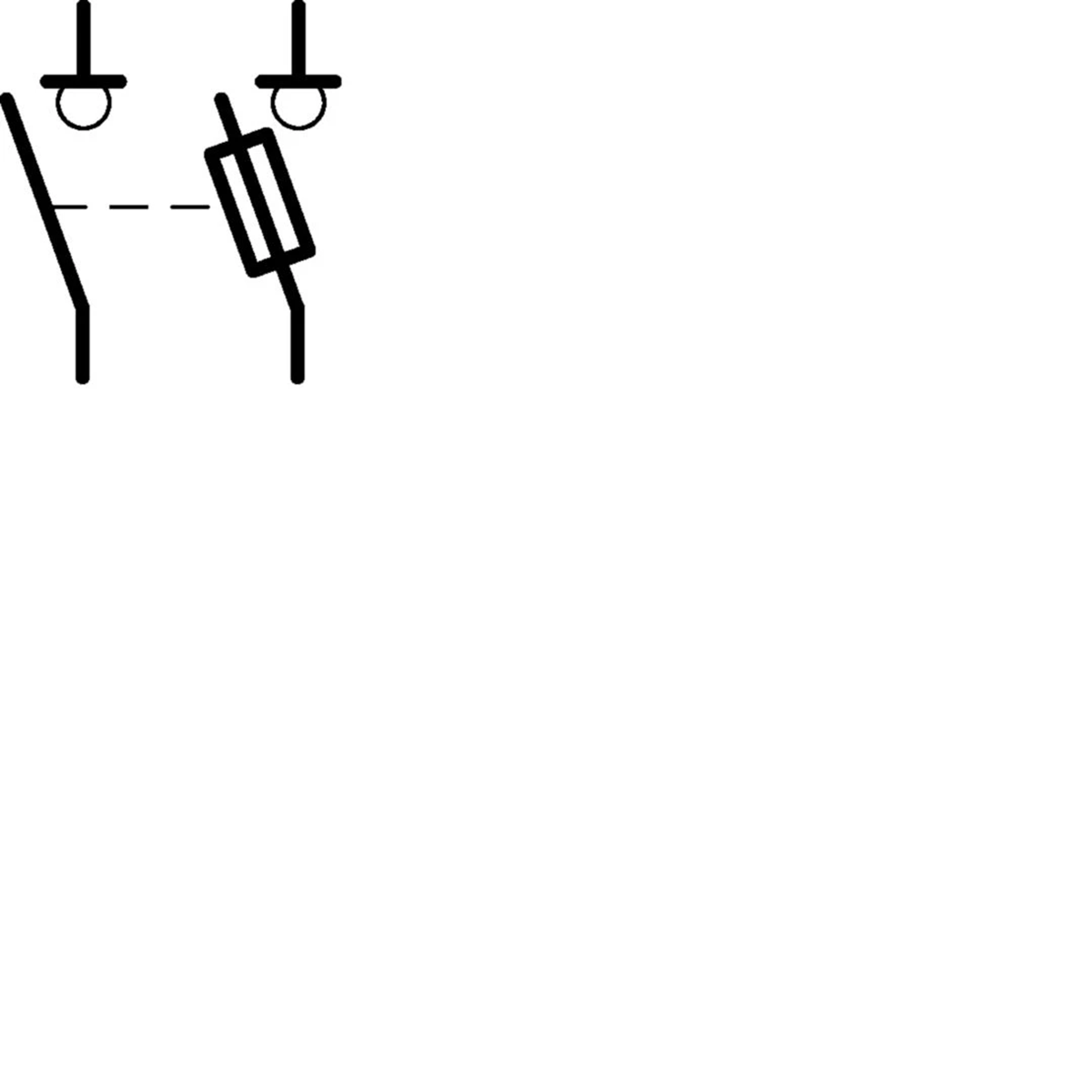

Fuse switch disconnector 1P+N 20A 10x38
Technical data
-
Rated frequency [Hz]50
-
Tightening torque [Nm]2.4
-
Level of securityIP20
-
Fuse link size10.3x38
-
Mechanical durability (number of cycles)5000
-
Rated switching voltage [V]380
-
Fuse link rated current [A]0.5/1/2/4/6/8/10/12/16/20
-
storage temperature [°C]from -25 to 80
-
Conductor cross-section (wire) [mm²]16
-
Number of poles2
-
Rated current [A]20
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -5 to 40
-
Number of modules2
-
BeaconNO
-
Wire cross-section (cord) [mm²]10
-
PKWIU27.12.21.0
Other technical data
-
Version as main switchYes
-
Number of poles2
-
Type of electrical connection of main circuitScrew connection
-
Suitable for front mountingNo
-
Type of control elementOther
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
With error protectionNo
-
Suitable for floor mountingYes
-
Suitable for busbar mountingNo
-
Motor drive optionalNo
-
Degree of protection (IP), front sideIP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,160 | 0,960 | 11,900 | 308,600 |
| Width (m) | 0,032 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,066 | 0,080 | 0,235 | 1,050 |
| Depth (m) | 0,073 | 0,230 | 0,365 | 1,200 |
