Fuse breaker body GS1 TeSys GS 3 poles DIN 160 A GS1LD3
local index:
ALB024SCHN
Catalog No:
GS1LD3
EAN code:
3389110254006
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 162
Price:
937,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

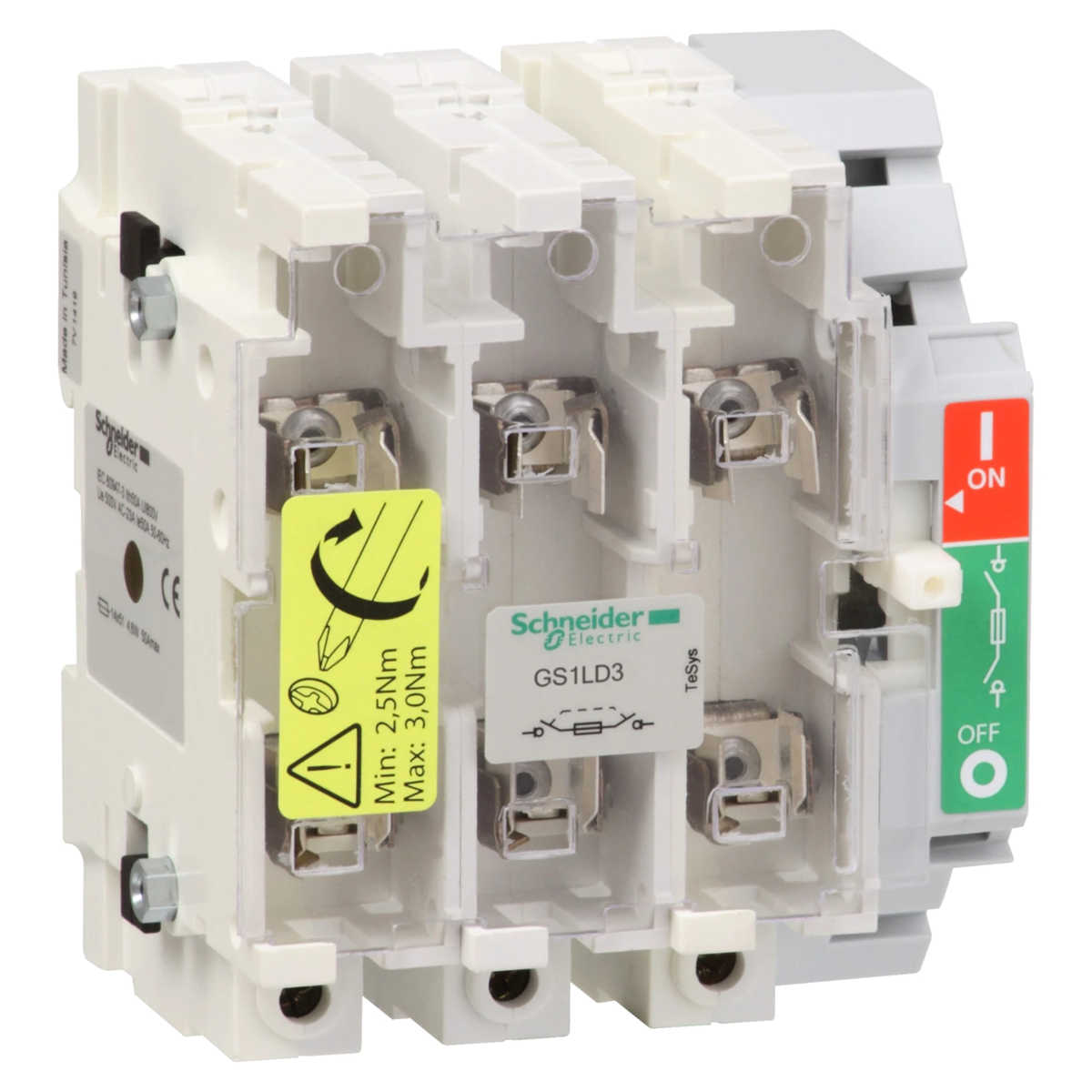

Fuse breaker body GS1 TeSys GS 3 poles DIN 160 A
Technical data
-
Height [mm]162
-
PKWIU27.12.23.0
Other technical data
-
Version as main switchYes
-
Max. rated operation voltage Ue AC750 V
-
Rated operation power at AC-23, 400 V90 kW
-
Rated short-time withstand current lcw100 kA
-
Number of poles3
-
Type of electrical connection of main circuitScrew connection
-
Equipped with connectorsNo
-
Suitable for front mountingNo
-
Type of control elementWithout actuator
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu160 A
-
Conditioned rated short-circuit current Iq100 kA
-
Suitable for fusesNH0
-
With error protectionNo
-
Cable entryOther
-
Suitable for floor mountingNo
-
Suitable for busbar mountingYes
-
Position control elementRight
-
Motor drive integratedNo
-
Degree of protection (IP), front sideIP20
