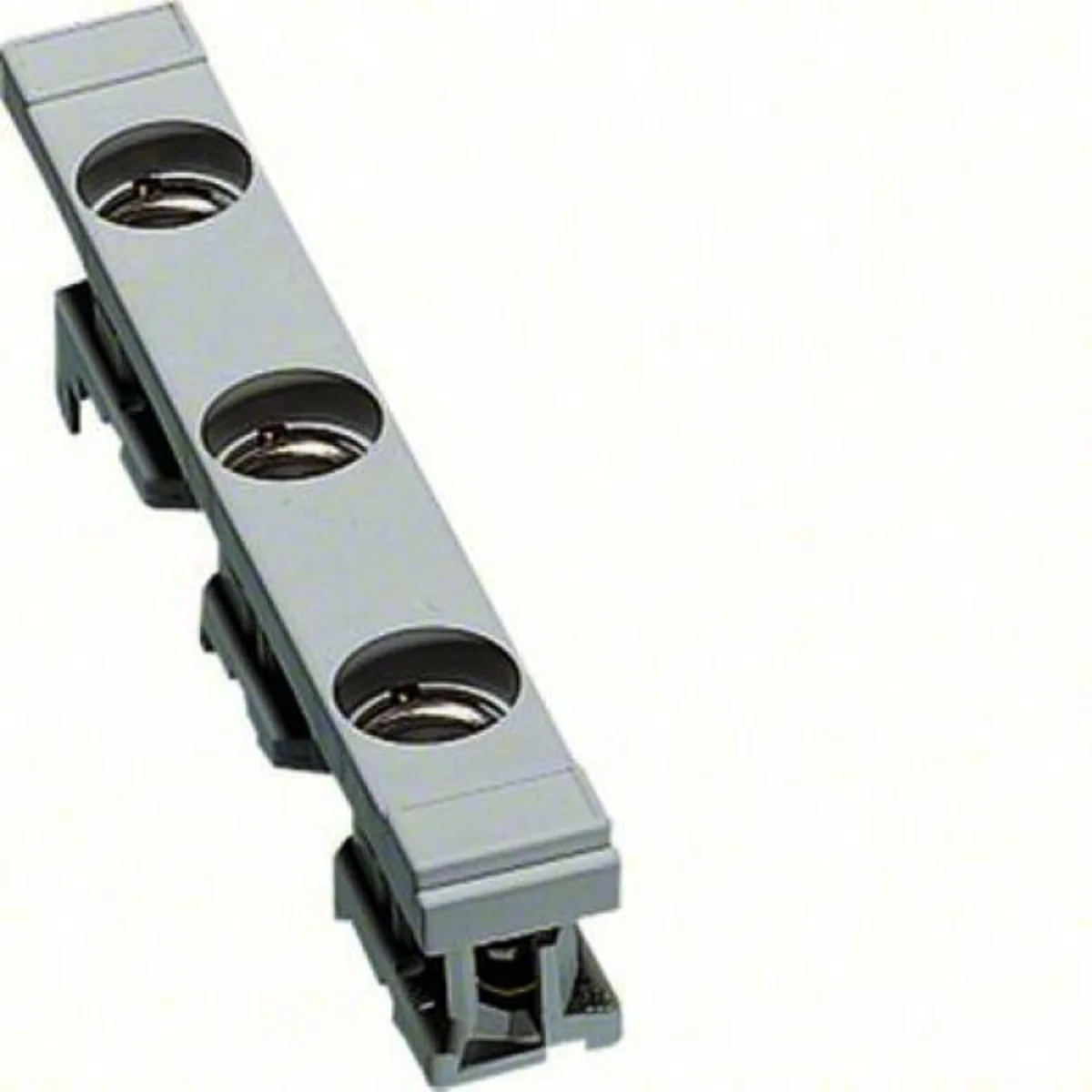

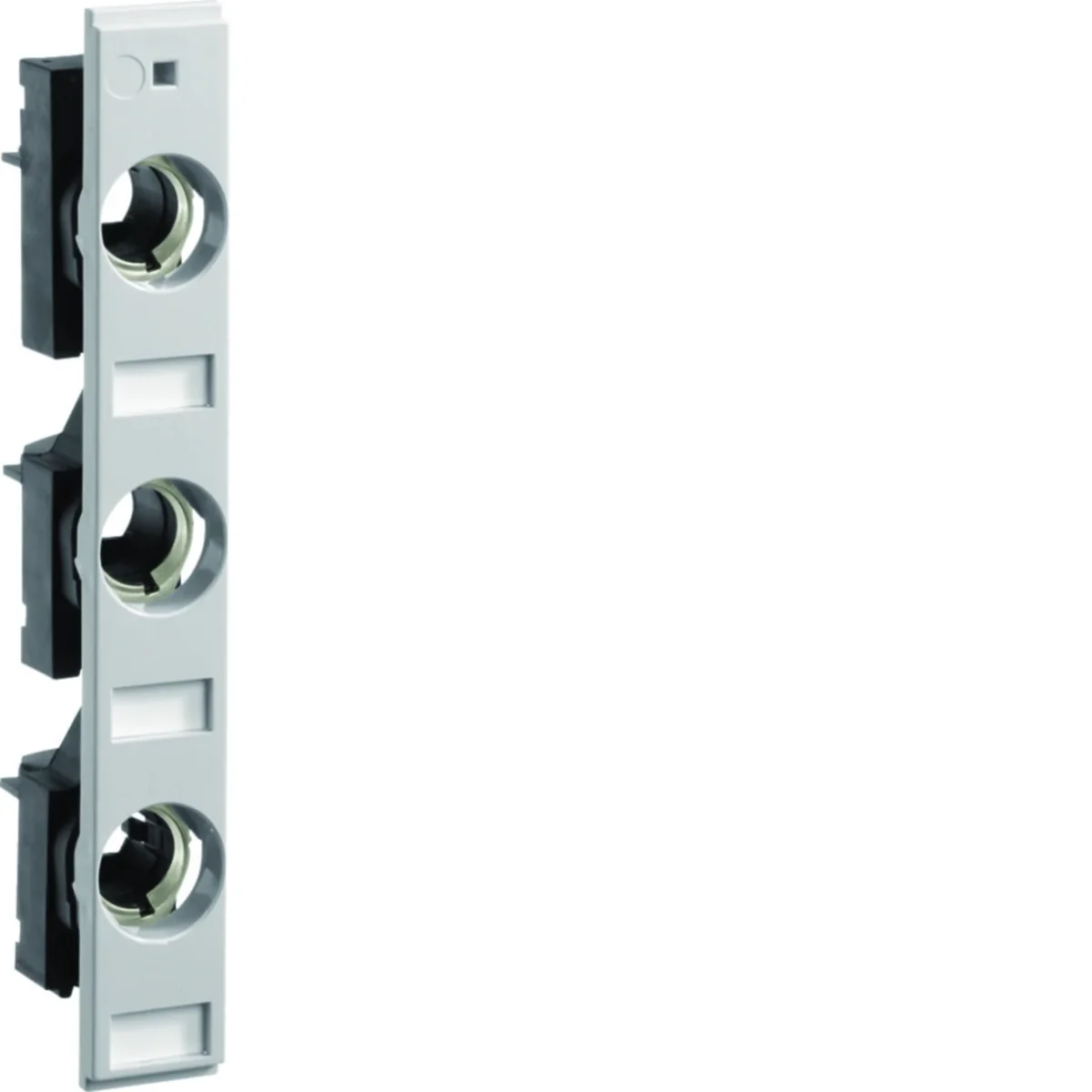

Fuse base D02/3x63A width 27mm L063L
local index:
ALI163HAGE
Catalog No:
L063L
EAN code:
4010330740275
Price:
30,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Fuse bases
• for Cu busbars with a thickness of 5 and 10 mm with a bar spacing of 60 mm, for the univers
• D02 max. 400V
• DI max. 500V
• DIII max. 650V
• for Cu busbars with a thickness of 5 and 10 mm with a bar spacing of 60 mm, for the univers
• D02 max. 400V
• DI max. 500V
• DIII max. 650V
Technical data
-
Depth [mm]35
-
Rated current [A]63
-
Width [mm]27
-
Height [mm]230
-
Number of poles3
-
Power dissipation [W]4.86
-
Fuse link sizeD02
-
PKWIU27.12.23.0
Other technical data
-
Number of poles3
-
MaterialOther
-
Mounting methodBusbar system
-
Rated current63 A
-
Construction sizeD02
-
Version with coverYes
-
Rated voltage400 V
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 1440 pcs. |
| Weight (kg) | 0,120 | 1,325 | 213,800 |
| Width (m) | 0,027 | 0,240 | 0,800 |
| Length (m) | 0,201 | 0,115 | 1,330 |
| Depth (m) | 0,072 | 0,260 | 1,200 |
