FR 304 20A 4P switch disconnector 406477
local index:
ALI031LEGR
Catalog number:
406477
EAN code:
3245064064774
Price:
139,91 zł
gross / pcs.
(including VAT 23%)
1 013,84 zł gross/kg.
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

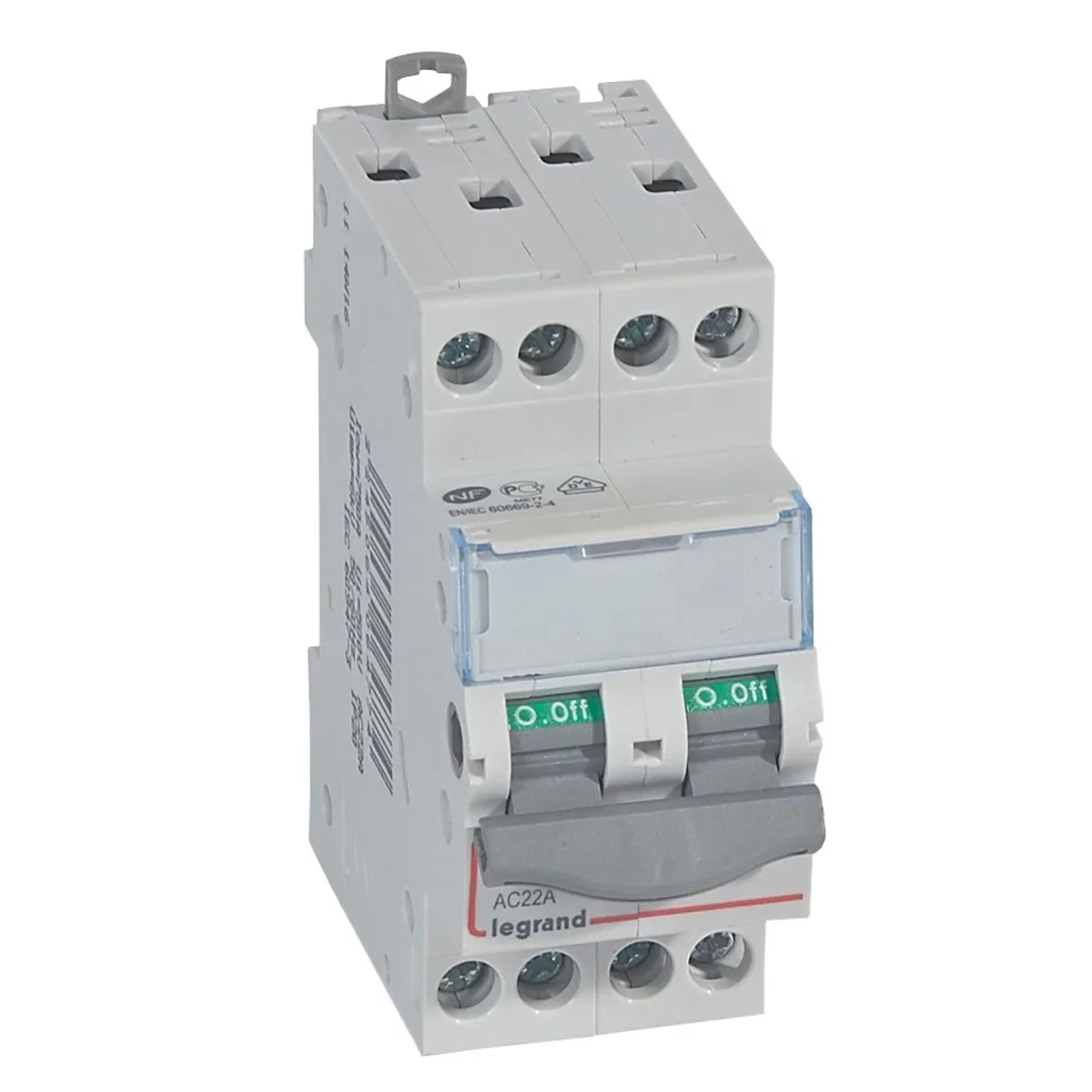

FR 304 20A 4P switch disconnector
Technical data
-
Rated current [A]20
-
Weight [g]138
-
Width in modules2
-
PKWIU27.12.40.0
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Max. rated operation voltage Ue AC400 V
-
Conditioned rated short-circuit current Iq4500 kA
-
Motor drive optionalNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Type of control elementToggle
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Rated permanent current Iu20 A
-
Number of poles4
-
Motor drive integratedNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Karton | Paleta |
| Quantity | 5 pcs. | 50 pcs. | 1500 pcs. |
| Weight (kg) | 0,857 | 9,035 | 271,050 |
| Volume (m3) | 0,002 | 0,023 | 0,924 |
| Width (m) | 0,100 | 0,298 | 1,200 |
| Length (m) | 0,086 | 0,195 | 0,770 |
| Depth (m) | 0,182 | 0,398 | 1,000 |
