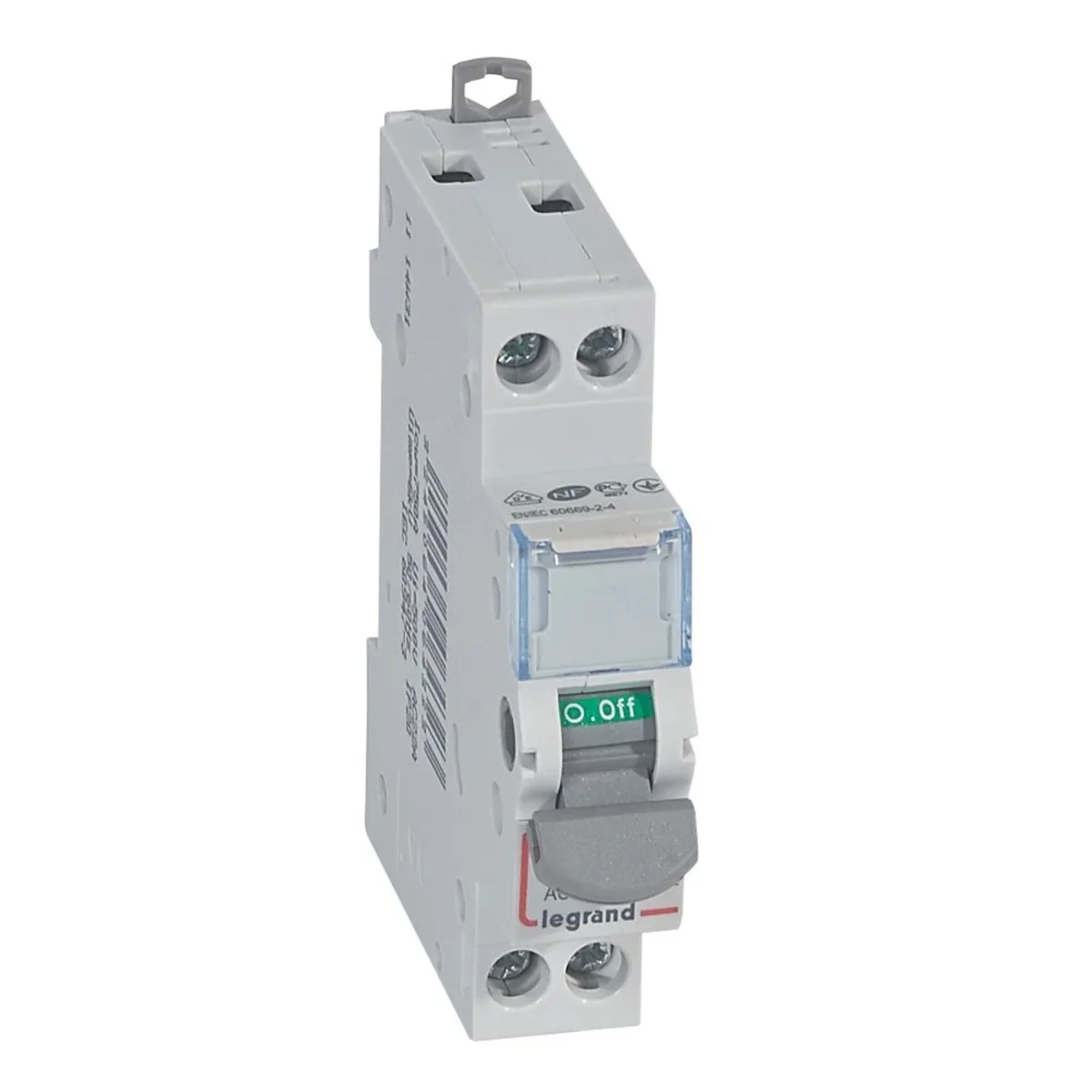

FR 302 20A 2P switch disconnector 406432

local index:
ALI137LEGR
Catalog No:
406432
EAN code:
3245064064323
Manufacturer: LEGRAND
Number of poles: 2
Price:
12,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

FR 302 20A 2P switch disconnector

Technical data

  • Number of poles
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Conditioned rated short-circuit current Iq
    4500 kA
  • Motor drive integrated
    No
  • Suitable for floor mounting
    No
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    No
  • Rated permanent current Iu
    20 A
  • Motor drive optional
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 3000 pcs.
Weight (kg) 0,860 9,089 272,670
Volume (m3) 0,000 0,000 0,001
Width (m) 0,100 0,298 1,200
Length (m) 0,086 0,195 0,770
Depth (m) 0,182 0,398 1,000
