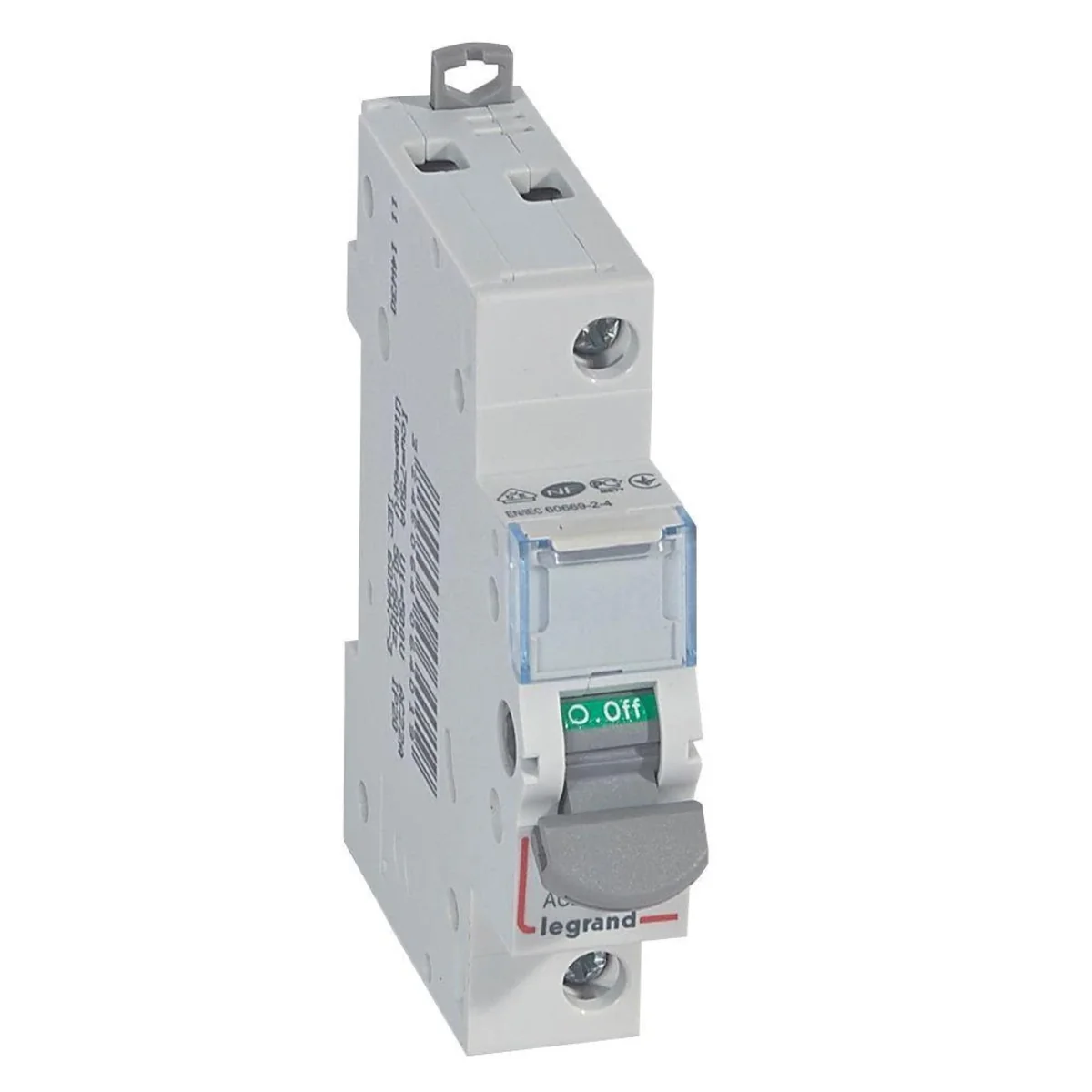

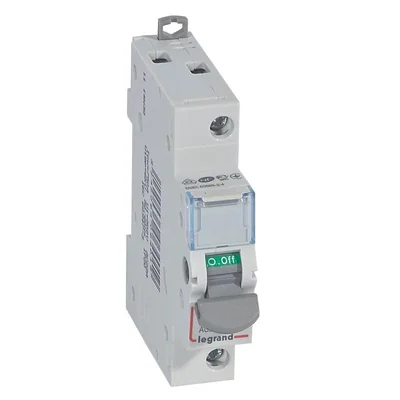

FR 301 20A 1P switch disconnector 406401

Indice locale:
ALI029LEGR
Numero di catalogo:
406401
Codice EAN:
3245064064019
Produttore: LEGRAND
Number of poles: 1
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Prezzo:
22,04 zł
gross / pezzi
(inclusa IVA 23%)
Prezzo più basso da 30 giorni prima dello sconto: 60,61 zł gross -38,57 zł
Prezzo del produttore: 72,98 zł gross
Consegna in 3 ore
Accessibile 7 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

FR 301 20A 1P switch disconnector

Dati tecnici

  • Number of poles
    1
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Max. rated operation voltage Ue AC
    250 V
  • Conditioned rated short-circuit current Iq
    4500 kA
  • Motor drive optional
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20
  • Height
    94.8 mm
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    No
  • Rated permanent current Iu
    20 A
  • Number of poles
    1
  • Motor drive integrated
    No
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection
  • Width
    17.8 mm
  • Depth
    76.4 mm

Dettagli del produttore

  • Produttore
    Legrand Polska Sp. z o.o.
  • Indirizzo
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko Karton Paleta Pudełko Karton Paleta
Quantità 10 pezzi 100 pezzi 3000 pezzi 10 pezzi 100 pezzi 3000 pezzi
Peso (kg) 0,711 7,608 228,240 0,711 7,608 228,240
Volume (m3) 0,002 0,023 0,924 0,002 0,023 0,924
Larghezza (m) 0,100 0,298 1,200 0,100 0,298 1,200
Lunghezza (m) 0,086 0,195 0,770 0,086 0,195 0,770
Profondità (m) 0,182 0,398 1,000 0,182 0,398 1,000
