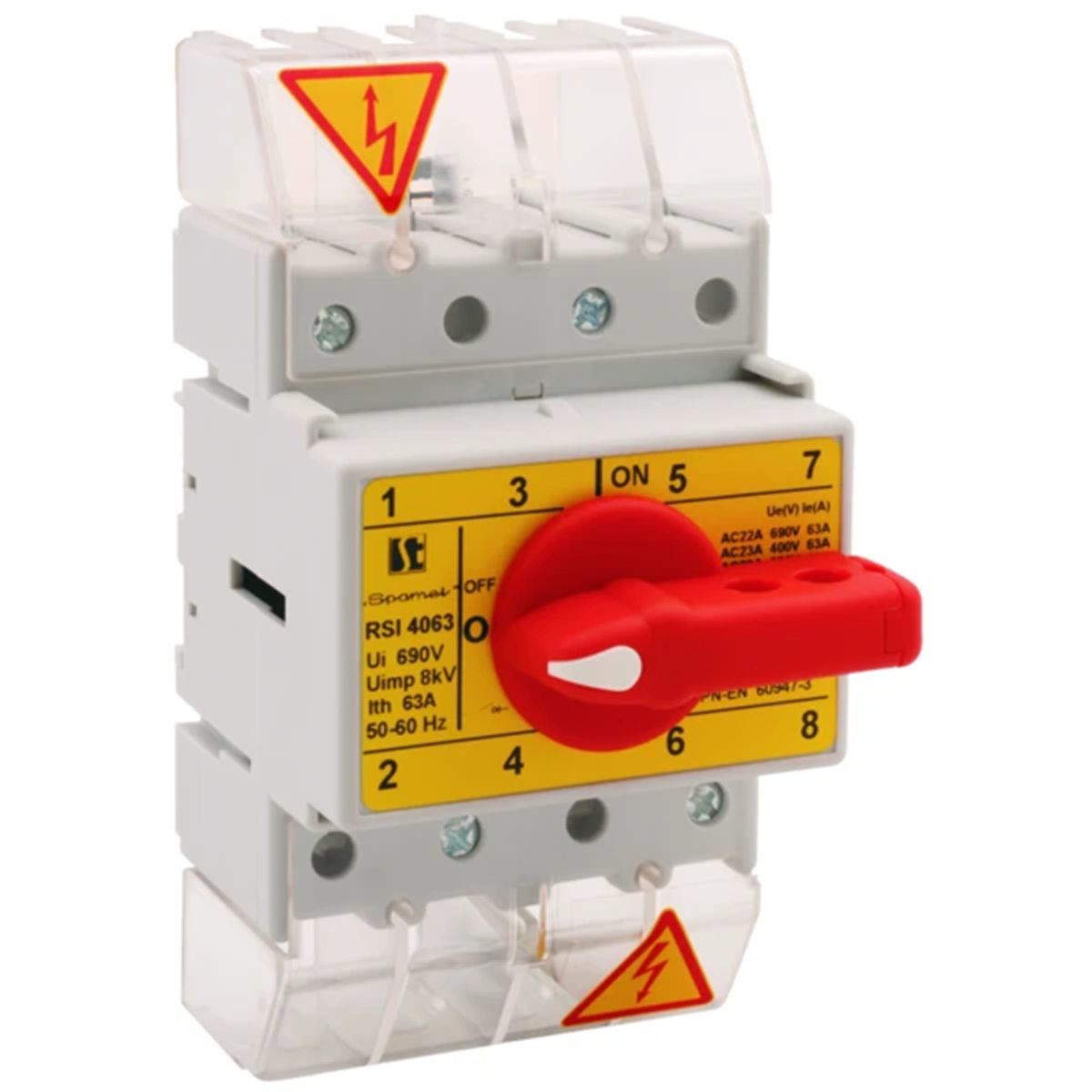

Four-pole switch disconnector 63A with handle RSI-4063\W02

Lokaler Index:
ALI131SPAM
Katalognummer:
RSI-4063\W02
EAN-Code:
5907723026834
Hersteller: SPAMEL
Rated insulation voltage [V]: 690
Continuous current [A]: 63
Preis:
218,09 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.

Technische Daten

  • Rated insulation voltage [V]
    690
  • Continuous current [A]
    63

Weitere technische Daten

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
