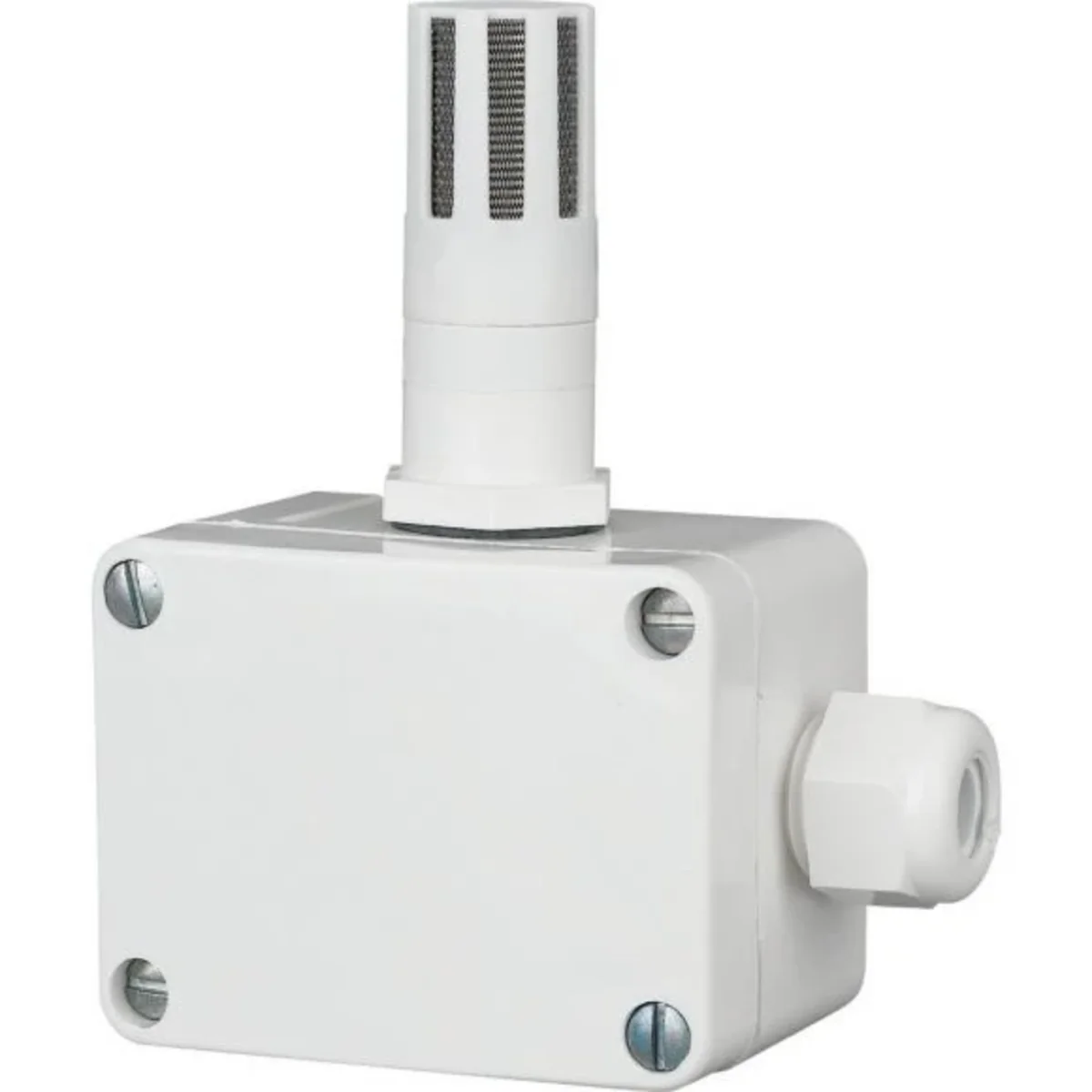

External humidity sensor 109382

The humidity sensor with temperature sensor (PT1000) actually has 2 functions. The measured relative humidity is transferred as an analog value 0-10VDC (the higher the value, the higher the relative humidity). A temperature sensor (PT1000) measures the temperature, after which its resistance value is directly evaluated. In order to relate both quantities to the Eaton radio system, both sensors must be connected via a 2-way analog input (109372). The sensor is also supplied with 24VDC current through the analog input (Note: pay attention to the correct connection of wires and settings in the analog input!)
