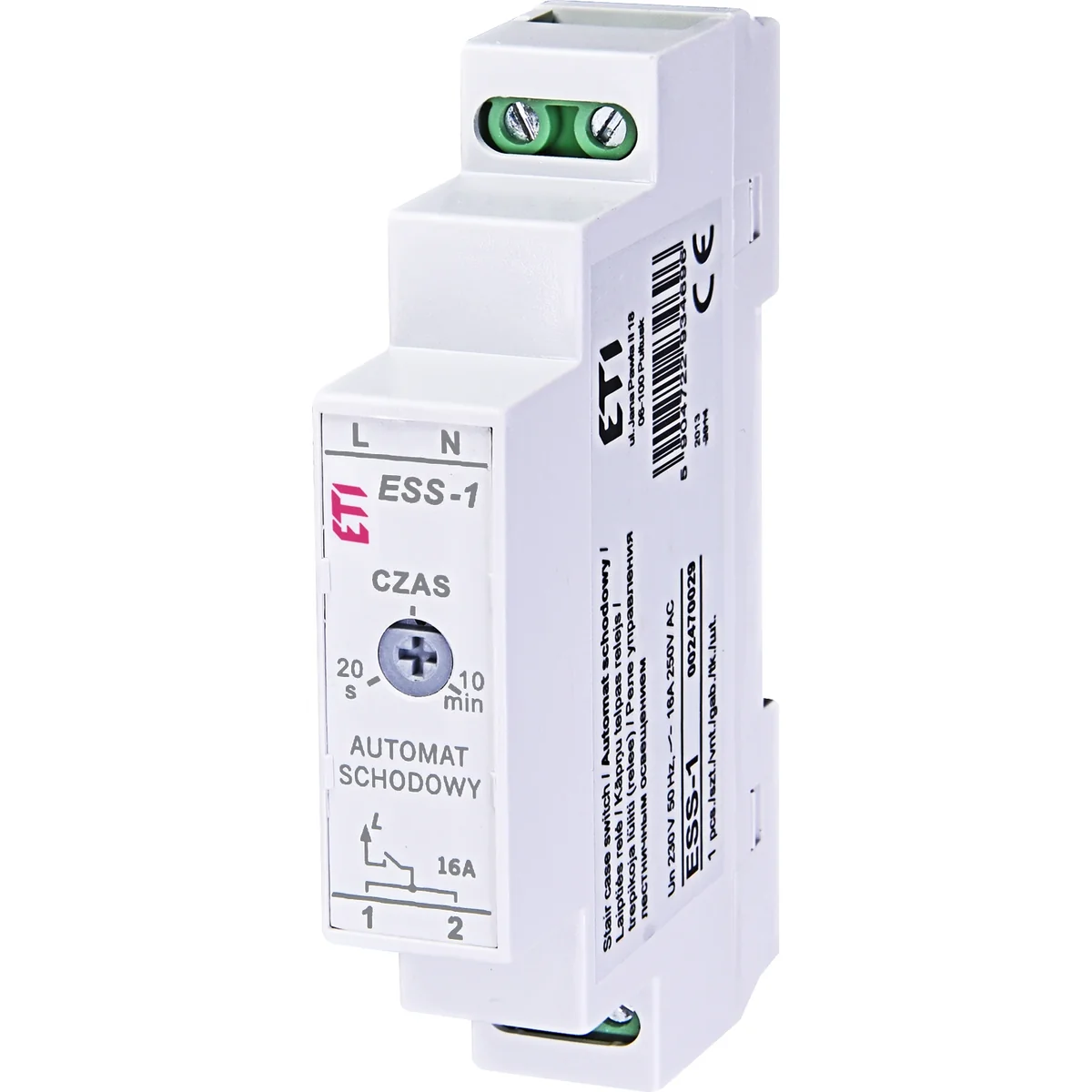

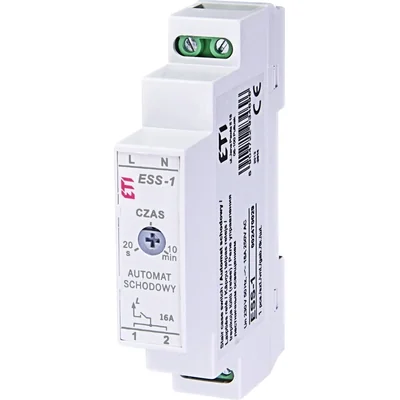

ESS-1 staircase automatic switch 002470029

local index:
APC121ETIP
Catalog No:
002470029
EAN code:
5904722934696
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Clamps: 2.5mm2
Time ranges: 20s - 10min.
Price:
33,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relays are used to control lighting, e.g. in staircases, they perform the delayed switch-off function. CRM-4 is protected against permanent activation. On the other hand, CRM-42 has the ability to program the time  each key press extends the lighting time by the value set on the potentiometer.

Advantages:

  •  time range 0.5s-10 min (CRM-42)
  •  AUTO-ON-OF operating switch (CRM-42),
  •  output contact 16 A,
  •  possibility of using switches with backlight (max. 20 pcs.) without the need to use additional compensation systems (CRM-42).



Technical data

  • Rated voltage [V]
    230
  • Time ranges
    20s - 10min.
  • Compliance with standards
    PN-EN 60669-2, PN-EN 61010-1
  • Clamps
    2.5mm2
  • Power
    L - N terminals
  • PKWIU
    27.12.24.0

Other technical data

  • Function
    Electronic
  • Width in number of modular spacings
    1
  • Rated switch current
    16 A
  • Supply voltage
    230 ... 230 V
  • Mounting method
    DIN rail
  • Built-in depth
    68 mm
  • Release-delay
    0.3 ... 10 min
  • Voltage type (supply voltage)
    AC

Bulk packaging

A kind of package Pudełko
Quantity 12 pcs.
Weight (kg) 0,722
