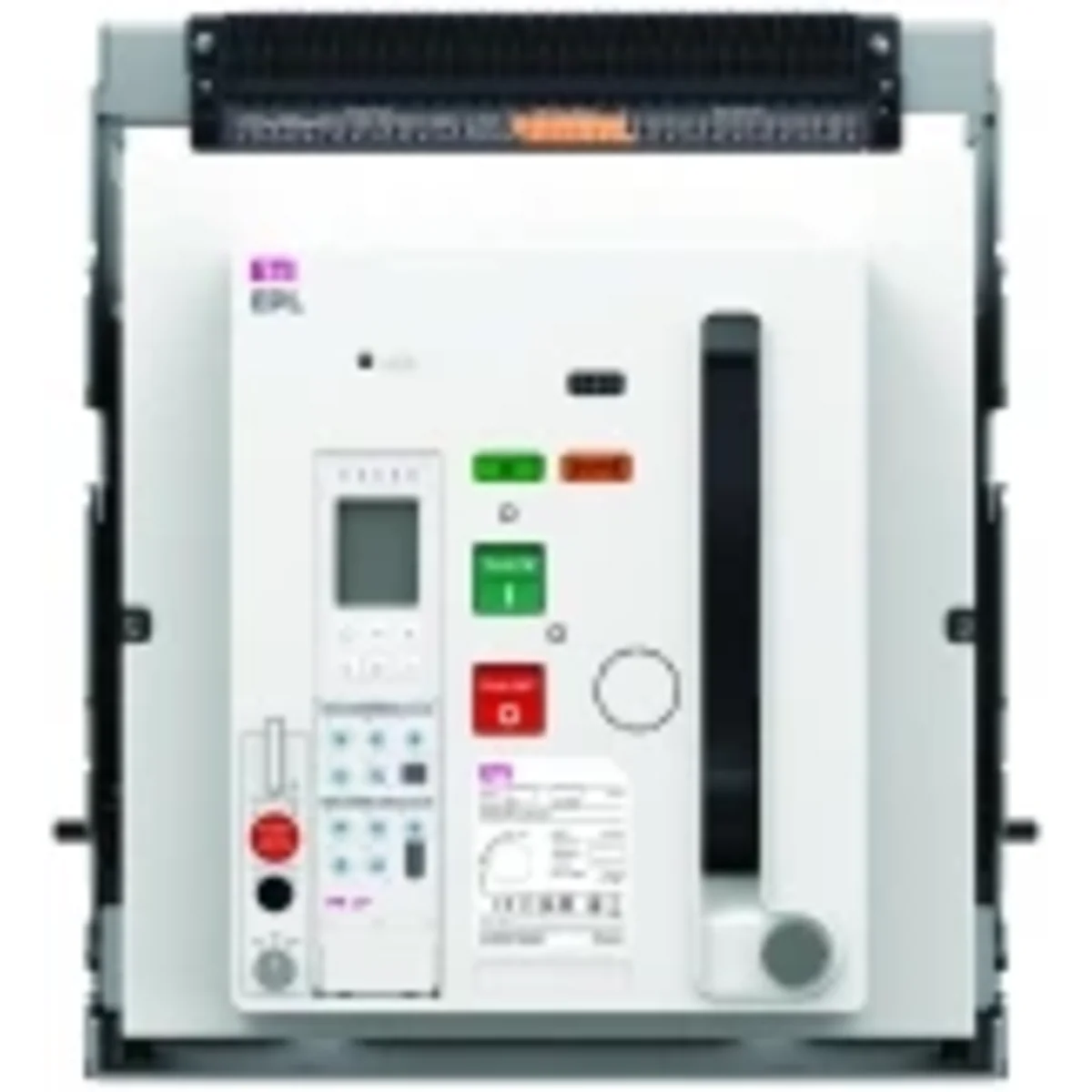

EPL-20 3H BD/M2C2S2/PR-LP Circuit breaker 2000A, 3P, 85 kA, withdrawable, OCR, shunt trip, motor drive 004695705

Místní index:
ALM024ETIP
Katalogové číslo.:
004695705
EAN kód:
3838400105578
Výrobce: ETI POLAM
Cena:
19 466,14 zł
gross / kusů.
(včetně DPH 23%)
2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Technické údaje

Další technické údaje

  • Rated permanent current Iu
    2000 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    85 kA
  • Integrated earth fault protection
    Yes
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as change-over contact
    5
  • Number of poles
    3
  • Type of control element
    Push button
  • Motor drive integrated
    Yes
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • Type of electrical connection of main circuit
    Connection at separate chassis part
  • DIN rail (top hat rail) mounting optional
    No
  • With switched-off indicator
    Yes
  • Position of connection for main current circuit
    Back side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko Pudełko
Množství 1 kusů. 6 kusů.
Hmotnost (kg) 93,925 572,000
Objem (m3) 0,252 1,764
Šířka (m) 0,600 1,750
Délka (m) 0,700 1,200
Hloubka (m) 0,600 0,840
