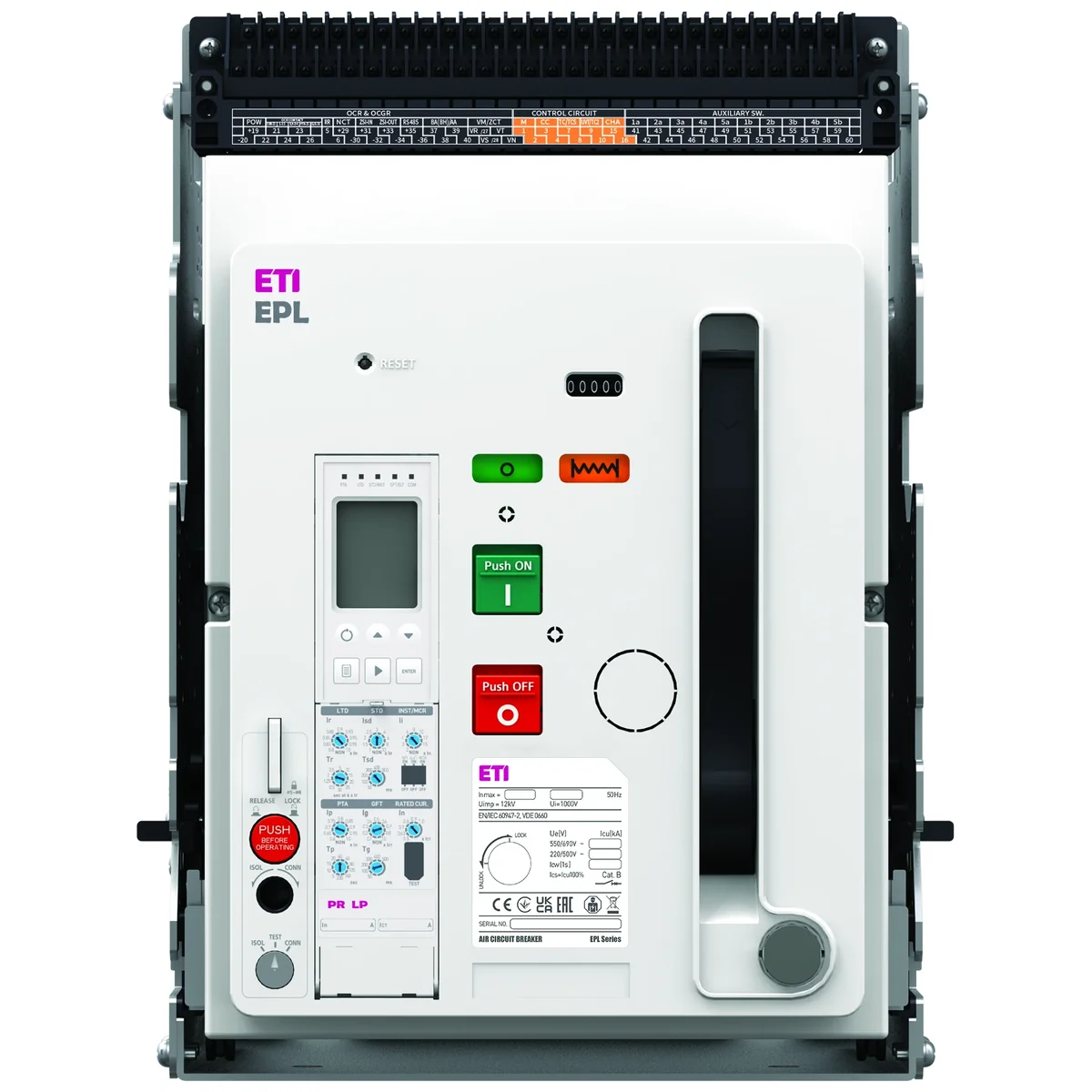

EPL-12 3H AD/M2C2S2/PR-LP Circuit breaker 1250A, 3P, 65 kA, withdrawable, OCR, shunt trip, motor drive 004695703
local index:
ALP120ETIP
Catalog number:
004695703
EAN code:
3838400105516
Manufacturer:
ETI POLAM
Shipment on a pallet
15 789,02 zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne 12 pcs.
Check
Odbiór!
Odbierz w godzinę!
Details
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Rated permanent current Iu1250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz65 kA
-
Integrated earth fault protectionYes
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as change-over contact5
-
Number of poles3
-
Type of control elementPush button
-
Motor drive integratedYes
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
Type of electrical connection of main circuitConnection at separate chassis part
-
DIN rail (top hat rail) mounting optionalNo
-
With switched-off indicatorYes
-
Position of connection for main current circuitBack side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerETI Polam Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 1 pcs. | 6 pcs. |
| Weight (kg) | 69,925 | 428,000 |
| Volume (m3) | 0,252 | 1,764 |
| Width (m) | 0,600 | 1,750 |
| Length (m) | 0,700 | 1,200 |
| Depth (m) | 0,600 | 0,840 |
Files to download
