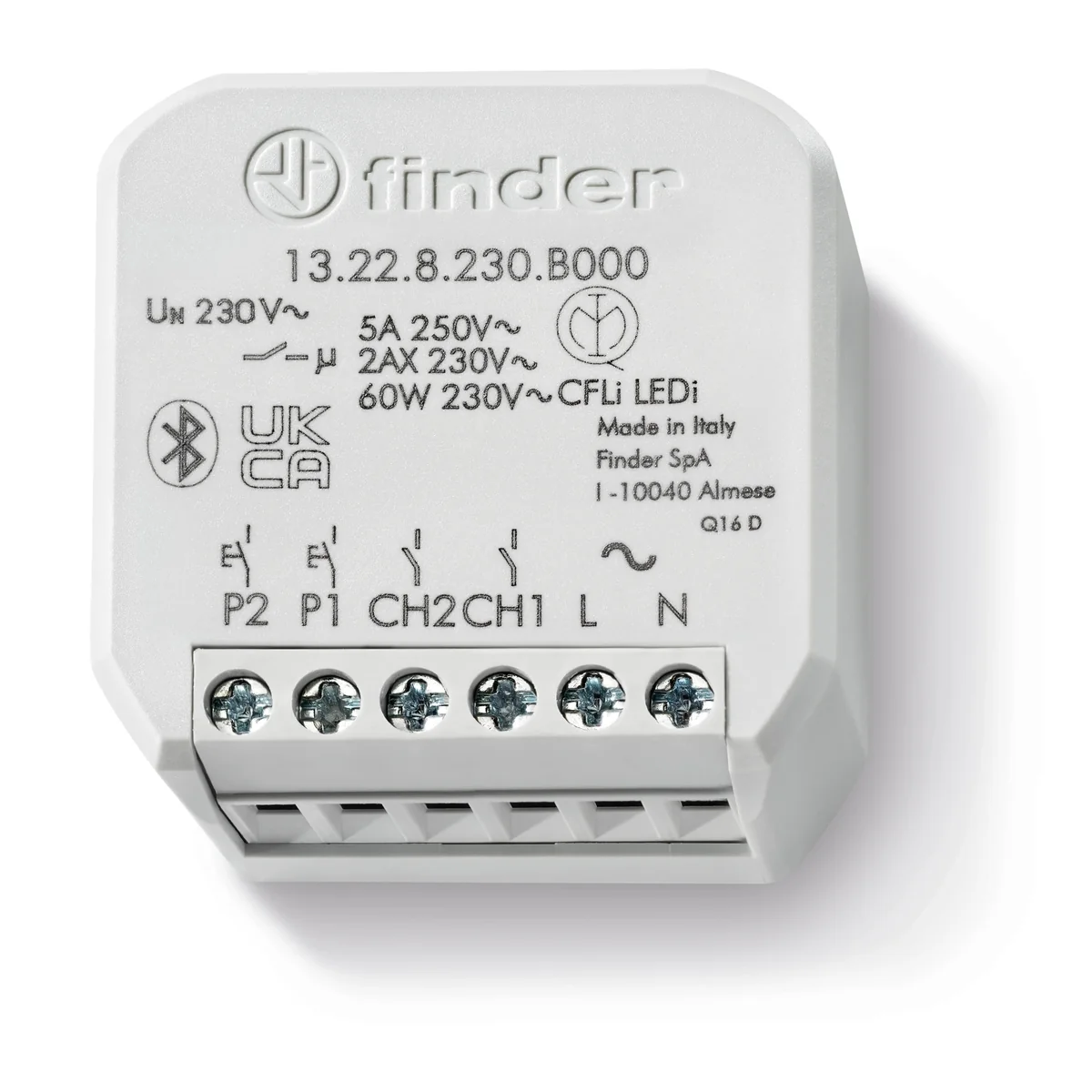

Electronic multifunctional relay with Bluetooth 2Z 6A 230V AC IP20 13228230B000

local index:
APC041FIND
Catalog No:
13228230B000
EAN code:
8012823426600
Manufacturer: FINDER
Depth [mm]: 21.9
Color: White
Installation: Flush-mounted
Price:
74,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic multifunctional transmitter with Bluetooth

Features :

  • Can perform various lighting and fan control functions
  • Bluetooth 4.2 Low Energy transmission protocol
  • Secure connection thanks to 128-bit encryption
  • Programming using the iOS or Android smartphone application Finder TOOLBOX
  • Can be connected to standard or wireless buttons BEYON or type 013B9
  • Mounting in a fi 60 box
  • 20 available functions (impulse, timer, staircase automatic) for lighting and fans
  • 2 contacts M 6 A – 230VAC; 2 independent and programmable channels
  • 2 inputs for installation switches
  • Range: approx. 10 m in free space – no obstacles

Technical data

  • Depth [mm]
    21.9
  • Installation
    Flush-mounted
  • Overvoltage resistance [kV]
    4
  • Power consumption [W]
    0.5
  • Family
    13
  • Width [mm]
    43
  • interface
    Bluetooth
  • Number of contacts
    2
  • Rated switching power for AC1 [VA]
    1380
  • Electrical durability AC1 [number of cycles]
    60000
  • Color
    White
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    6
  • Level of security
    IP20
  • Height [mm]
    44.1
  • Rated inrush current [A]
    40
  • Type of coil voltage
    AC
  • Rated switching power for AC15 (230V AC) [VA]
    300
  • Permissible load [W]
    200

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 5 pcs. 1 pcs.
Weight (kg) 0,535 0,084
Width (m) 0,320 0,108
Length (m) 0,117 0,097
Depth (m) 0,110 0,062
