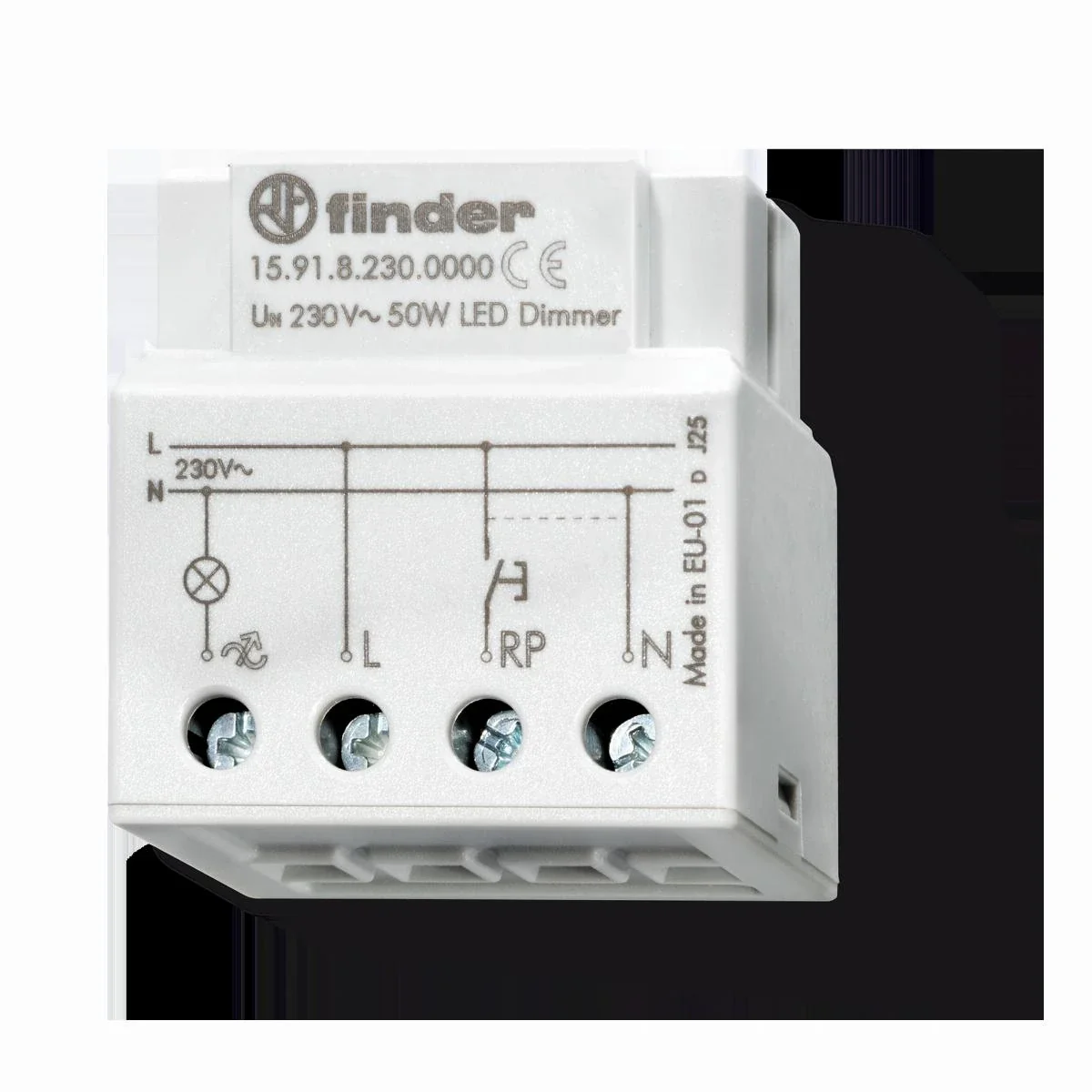

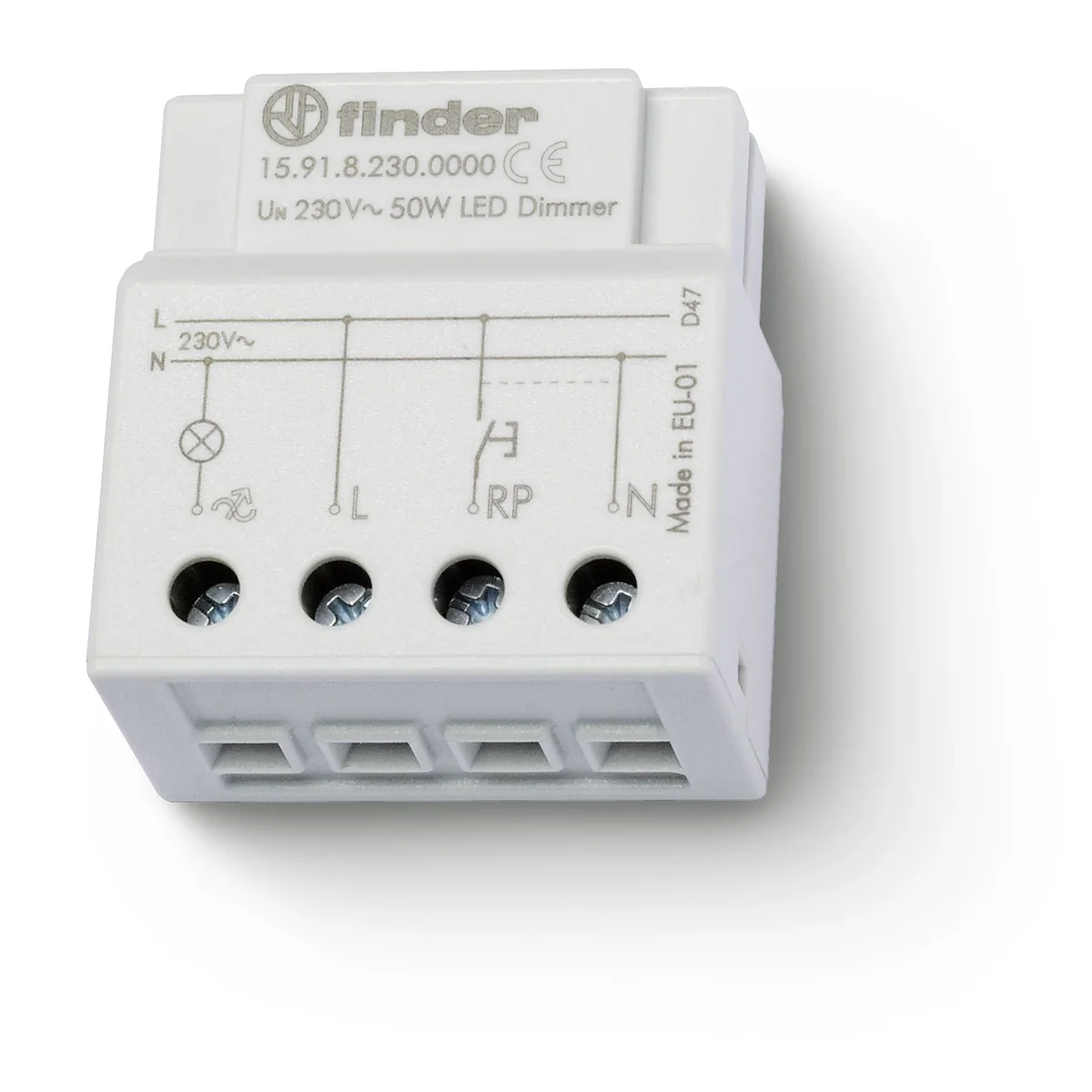

Electronic dimmer 100W 230V AC IP20 159182300000

local index:
APC040FIND
Catalog No:
159182300000
EAN code:
8012823375144
Manufacturer: FINDER
Depth [mm]: 22.7
Installation: Flush-mounted
Rated voltage [V]: 230
Price:
42,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 31 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic dimmer with bistable function for various types of lamps.

Features:

  • Linear dimming
  • Automatic power frequency recognition
  • Can be mounted in installation boxes
  • Maximum lamp load 100 W
  • Rising edge dimming
  • 2 modes – with and without memory
  • Can be used with incandescent and halogen lamps
  • For mains 3- or 4-wire
  • Soft on and off
  • Thermal overload protection



Technical data

  • Depth [mm]
    22.7
  • Rated voltage [V]
    230
  • Type of voltage
    AC
  • Level of security
    IP20
  • Height [mm]
    39
  • Permissible load [W]
    100
  • Installation
    Flush-mounted
  • Overvoltage resistance [kV]
    4
  • Family
    15
  • Width [mm]
    37
  • Type of coil voltage
    AC
  • Rated switching power [W]
    100

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Serial dimmer
    Yes
  • Light value memory
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    Yes
  • Nominal power
    50 ... 100 VA
  • Control voltage
    230 ... 230 V
  • Device height
    22.7 mm
  • Method of operation
    Other
  • Type of load
    Universal
  • Applicable with button
    Yes
  • Type of fastening
    Other
  • Material quality
    Duroplast
  • Surface protection
    Untreated
  • Colour
    Grey
  • Suitable for degree of protection (IP)
    IP20
  • Frequency
    50 ... 60 Hz
  • Device width
    37 mm
  • Device depth
    39 mm

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 5 pcs. 1 pcs.
Weight (kg) 0,289 0,045
Width (m) 0,240 0,046
Length (m) 0,070 0,060
Depth (m) 0,090 0,085
