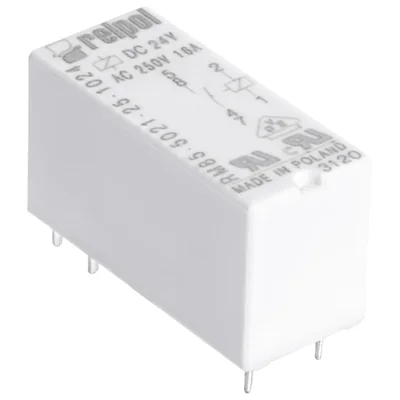

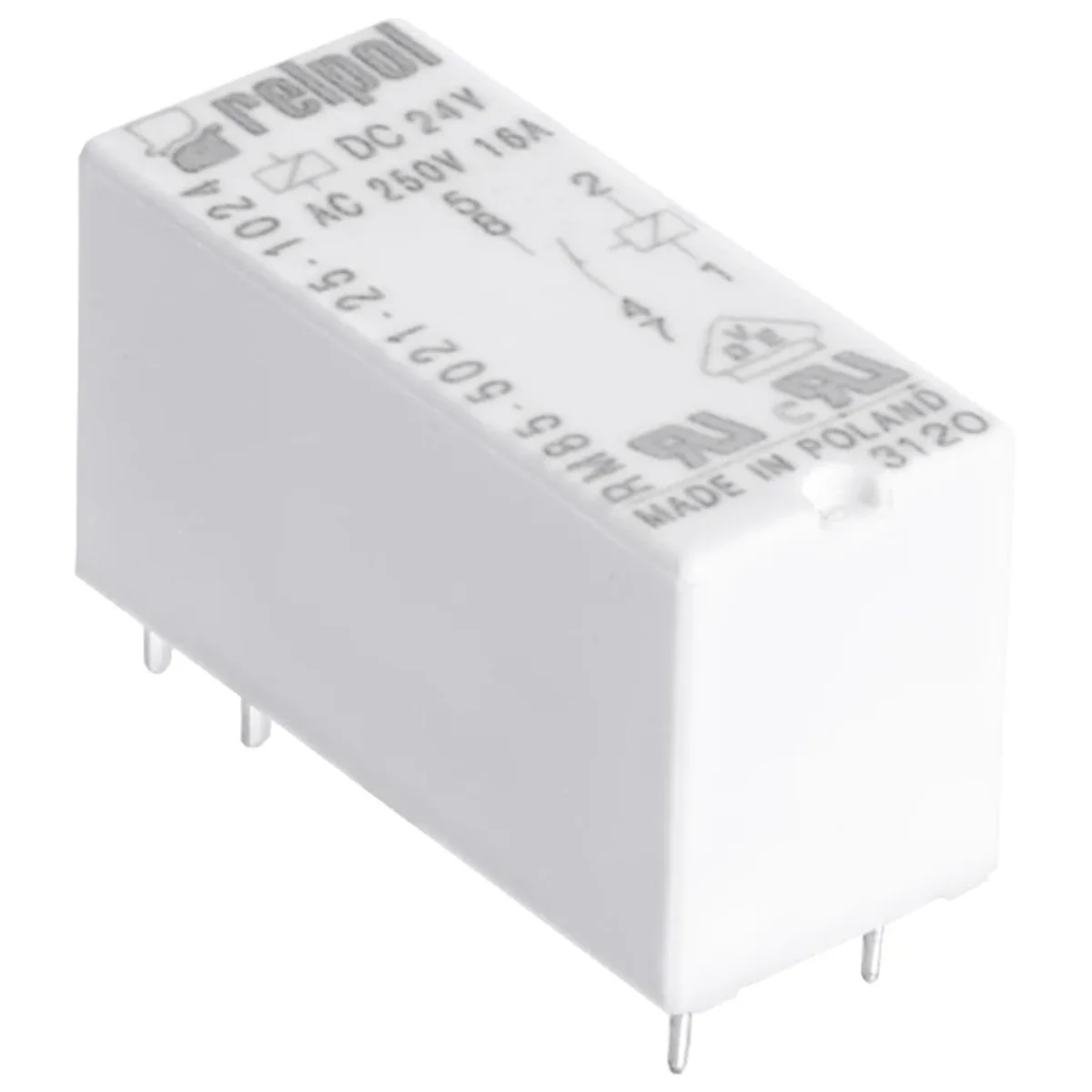

Electromagnetic relay RM85-5021-25-1024, miniature, for PCB and plug-in socket 855082

Electromagnetic relay, miniature, for PCB and socket. High resistance to surge current - 80 A (20 ms). 5mm pitch. Height 15.7mm. Output: 1NO - one make contact - terminals: 11(7)/21(4)-14(8)/24(5); AC1 - 16A / 250V; DC1 - 16 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 24 V DC. Dimensions: 29 x 12.7 x 15.7mm. IP 40. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw. Note: in the relay there are galvanic connections of terminals 11 with 21 and 14 with 24.
