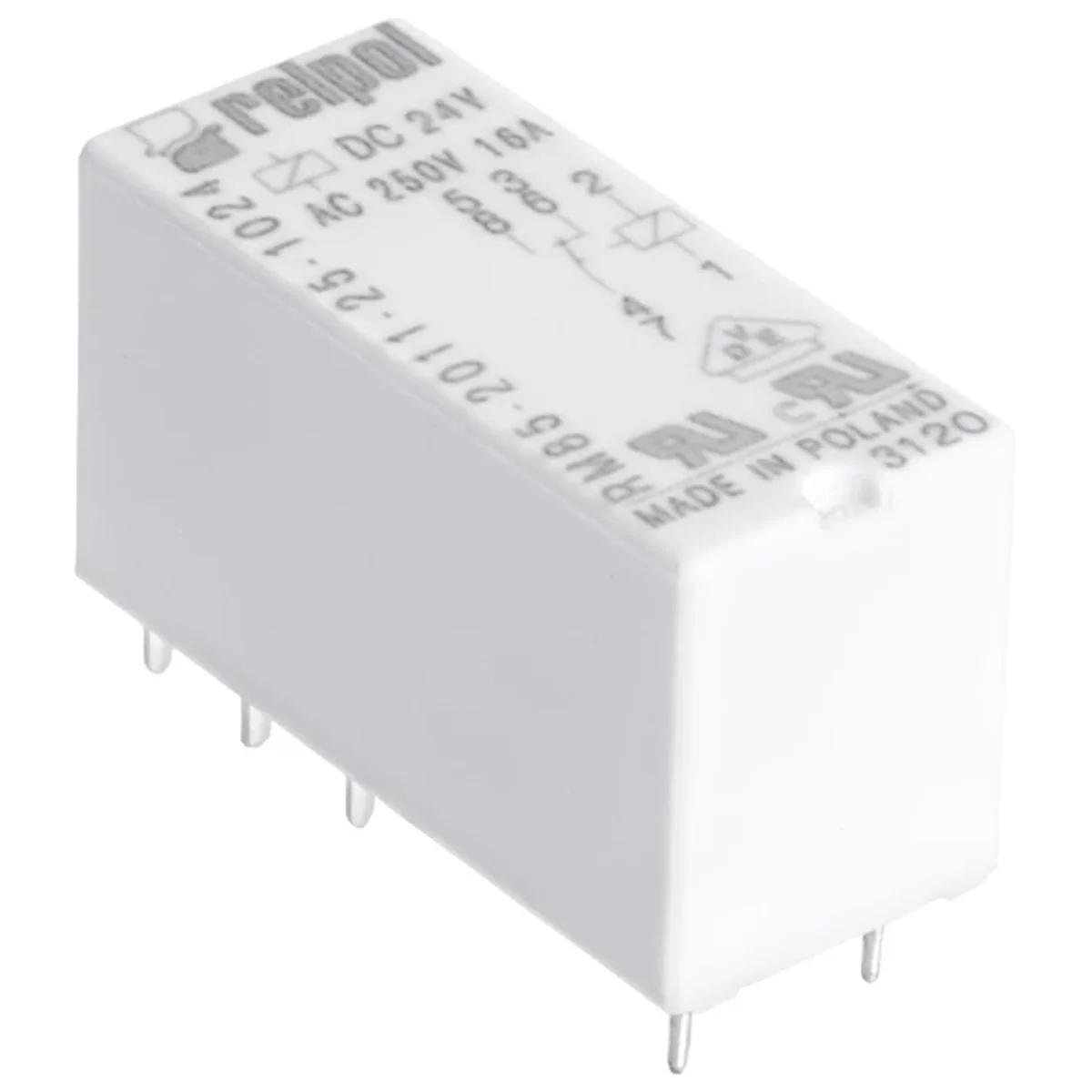

Electromagnetic relay RM85-2011-35-5024 miniature for printed circuit and plug socket 604651

local index:
APE157RELP
Catalog No:
604651
Manufacturer: RELPOL
Level of security: IP67
Pieces in the package: 20
Height [mm]: 15.7
Price:
107,48 €
gross / pkg.
(including VAT 23%)
5,37 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 1P - one changeover contact - terminals: 11(7)/21(4)-12(6)/22(3)-14(8)/24(5); AC1 - 16A / 250V; DC1 - 16 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 24 V AC. Dimensions: 29 x 12.7 x 15.7mm. IP 67. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw. Note: in the relay there are galvanic connections of terminals 11 with 21, 12 with 22 and 14 with 24.

Technical data

  • Level of security
    IP67
  • Height [mm]
    15.7
  • Pieces in the package
    20

Other technical data

  • Type of electric connection
    PCB connection
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP67
  • Height
    15.7 mm
  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    1
  • Complete with socket
    No
  • Width
    12.7 mm
  • Depth
    29 mm
