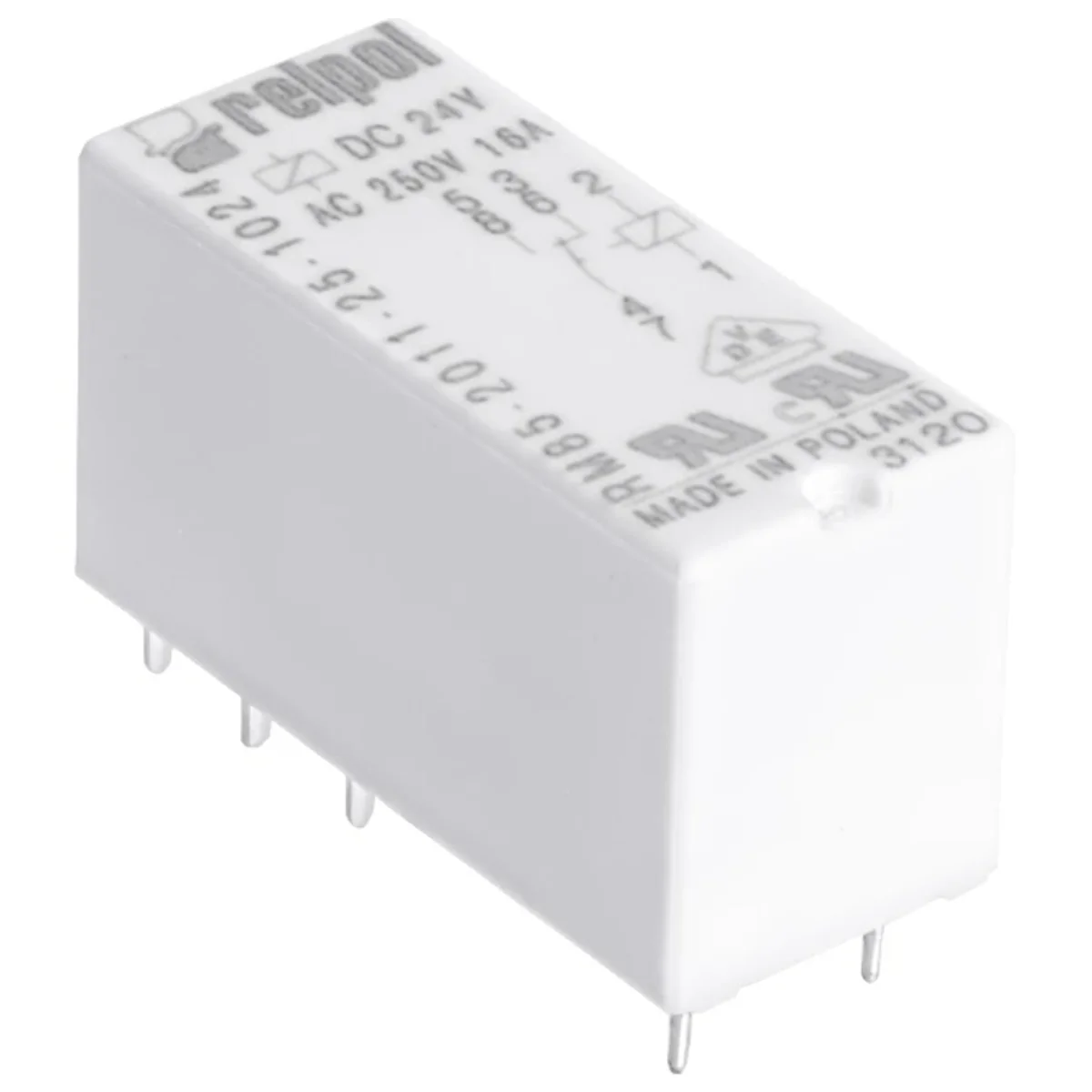

Electromagnetic relay RM85-2011-35-1012, miniature, for PCB and plug-in socket. 600020

Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 1P - one changeover contact - terminals: 11(7)/21(4)-12(6)/22(3)-14(8)/24(5); AC1 - 16A / 250V; DC1 - 16 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 12 V DC. Dimensions: 29 x 12.7 x 15.7mm. IP 67. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw. Note: in the relay there are galvanic connections of terminals 11 with 21, 12 with 22 and 14 with 24.
