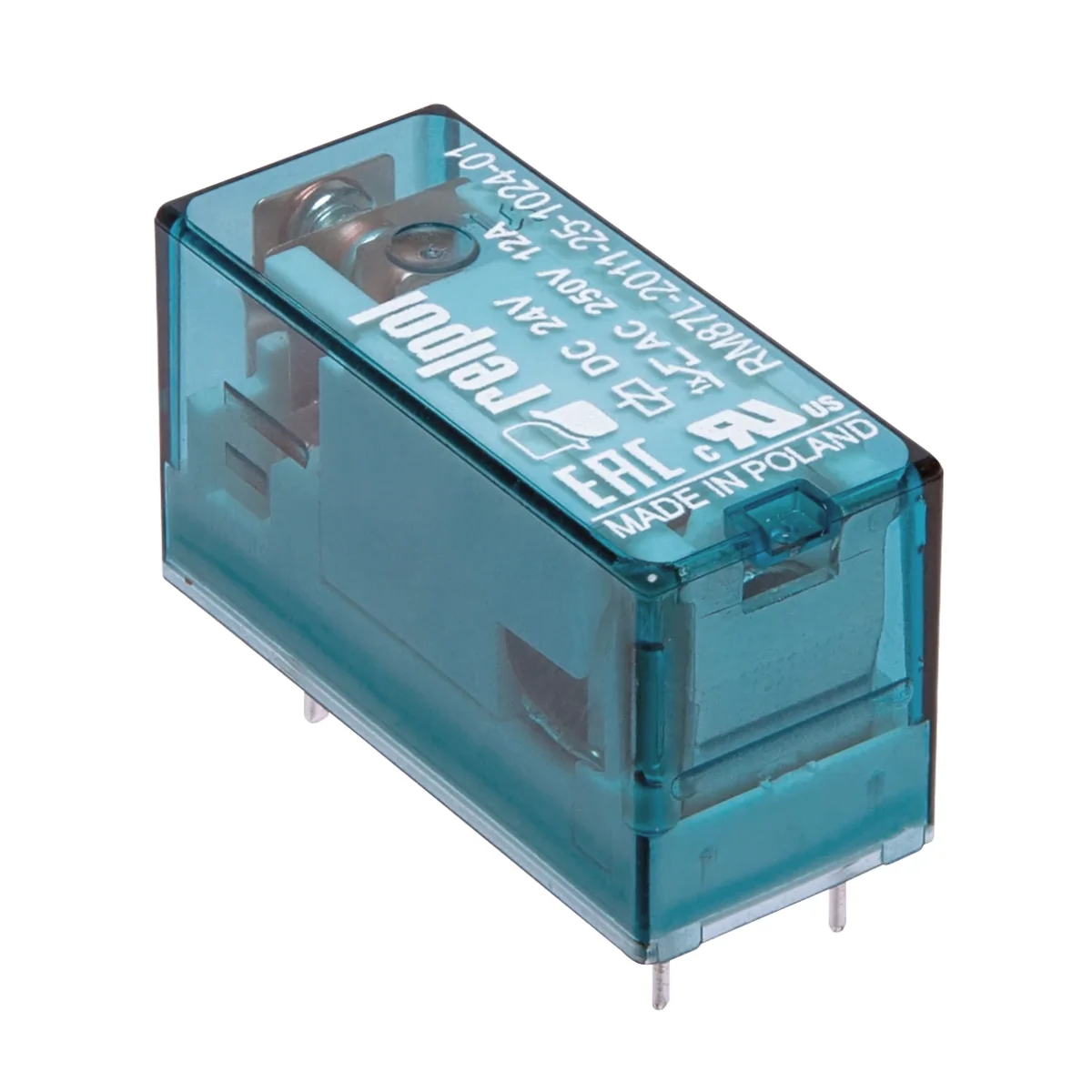

Electromagnetic relay RM85-2011-25-1024-01 miniature with transparent casing for printed circuit board and plug-in socket 859720

Electromagnetic relay, miniature with transparent housing, for PCB and plug-in socket. 5mm pitch. Height 15.7mm. Output: 1P - one changeover contact - terminals: 11(7)/21(4)-12(6)/22(3)-14(8)/24(5); AC1 - 16A / 250V; DC1 - 16 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 24 V DC. Dimensions: 29 x 12.7 x 15.7mm. Contact material: AgNi. IP 40. Socket mounting options: EC50, GD50, PW80 - for printing; GZP80 (push-in), GZT80, GZM80, GZS80, GZF80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw; GZMB80 - screwless socket for mounting on a 35 mm rail. Note: in the relay there are galvanic connections of terminals 11 with 21, 12 with 22 and 14 with 24.
