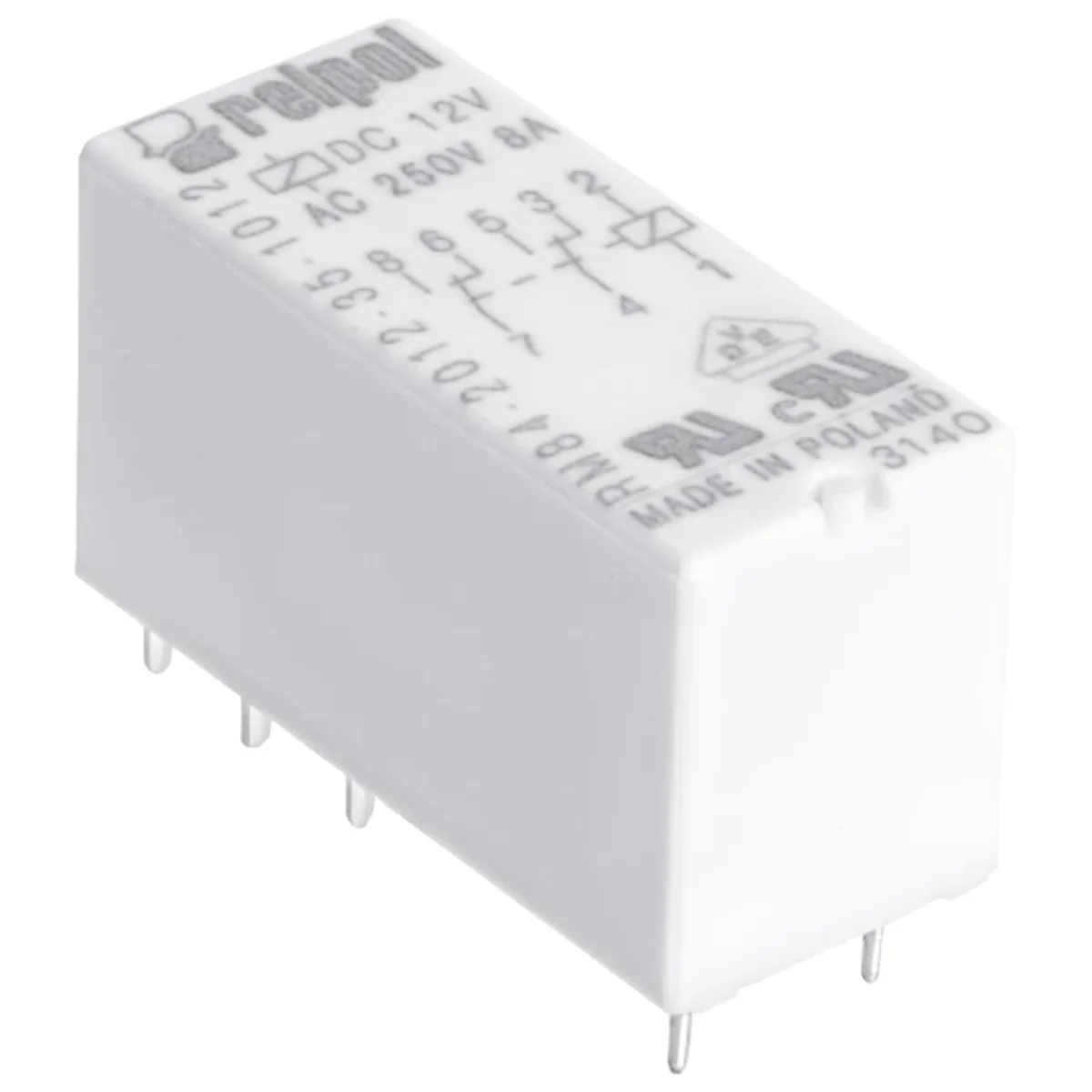

Electromagnetic relay RM84-2012-35-5120, miniature, for PCB and plug-in socket 604620
local index:
APE087RELP
Catalog No:
604620
Manufacturer:
RELPOL
Pieces in the package: 20
Price:
124,32 €
gross / pkg.
(including VAT 23%)
6,22 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 120 V AC. Dimensions: 29 x 12.7 x 15.7mm. IP 67. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw.
Technical data
-
Pieces in the package20
Other technical data
-
Type of electric connectionPCB connection
-
Rated control supply voltage AC 60 Hz120 ... 120 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP67
-
Height17.7 mm
-
Rated control supply voltage AC 50 Hz120 ... 120 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Complete with socketNo
-
Width13.2 mm
-
Depth29 mm
