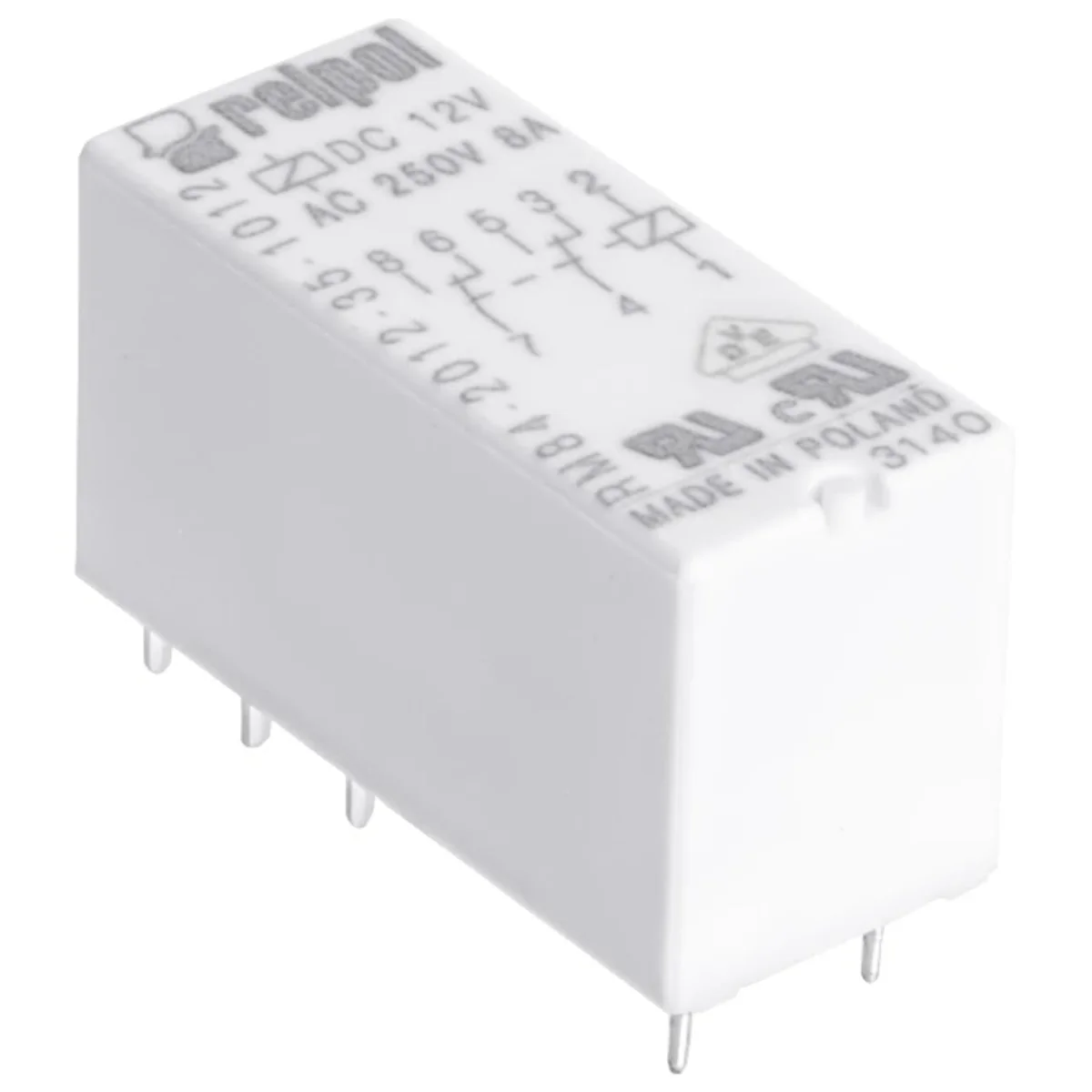

Electromagnetic relay RM84-2012-35-1024 miniature for printed circuit and plug socket 600336
local index:
APE502RELP
Catalog No:
600336
Price:
86,48 €
gross / pkg.
(including VAT 23%)
4,32 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 24 V DC. Dimensions: 29 x 12.7 x 15.7mm. IP 67. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw.
Technical data
-
Level of securityIP67
-
Height [mm]15.7
-
Pieces in the package20
Other technical data
-
Type of electric connectionPCB connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP67
-
Height17.7 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Complete with socketNo
-
Width13.2 mm
-
Depth29 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
