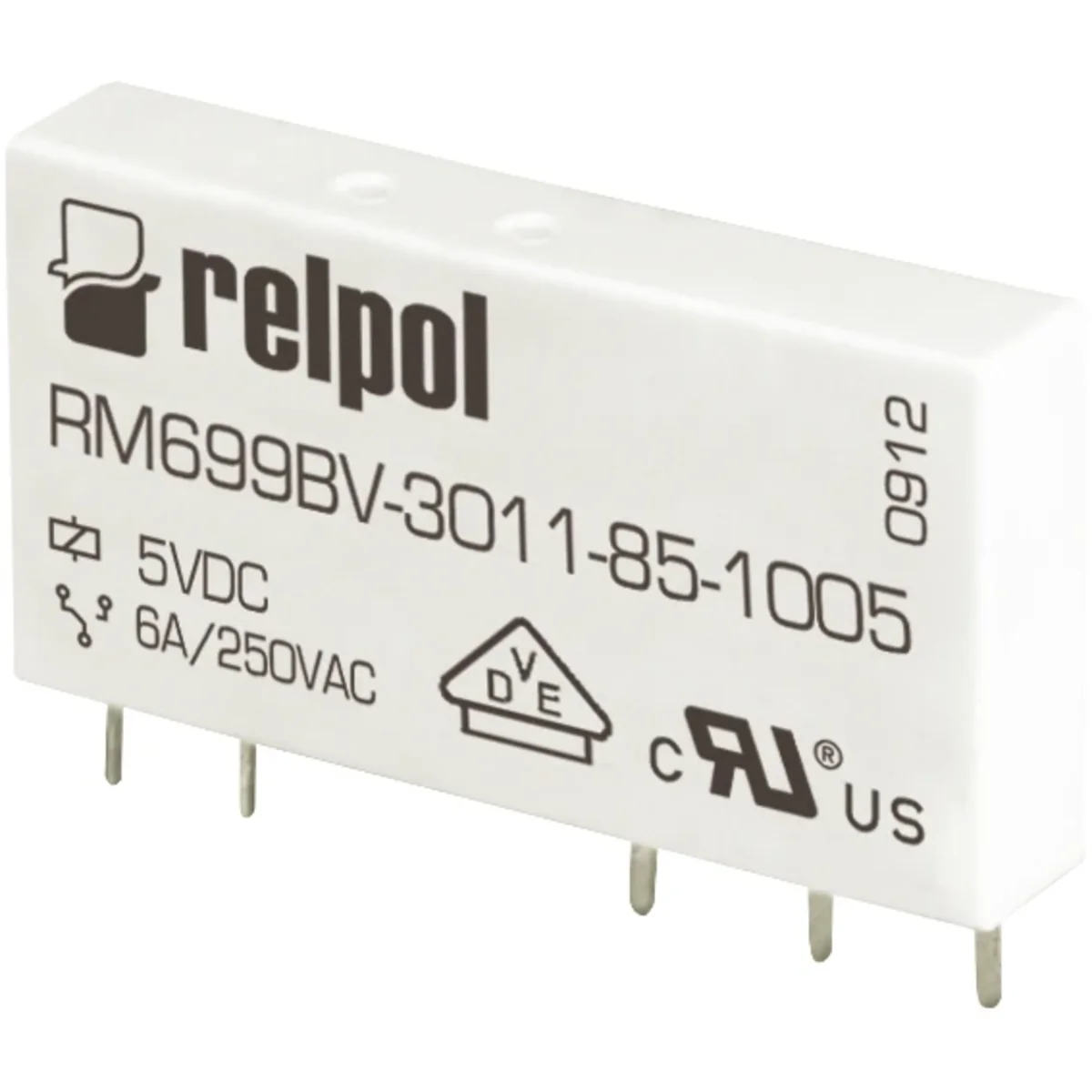

Electromagnetic relay RM699BV-3011-85-1060, miniature, horizontal version, for printed circuit 2613667

local index:
APE856RELP
Catalog No:
2613667
Manufacturer: RELPOL
Level of security: IP64
Height [mm]: 5
Price:
11,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, miniature, horizontal version, for printed circuit board. Height 5mm. Output: 1P - one changeover contact - terminals: 11-12-14; AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1 - A2, supply voltage Un - 60V DC. Dimensions: 15x28x5mm. Direct mounting on the print, PCB. IP 64.

Technical data

  • Level of security
    IP64
  • Height [mm]
    5

Other technical data

  • Type of electric connection
    PCB connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP64
  • Height
    15 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    60 ... 60 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    1
  • Complete with socket
    No
  • Width
    28 mm
  • Depth
    5 mm
