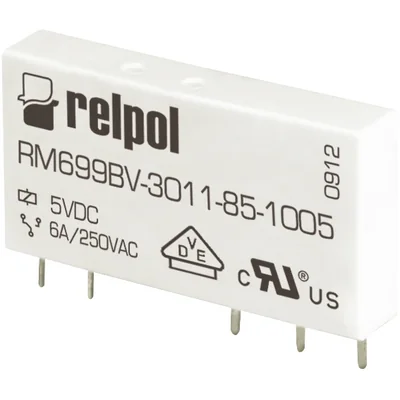

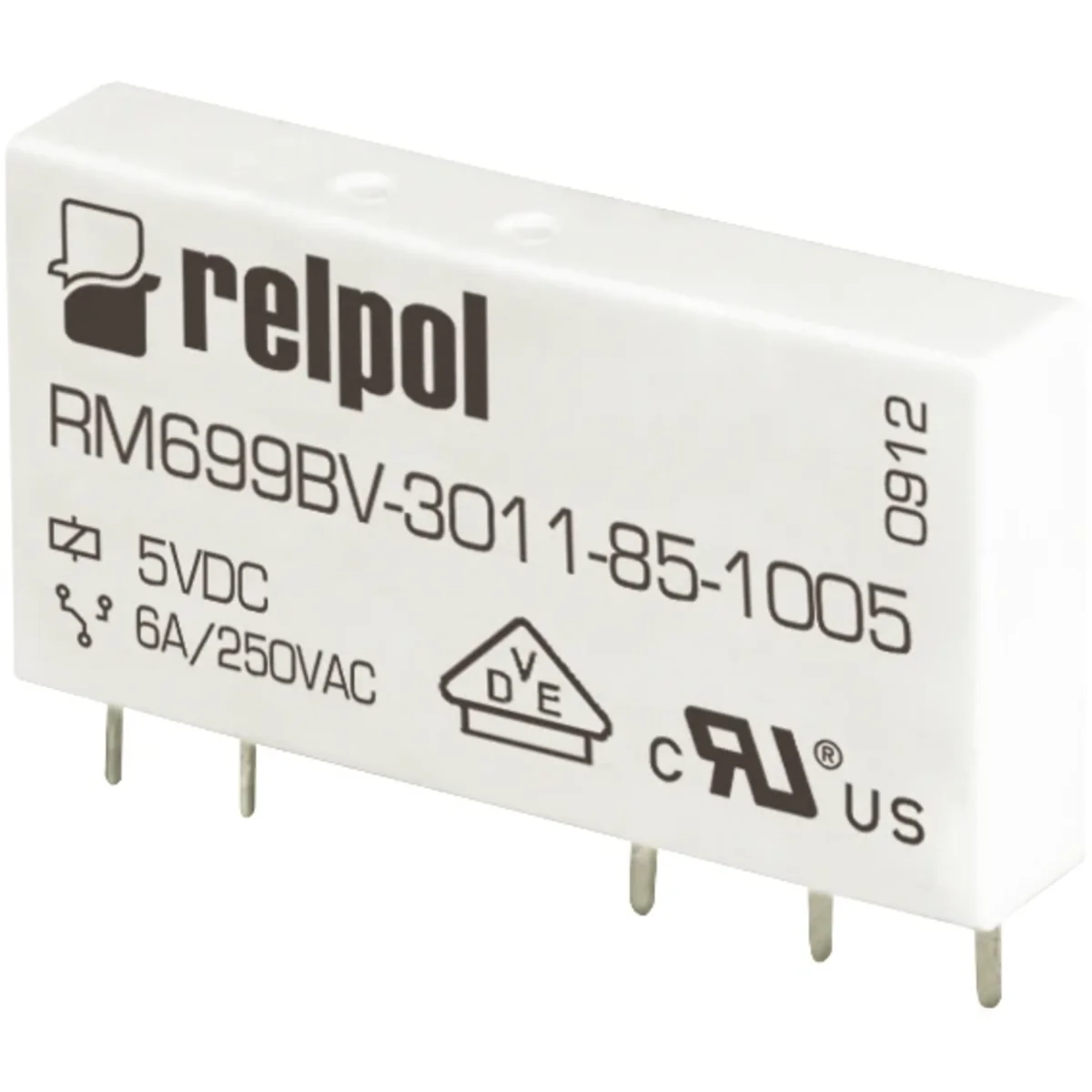

Electromagnetic relay RM699BV-3011-85-1012, miniature, horizontal version, for printed circuit 2613696
local index:
APE013RELP
Catalog No:
2613696
Price:
115,73 €
gross / pkg.
(including VAT 23%)
5,79 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, miniature, horizontal version, for printed circuit board. Height 5mm. Output: 1P - one changeover contact - terminals: 11-12-14; AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1 - A2, supply voltage Un - 12 V DC. Dimensions: 15x28x5mm. Direct mounting on the print, PCB. IP 64.
Technical data
-
Level of securityIP64
-
Height [mm]5
-
Pieces in the package20
Other technical data
-
Type of electric connectionPCB connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP64
-
Height15 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC12 ... 12 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
Complete with socketNo
-
Width28 mm
-
Depth5 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
