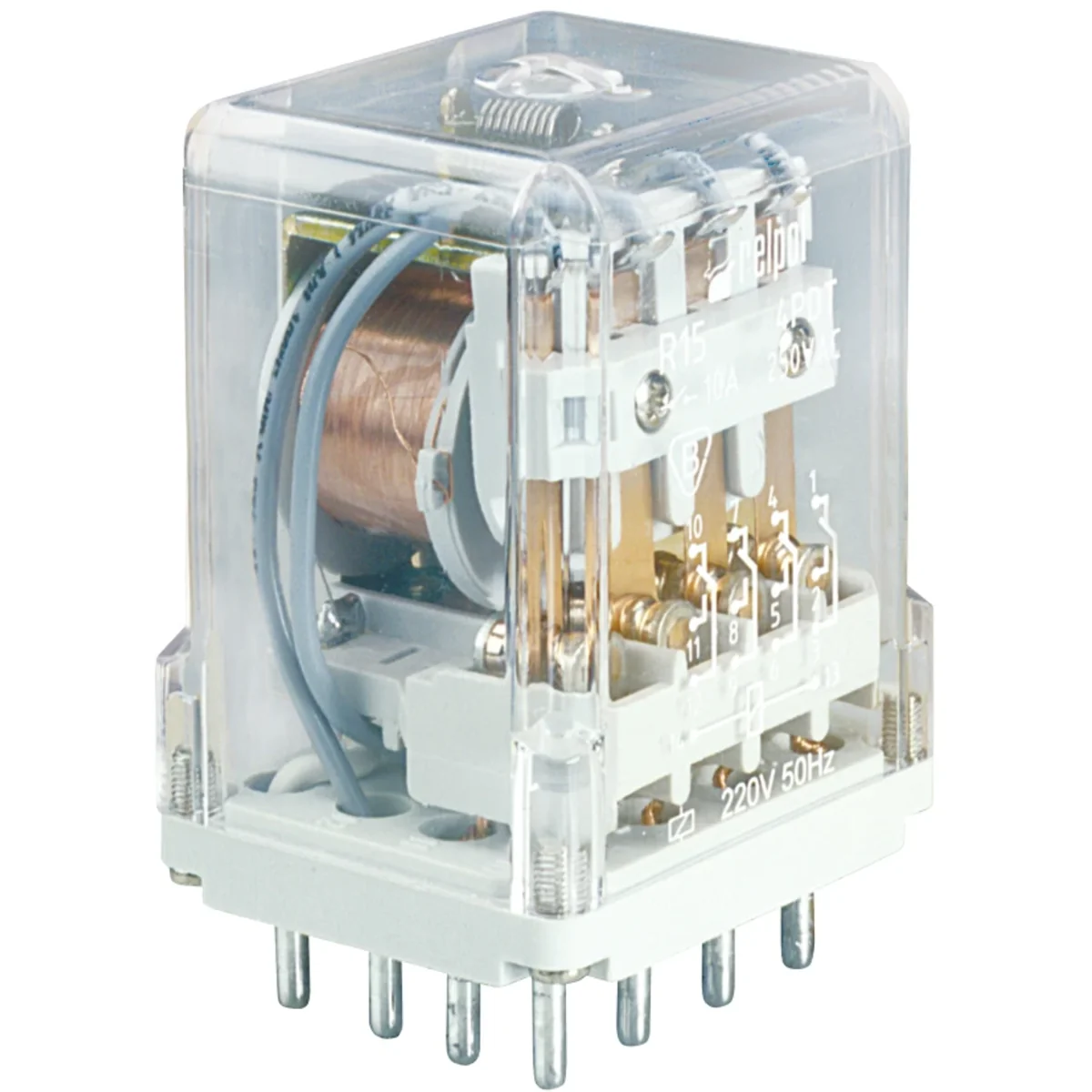

Electromagnetic relay R15-2014-23-3230 862846

local index:
APE315RELP
Catalog No:
862846
EAN code:
5900005225871
Manufacturer: RELPOL
Depth [mm]: 35
Pin configuration: 4P
Contact material: AgNi
Price:
23,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - small size, for plug socket.

Output: 4P - four changeover contacts - terminals: 11(3)-12(1)-14( 2); 21(6)-22(4)-24(5); 31(9)-32(7)-34(8); 41(12)-42(10)-44(11);

Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 230 V AC.

AC1 rated current: 10 A / 250 V AC

AC3 rated current: 0.37 kW

DC1 rated current: 10 A / 24 V DC

Rated contact voltage: 250V AC

Dimensions of the R15 4P set + GZ14U socket + GZ14 0737 clamp: 81 x 46 x 89.5 mm. Set - IP 00.

Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Depth [mm]
    35
  • Contact material
    AgNi
  • Type of voltage
    AC
  • Width [mm]
    42.5
  • Pin configuration
    4P
  • Coil voltage [V]
    230
  • How to connect
    For plug sockets
  • Height [mm]
    54.4
