Electromagnetic relay R15-2013-23-5230-WT industrial small size for plug socket 802874

local index:
APE148RELP
Catalog No:
802874
Manufacturer: RELPOL
Level of security: IP40
Width [mm]: 35
Price:
14,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 49 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

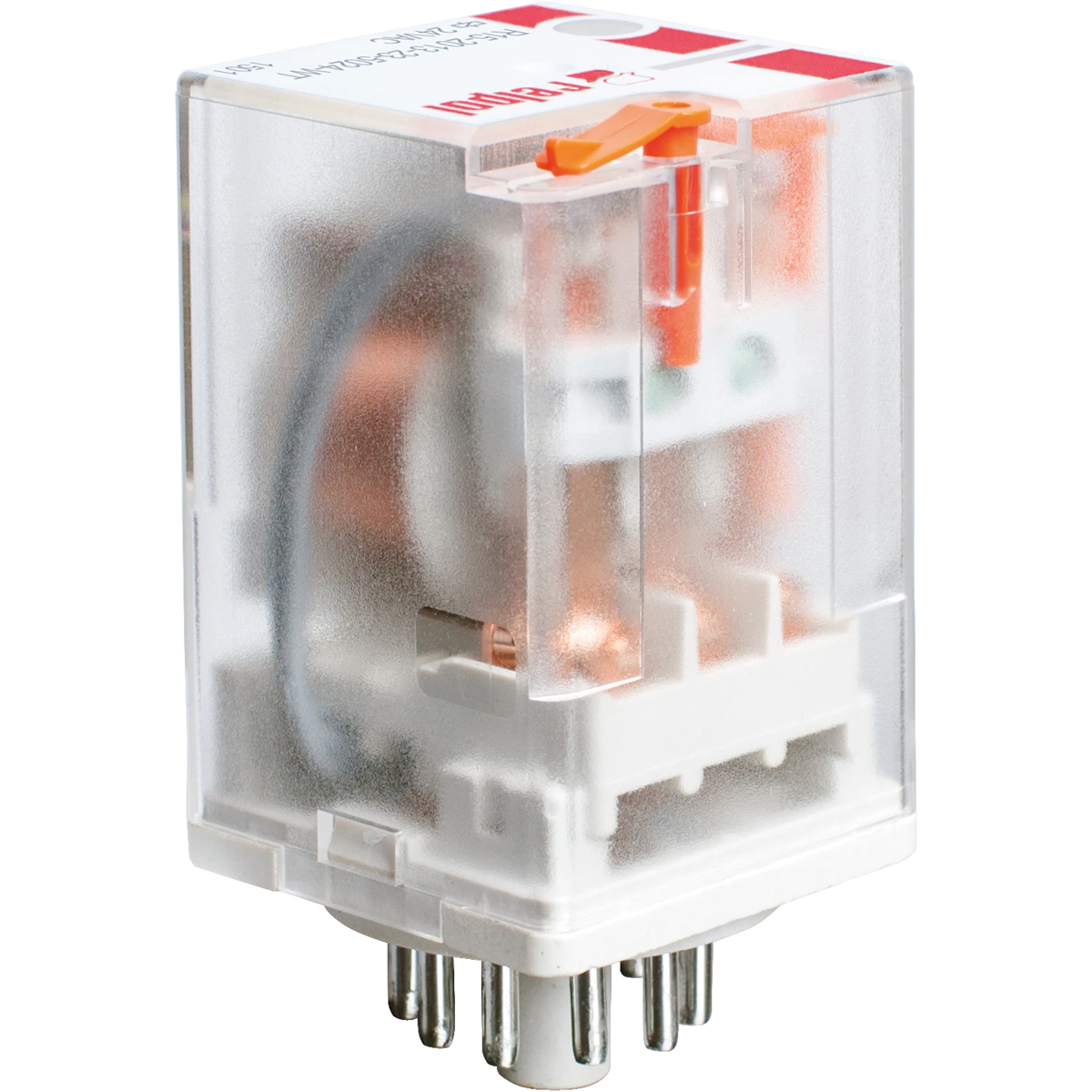

Electromagnetic relay, industrial - small size, for plug socket.

Width 35 mm.

Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V.

Input / coil - terminals: A1(2) - A2(10),

supply voltage Un - 230 V AC.

Mechanical indicator W,

T test button - with contact locking function.

Dimensions: 35 x 35 x 54, 4 mm. IP 40.

Contact material: AgNi.

Dimensions of the set R15 3P + socket PS11 (or PZ11) + clamp PZ11 0031: 68, 2 x 38 x 82, 6mm. Set - IP 20.

Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Level of security
    IP40
  • Width [mm]
    35

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as change-over contact
    3
  • Complete with socket
    No
  • Width
    35 mm
  • Depth
    54.4 mm
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    35 mm
