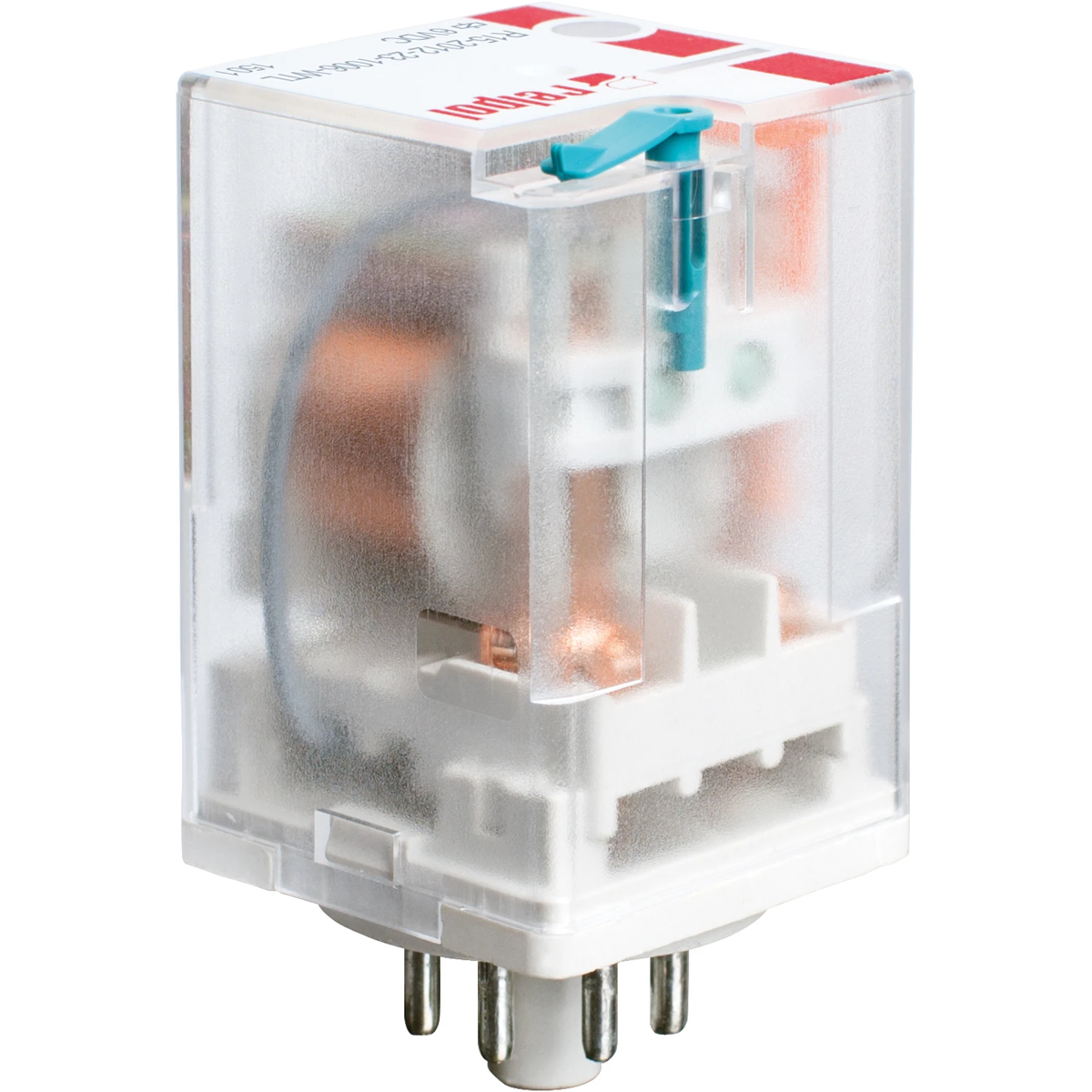

Electromagnetic relay R15-2013-23-1024-WT industrial small size for plug socket 802846

Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9);
AC1 - 10A / 250V;
DC1 - 10 A / 24 V.
Input / coil - terminals: A1(2) - A2(10),
supply voltage Un - 24 V DC.
Mechanical actuation indicator W,
T test button - with contact locking function.
Dimensions: 35 x 35 x 54, 4 mm. IP 40.
Contact material: AgNi.
Dimensions of the R15 3P set + PS11 (or PZ11) socket + PZ11 0031 clamp: 68, 2 x 38 x 82, 6 mm. Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket.
