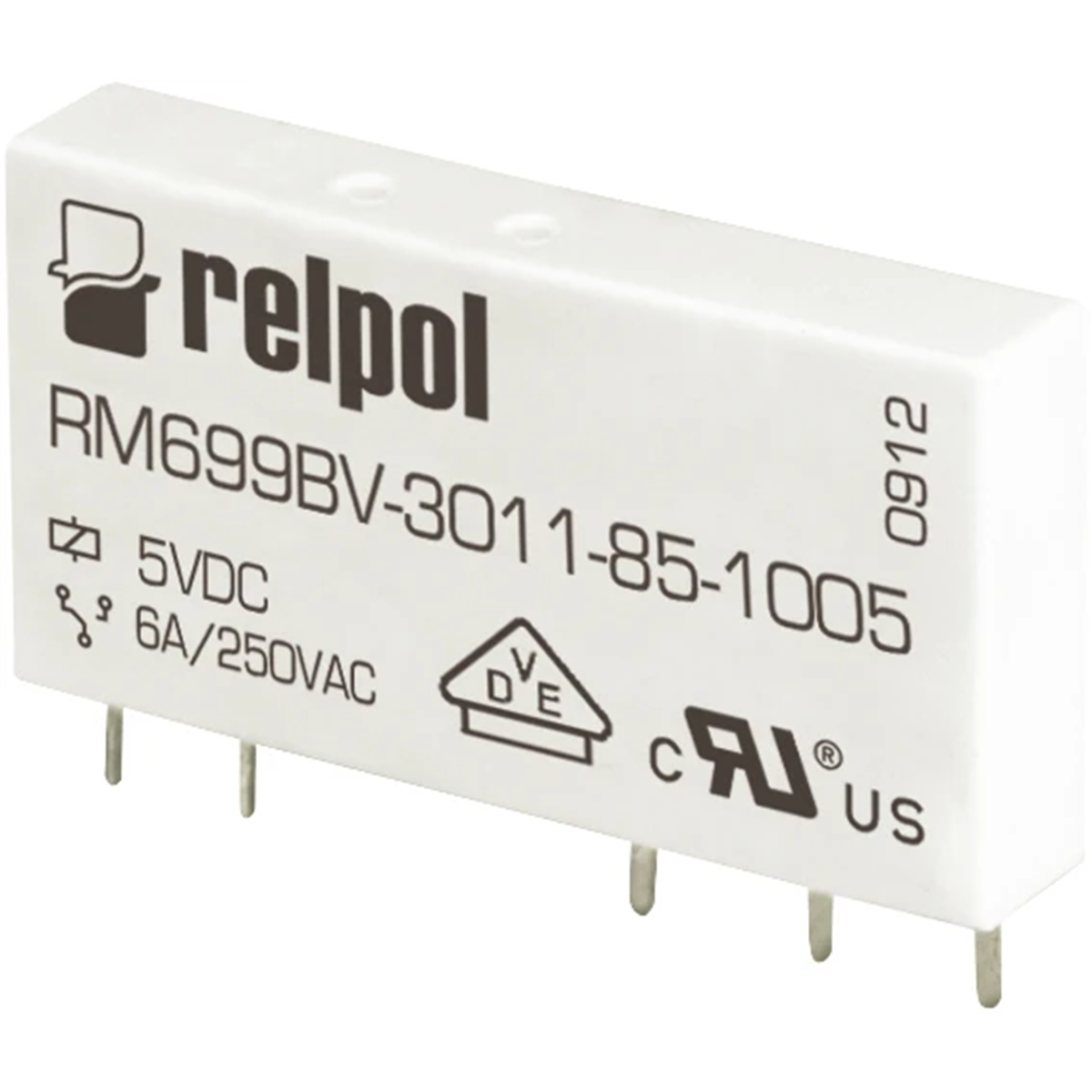

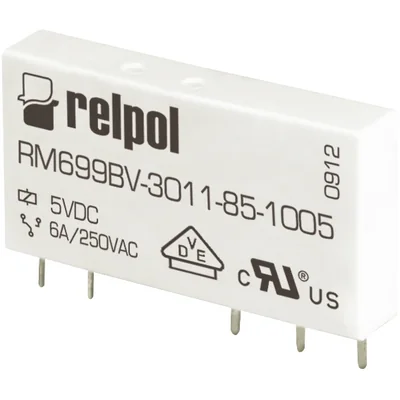

Electromagnetic relay, miniature RM699BV-3211-85-1024 2613705
local index:
APE630RELP
Catalog No:
2613705
Price:
9,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, miniature, horizontal version, for printed circuit board. Height 5mm. Output: 1P - one changeover contact, gold-plated contacts - terminals: 11-12-14; AC1 - 50mA / 30V; DC1 - 50 mA / 36 V. Input / coil - terminals: A1 - A2, supply voltage Un - 24 V DC. Dimensions: 15x28x5mm. Direct mounting on the print, PCB. IP 64. Contact material: AgSnO2+Au 3 µm. Note: it is possible to load the contact with a higher current at a higher voltage, but this causes faster destruction of the Au coating and changes in the minimum contact parameters.
Technical data
-
Level of securityIP64
-
Height [mm]5
Other technical data
-
Type of electric connectionPCB connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP64
-
Height15 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
Complete with socketNo
-
Width28 mm
-
Depth5 mm
