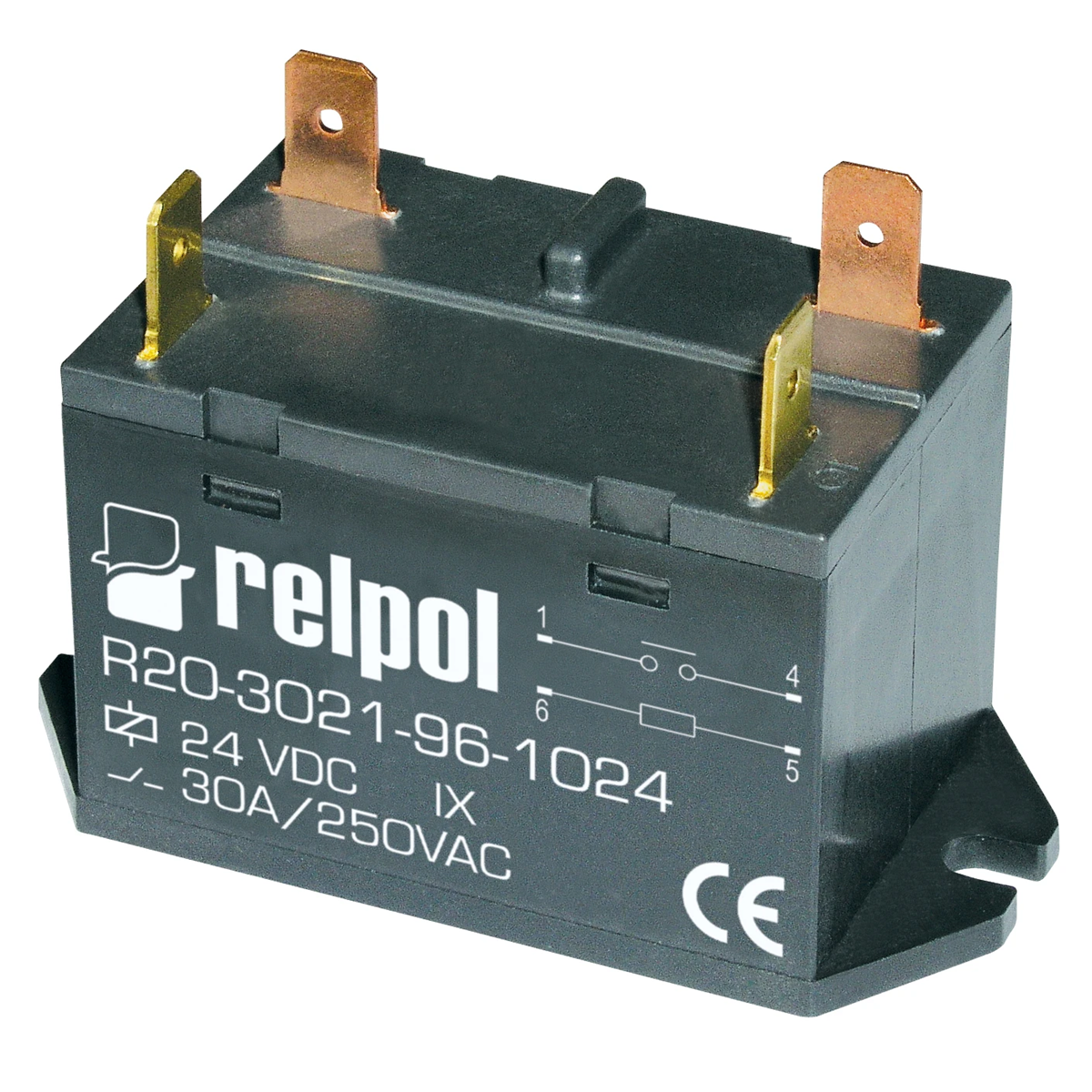

Electromagnetic relay, industrial - small-sized, in a housing 2611752

local index:
APE870RELP
Catalog No:
2611752
Manufacturer: RELPOL
Level of security: IP50
Pieces in the package: 20
Price:
208,05 €
gross / pkg.
(including VAT 23%)
10,40 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - small-sized, in a housing. For plug-in connections - Faston 250 (6.3x0.8). Output: 2Z - two closing contacts of the ?bridge? two-break - pins: 1-2; 3-4; AC1 - 25A / 250V; Input / coil - terminals: 5-6, supply voltage Un - 24 V DC. Dimensions: 33 x 67 x 45.25mm. Contact material: AgSnO2. Mounting on the mounting plate with two M4 screws. IP 50.

Technical data

  • Level of security
    IP50
  • Pieces in the package
    20

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    2
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP50
  • Height
    35 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    0
  • Complete with socket
    No
  • Width
    33 mm
  • Depth
    67 mm
