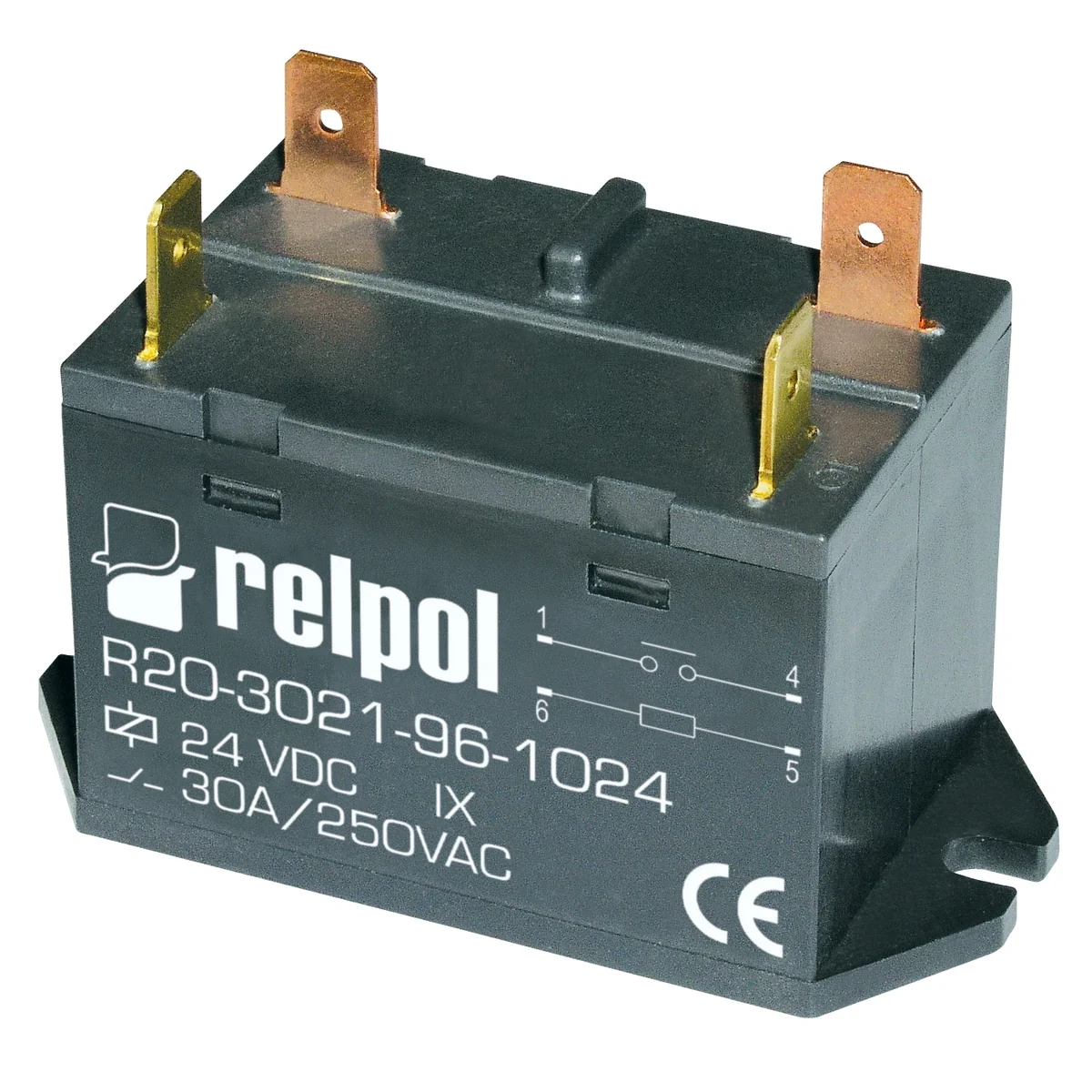

Electromagnetic relay, industrial - small size, in housing R20-3021-96-1024 2611749
local index:
APE881RELP
Catalog No:
2611749
Price:
179,03 €
gross / pkg.
(including VAT 23%)
8,95 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - small-sized, in a housing. For plug-in connections - Faston 250 (6.3x0.8). Output: 1NO - one bridge contact two-break - pins: 1-4; AC1 - 30A / 250V; Input / coil - terminals: 5-6, supply voltage Un - 24 V DC. Dimensions: 33 x 67 x 45.25mm. Contact material: AgSnO2. Mounting on the mounting plate with two M4 screws. IP 50.
Technical data
-
Level of securityIP50
-
Pieces in the package20
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact1
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP50
-
Height35 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact0
-
Complete with socketNo
-
Width33 mm
-
Depth67 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
