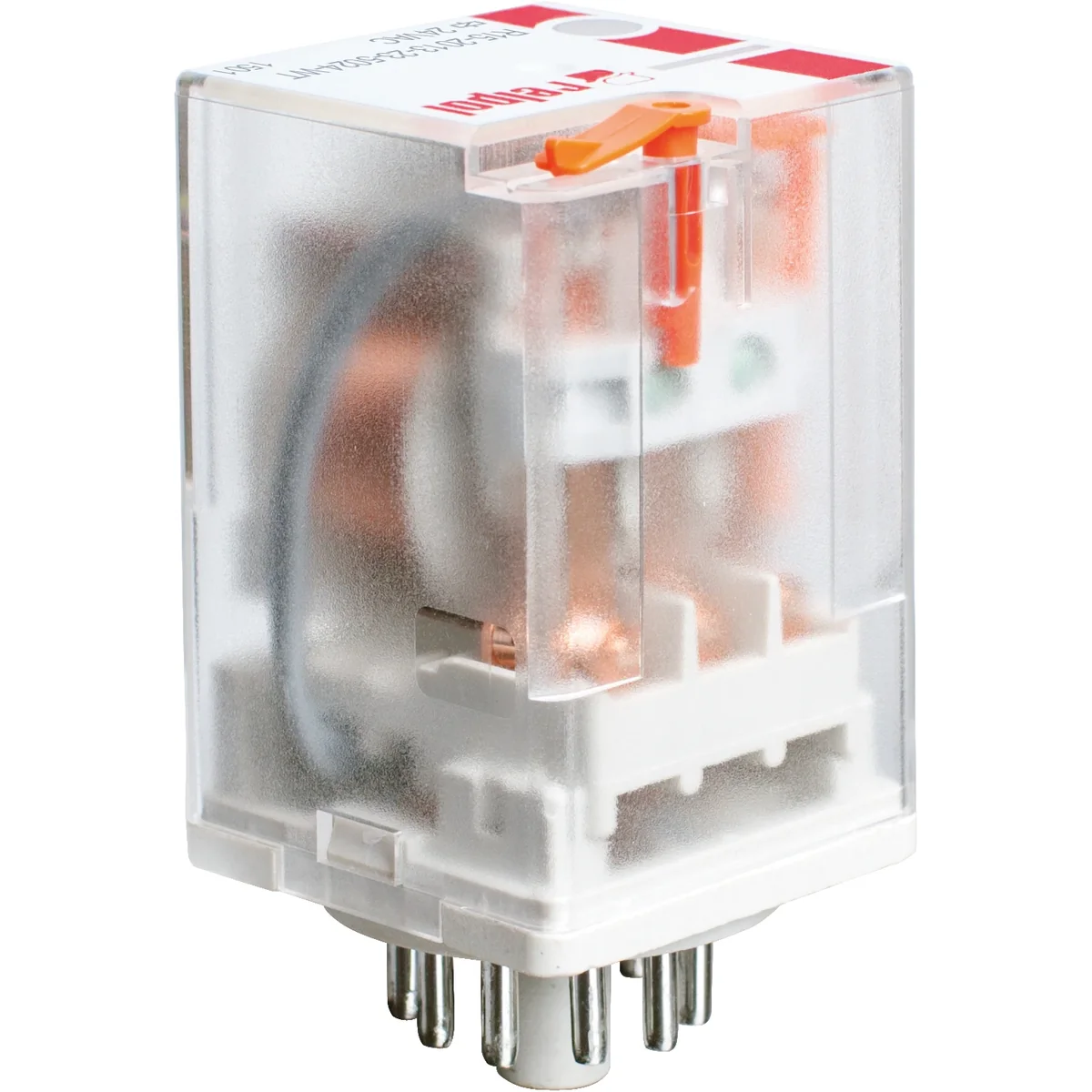

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-5110-WT 802868
local index:
APE140RELP
Catalog No:
802868
Price:
14,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - small size, for plug socket. Width 35mm. Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V. Input / coil - terminals: A1(2) - A2(10), supply voltage Un - 110 V AC. Mechanical indicator W, test button T - with contact blocking function. Dimensions: 35x35x54.4mm. IP 40. Contact material: AgNi.
Technical data
-
Level of securityIP40
-
Width [mm]35
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz110 ... 110 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as change-over contact3
-
Complete with socketNo
-
Width35 mm
-
Depth54.4 mm
-
Rated control supply voltage AC 50 Hz110 ... 110 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height35 mm
