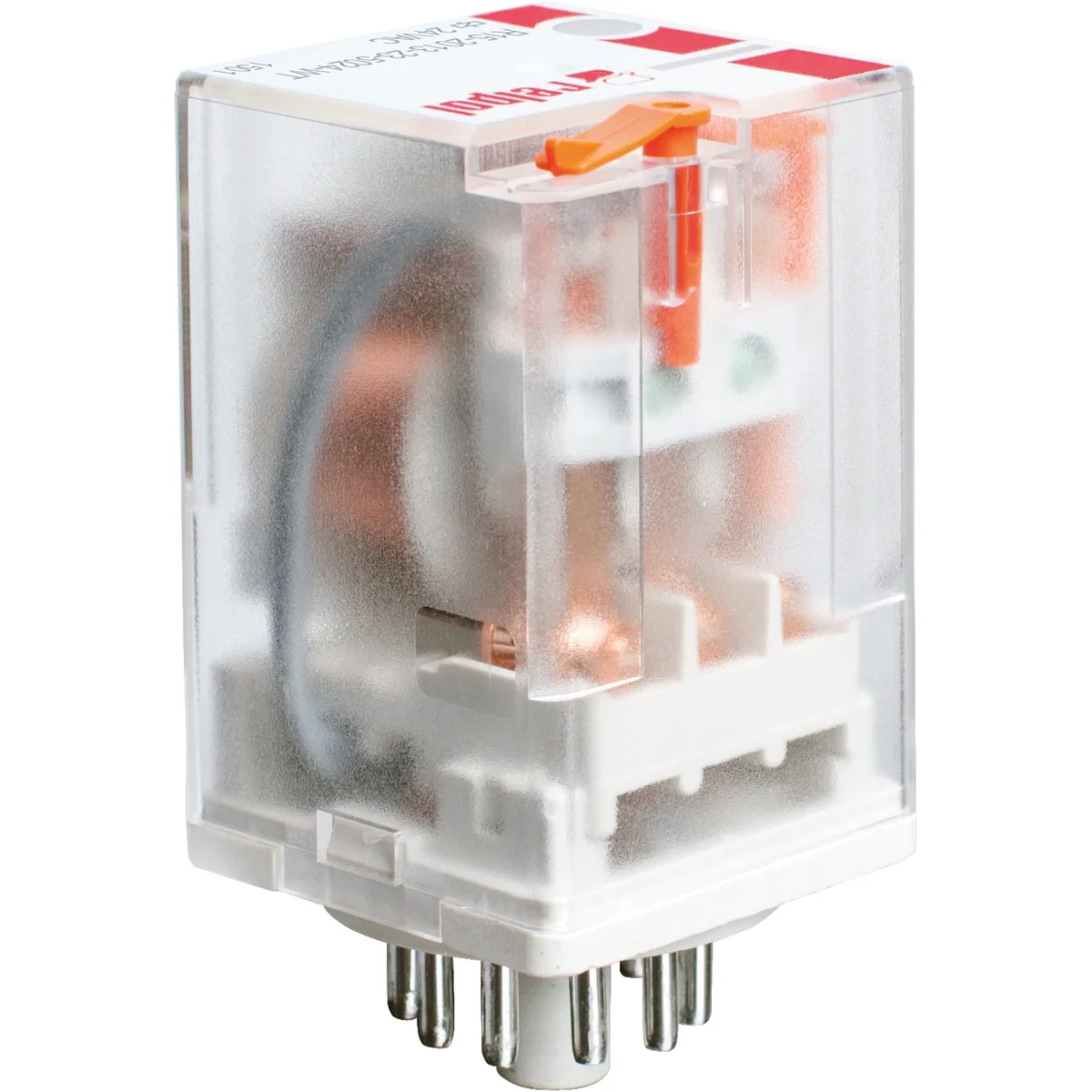

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-5024-WTL 804645

Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V.
Input / coil - terminals: A1(2) - A2(10),
supply voltage Un - 24 V AC.
Mechanical actuation indicator W,
test button T - with contact blocking function,
red LED indicator L.
Dimensions: 35 x 35 x 54.4 mm. IP 40.
Contact material: AgNi.
Dimensions of the R15 3P set + PS11 (or PZ11) socket + PZ11 0031 clamp: 68.2 x 38 x 82.6 mm. Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket.
