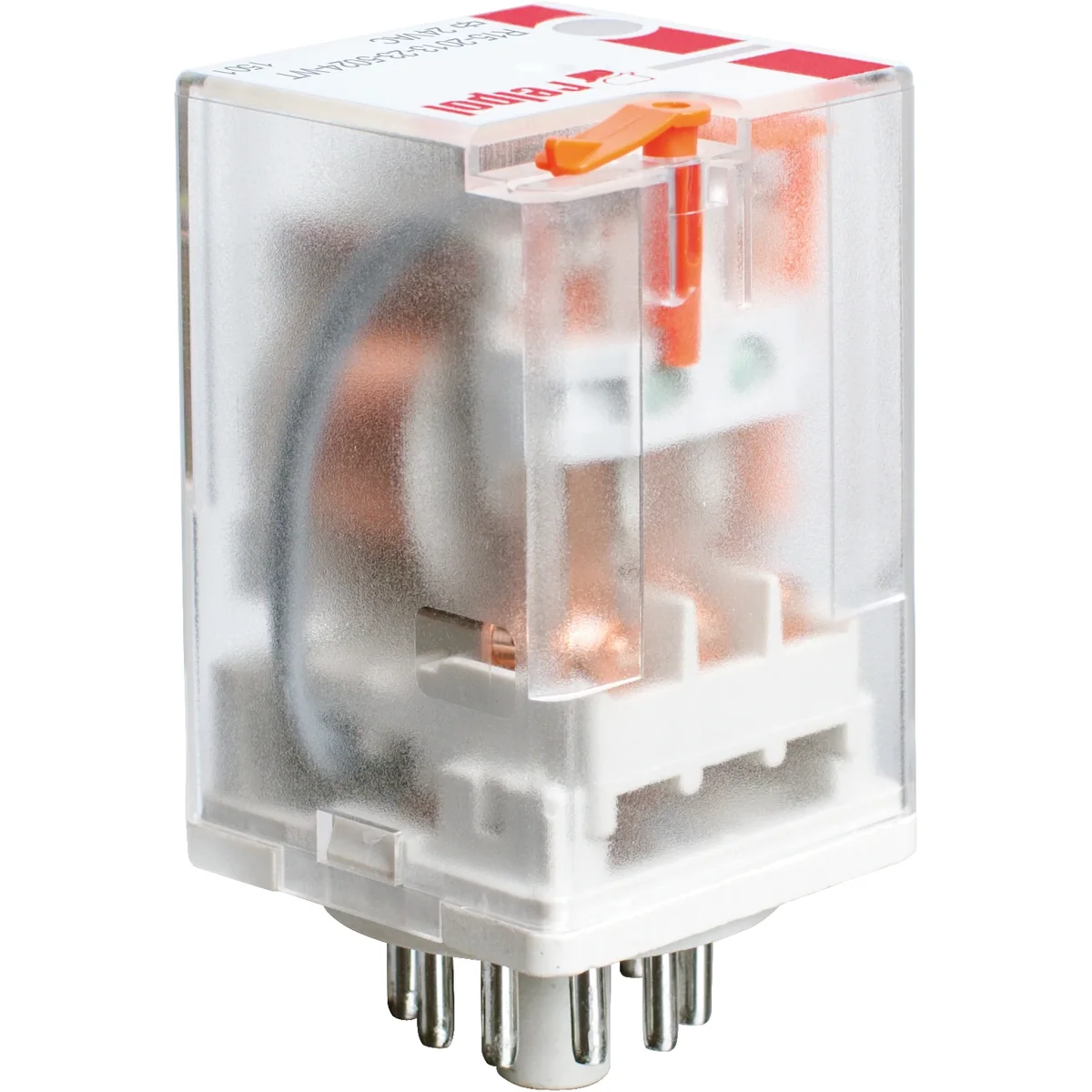

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-5024-WT 802865
local index:
APE150RELP
Catalog No:
802865
Price:
134,19 €
gross / pkg.
(including VAT 23%)
13,42 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V.
Input / coil - terminals: A1(2) - A2(10), supply voltage Un - 24 V AC.
Activation indicator mechanical W,
test button T - with contact locking function.
Dimensions: 35 x 35 x 54, 4 mm. IP 40.
Contact material: AgNi.
Dimensions of the set R15 3P + socket PS11 (or PZ11) + clamp PZ11 0031: 68, 2 x 38 x 82, 6mm. Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket. Data
Technical data
-
Level of securityIP40
-
Pieces in the package10
-
Width [mm]35
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as change-over contact3
-
Complete with socketNo
-
Width35 mm
-
Depth54.4 mm
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height35 mm
