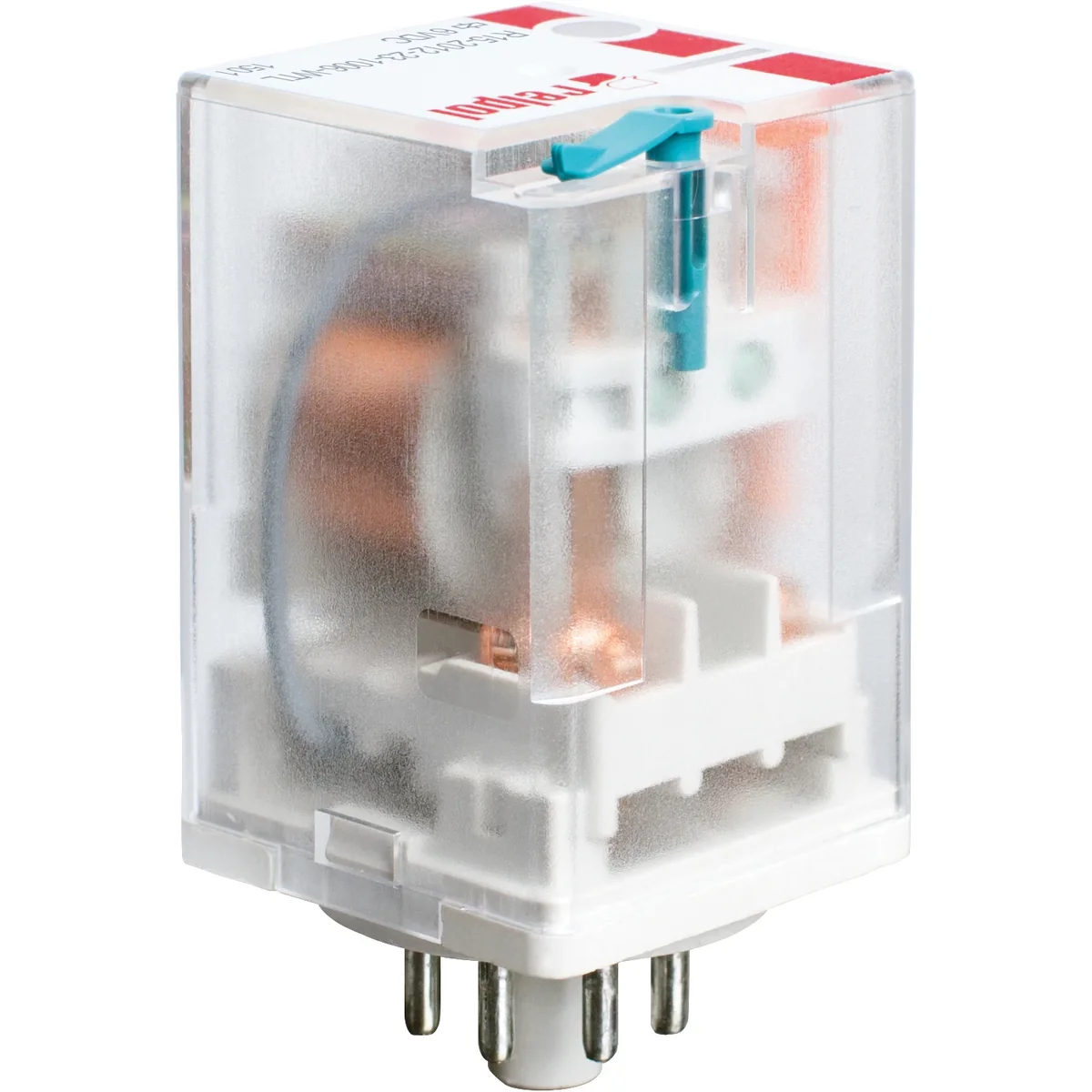

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-1220-WT 802863

Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V.
Input / coil - terminals: A1(2) - A2(10),
supply voltage Un - 220 V DC.
Mechanical indicator W,
T test button - with the function of blocking contacts.
Dimensions: 35 x 35 x 54.4 mm. IP 40.
Contact material: AgNi.
Dimensions of the R15 3P set + PS11 (or PZ11) socket + PZ11 0031 clamp: 68, 2 x 38 x 82, 6 mm. Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket.
