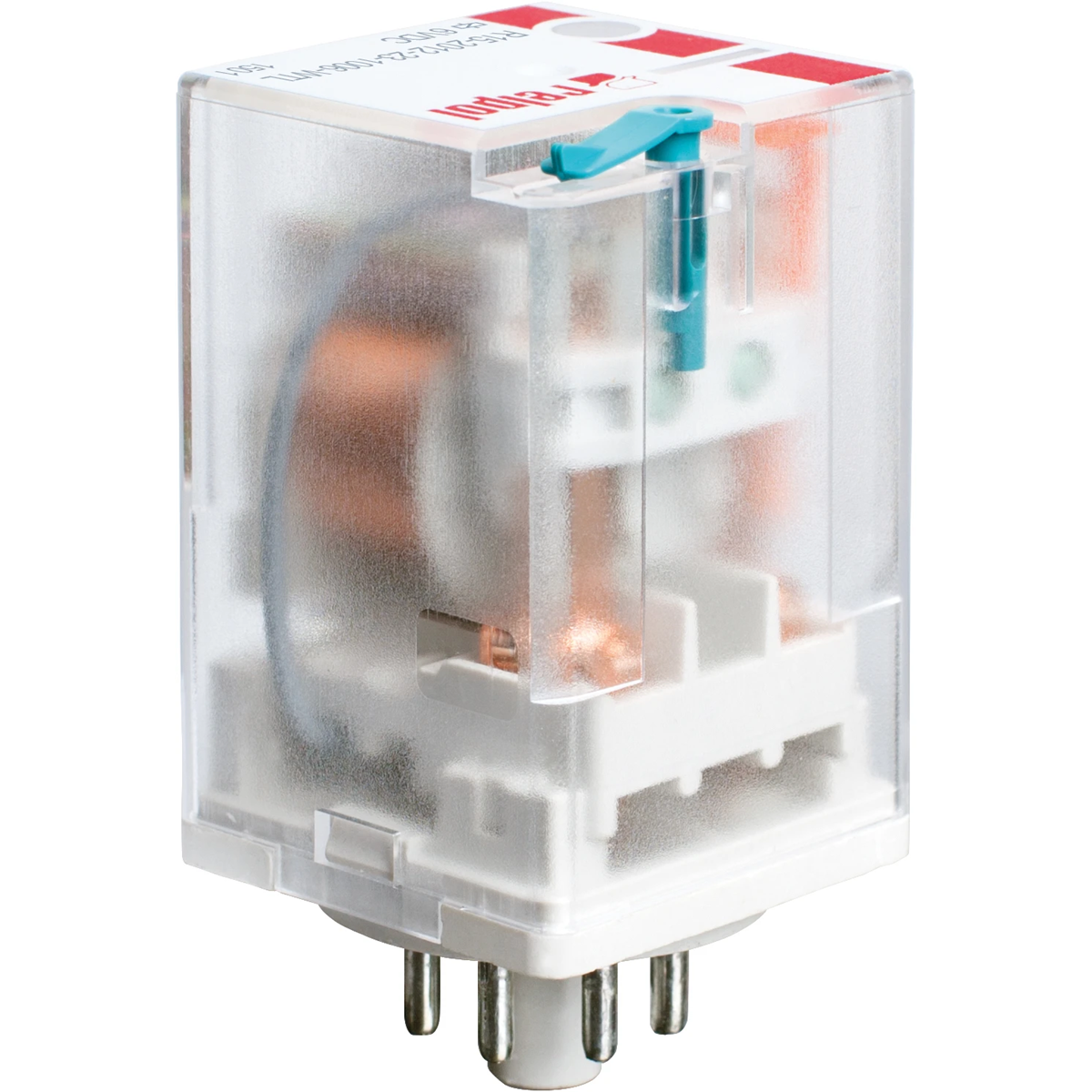

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-1024-WTD 804604
local index:
APE169RELP
Catalog No:
804604
Price:
18,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay, industrial - small size, for plug socket. Width 35mm. Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V. Input / coil - terminals: (+)A1(2) - (-)A2(10), supply voltage Un - 24 V DC. Mechanical indicator W, test button T - with contact blocking function, surge suppression diode D. Dimensions: 35 x 35 x 54, 4 mm. IP 40. Contact material: AgNi.
Technical data
-
Level of securityIP40
-
Width [mm]35
Other technical data
-
Type of electric connectionPlug-in connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP40
-
Height35 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact3
-
Complete with socketNo
-
Width35 mm
-
Depth54.4 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
